Alloy steel body is made by material ASTM4140 (42CrMoA), heat treatment with HRC38-42 hardness, providing high toughness and wearable character.
Made from low press sintered carbide with suitable grades selected according to target projects to ensure superior performance during working.
Adaptable to machines with high feed rates, long service life, and short tool changing times. Suitable for surface, underground mining, and tunneling.

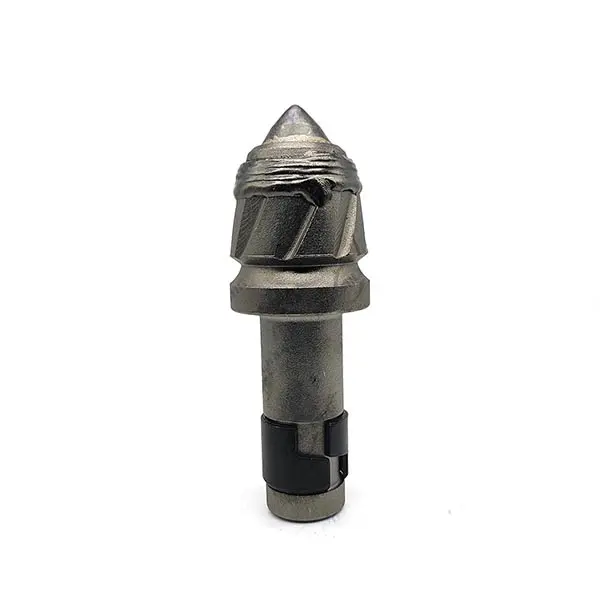

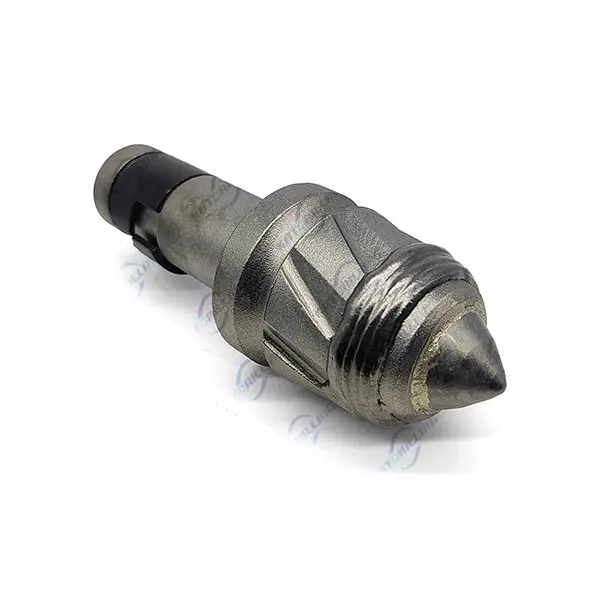

Our products include all kinds of round cutter bits and flat cutter bits for coal excavating machines. Range includes: U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, S160, S200, B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73, and coal bolting rods.
| General Specifications | |
|---|---|
| Product Name | Coal Cutting Tools |
| Description | Rock drilling tools, construction drilling tools, mining tools, road milling tools, shield cutters. |
| Material | Carbide steel |
| MOQ | 100PCS |
| Diameter Range | 19mm - 70mm |
| Application | Mining and drilling operations |
| Color | According to customer request |
Our products serve as high-quality replacements for Kennametal specifications:
| Category | Model | Height (mm) | Diameter (mm) | Alloy size (mm) | Sleeve Dia (mm) |
|---|---|---|---|---|---|
| Shearer Pick | U47 | 157 | Φ64 | Φ19 / Φ14 | Φ30 |
| U82 | 152 | Φ50 | Φ22 / Φ19 | Φ30 | |
| U85 | 161 / 195 | Φ50 / Φ55 | Φ16 | Φ30 / Φ35 | |
| U95 | 128.5 - 182.5 | Φ54 | Φ23 | Φ35 | |
| Roadheader Pick | S100 | 141 / 143 | Φ53 / Φ44.5 | Φ22 / Φ13 / Φ12 | Φ33.7 |
| S135 | 155 - 166.5 | Φ64 / Φ62 / Φ65 | Φ25 / Φ23 | Φ38 / Φ35 | |
| S160 | 149 / 150 | Φ61 / Φ65 | Φ27 / Φ22 / Φ17 | Φ30 | |
| Rotary Excavator | C31/25-12H | 118 | Φ33 | Φ12 | Φ25 |
| C50/30-19H | 130.5 | Φ50 | Φ19 | Φ30 | |
| C55/30-25H L | 150 | Φ55 | Φ25 | Φ30 |
