High-Quality COP1440,COP1638, COP1838 Shank Adapter-525mm Quotes, Pricelist

SHANDONG KAT DRILLING TOOLS offers a range of high-quality shank adapters, including the COP1432, COP1440, COP1532, COP1550, COP1638, COP1838, and COP223These shank adapters are designed to provide a reliable and secure connection between the drilling tool and the rock drill, ensuring efficient and precise drilling operations. The adapters are manufactured with high-grade materials and undergo rigorous quality testing to ensure superior performance and durability in demanding working conditions. With a focus on customer satisfaction and innovation, SHANDONG KAT DRILLING TOOLS is committed to providing top-notch products for the mining and construction industries. Whether it's for surface or underground drilling, our shank adapters are the ideal choice for maximizing productivity and minimizing downtime

Send Inquiry

Product Description

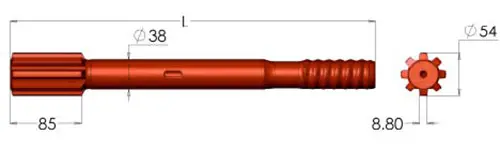

COP Series Shank Adapter Specifications

Providing high-performance COP1432, COP1440, COP1532, COP1550, COP1638, COP1838, and COP2238 shank adapters designed for durability and precision in demanding drilling environments.

Technical Data Sheet

Model Compatibility	Thread Type	Overall Length (L)		Front End Diameter		Product Number
Model Compatibility	Thread Type	mm	In.	mm	In.	Ref 1	Ref 2
COP 1432/1440 1532/1550 1638/1838/2238	R32	435	17.13	38	1.5	7803-3652-01	90516087
	R38	435	17.13	38	1.5	7804-3652-01	90516098
	T38	435	17.13	38	1.5	7304-3652-01	90516120
Extended Series	R32	525	20.67	38	1.5	7803-3656-02	90516088
	TC35	525	20.67	38	1.5	-	90516393
	R38	525	20.67	38	1.5	-	90516099
	T35	525	20.67	38	1.5	-	-
	T38	525	20.67	38	1.5	7304-3656-01	90516121

Frequently Asked Questions

Which rock drill models are these shank adapters compatible with?

These shank adapters are specifically designed for COP series rock drills, including models COP1432, COP1440, COP1532, COP1550, COP1638, COP1838, and COP2238.

What are the available thread types for these adapters?

We provide multiple thread options to suit different drilling needs, including R32, R38, T35, T38, and TC35 threads.

What are the standard lengths for the COP series shank adapters?

The adapters typically come in two standard overall lengths: 435mm (17.13 inches) and an extended version at 525mm (20.67 inches).

What is the front end diameter of these components?

All listed models feature a consistent front end diameter of 38mm, which is equivalent to 1.5 inches.

How can I identify the correct product number for my equipment?

You can refer to our technical data table which lists product numbers such as 7803-3652-01 or 90516087 corresponding to specific thread types and lengths.

Are these adapters suitable for high-impact drilling?

Yes, these shank adapters are manufactured to withstand high-frequency impacts and the rigorous conditions of modern hydraulic rock drilling.
