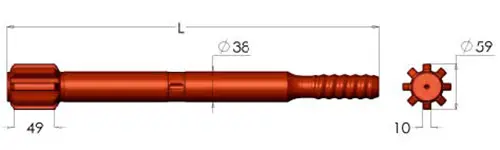

Shank Adapter for Sandvik HL500S, HL510S, HL510B, HL510LH
✓
High Compatibility: Specially designed for SANDVIK series including HL 500 S-38, 510 S-38, 510 B, and 510 LH models.
✓
Robust Engineering: Crafted for heavy-duty drilling performance and extended service life.
✓
Precise Fit: Ensures seamless energy transfer from the rock drill to the drill string.
Technical Specifications
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIA. |
Product No. |
| mm |
In. |
mm |
In. |
Ref 1 |
Ref 2 |
| R32 |
460 |
17.72 |
38 |
1.5 |
7803-7531-01 |
90516160 |
| T35 |
460 |
17.72 |
38 |
1.5 |
- |
90003519 |
| R38 |
460 |
17.72 |
38 |
1.5 |
7804-7531-01 |
90516170 |
| T38 |
460 |
17.72 |
38 |
1.50 |
7304-7531-01 |
90516186 |
| R38 |
500 |
19.69 |
38 |
1.5 |
7804-7536-01 |
90516508 |
| T38 |
500 |
19.69 |
38 |
1.5 |
7304-7536-01 |
- |
Frequently Asked Questions
Which Sandvik rock drill models are these adapters compatible with?
These shank adapters are specifically engineered for Sandvik HL500S, HL510S, HL510B, and HL510LH rock drill models.
What thread types are available for these shank adapters?
We offer a variety of thread types including R32, T35, R38, and T38 to suit different drilling requirements.
What are the standard lengths for these adapters?
The standard lengths provided are 460mm (17.72 inches) and 500mm (19.69 inches), depending on the specific product number.
What is the front end diameter of the HL500/HL510 series adapters?
The front end diameter for this series is consistently 38mm (1.5 inches).
How can I ensure I am ordering the correct part?
You can match your requirement using the Product No. reference (e.g., 7803-7531-01 or 90516160) listed in our technical specification table.
Are these adapters suitable for heavy-duty mining applications?
Yes, these shank adapters are designed to withstand the high-impact stresses of professional mining and construction drilling operations.
