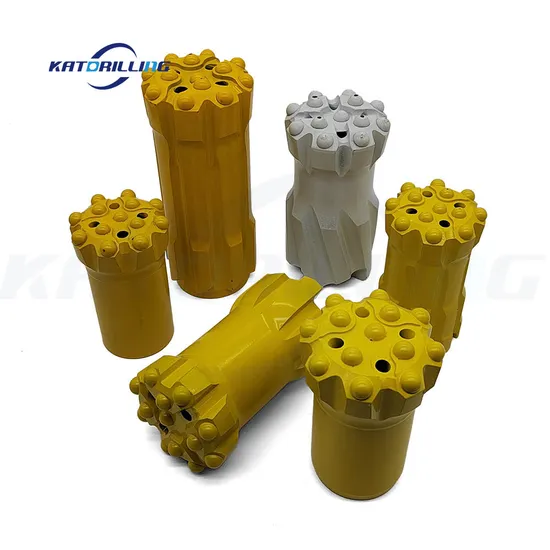

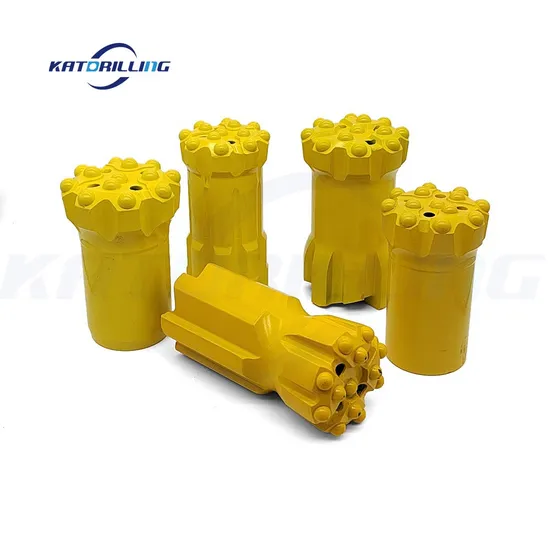

Bench and production drilling tools include rods, shank adapters, couplings and bits. We offer 9 main thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These components are fully compatible for use with button bits, cross bits, and reaming products.
Our comprehensive range of rock drilling tools spans from 1" rope thread equipment up to T60 thread equipment. These drill rods, tubes, and button bits are engineered to significantly improve drilling productivity on the market today.
| Button Bit Type | Carbide Dimension | Dimensions (D) | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | |||||||
| No. | mm | No. | mm | mm | in | Front | Side | |
| T38 Thread | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| T38 Thread | 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| T38 Thread | 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| T38 Thread | 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| T38 Thread | 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| Drop Center | 6 | 12.7 | 3/1 | 11 / 9.5 | 76 | 3" | 3 | 0 |
