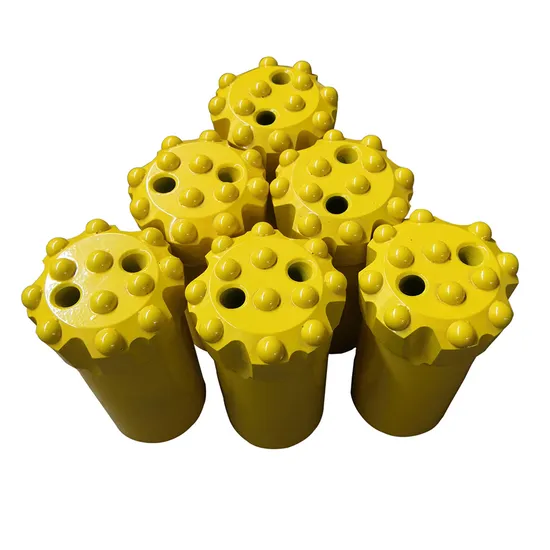

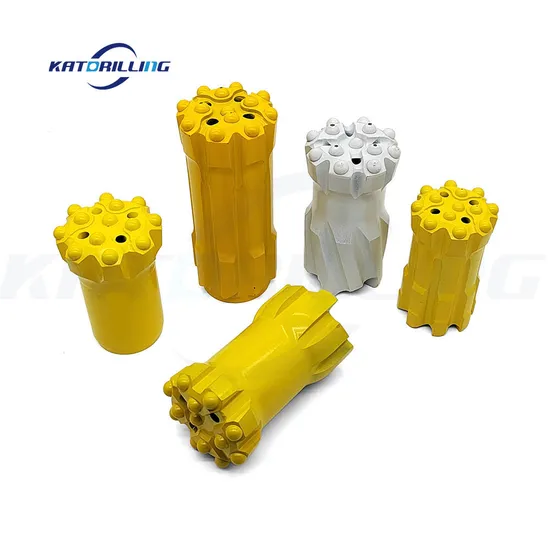

Our bench and production drilling tools include a comprehensive range of rods, shank adapters, couplings, and bits. Designed for high-intensity operations, these tools are compatible with 9 main thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68.
Our equipment ranges from 1" rope thread all the way up to T60 thread equipment. These drill rods, tubes, and button bits are engineered to improve productivity considerably in various rock conditions. They can be used effectively with button bits, cross bits, and reaming products.
| Type | Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | |||||||
| No. | mm | No. | mm | mm | inch | Front | Side | |
| Button Bit-T38 | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 | |
| 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 | |
| 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 | |
| Drop Center Design | ||||||||
| Drop Center | 6 | 11 | 3/1 | 11 / 9.5 | 70 | 2 3/4" | 3 | 0 |
| Drop Center | 8 | 14 | 4/3 | 12.7 / 11 | 102 | 4" | 4 | 0 |
