KAT DRILLING
1 / 5
Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide a wide range of threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. They are designed for use with button bits, cross bits and reaming products.
The comprehensive range of bench and production rock drilling tools includes everything from 1" rope thread equipment up to T60 thread equipment. These drill rods, tubes and button bits are engineered to improve productivity considerably in demanding environments.

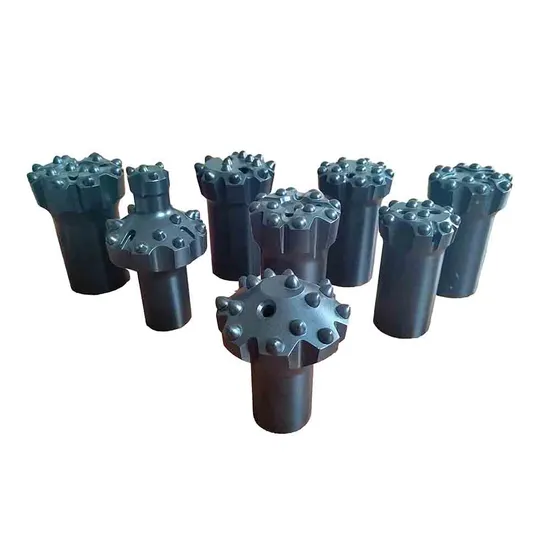

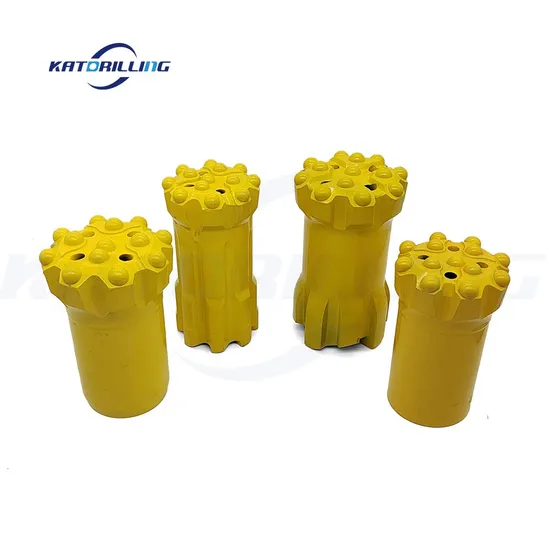

| Button Bit T38 | Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | |||||||
| No. | mm | No. | mm | mm | in | Front | Side | |
| Standard | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| Standard | 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| Heavy Duty | 6 | 11 | 3 | 9.5 | 57 | 2 1/4" | 1 | 2 |
| Heavy Duty | 6 | 12.7 | 3 | 11 | 64 | 2 1/2" | 1 | 2 |
| Large | 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| Large | 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| Drop Center | 6 | 10 | 3/1 | 10/9 | 64 | 2 1/2" | 3 | 0 |
| Drop Center | 6 | 12.7 | 3/1 | 11/9.5 | 76 | 3" | 3 | 0 |
