Product Overview
Application
Shank adapter for Montabert HC 50, HC 40 Hydraulic rock drill
Thread Options
R32, R38, T38, TC35
Main Usage
Bolting and Drifting
Technical Specifications
| MONTABERT - HC 40, 50 (MALE) |

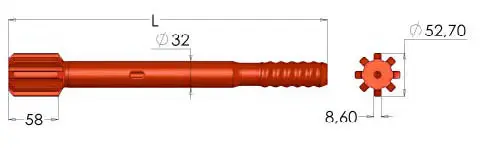

| IMAGE REFERENCE |
THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
| mm |
In. |
mm |
In. |
 |
R32 |
372 |
14.65 |
38 |
1.5 |
| R38 |
372 |
14.65 |
38 |
1.5 |
| T35 |
372 |
14.65 |
38 |
1.5 |
| T38 |
372 |
14.65 |
38 |
1.5 |
Product Display
Frequently Asked Questions
What models of rock drills is this shank adapter compatible with?
This shank adapter is specifically designed for Montabert HC 40 and HC 50 hydraulic rock drills.
What are the available thread types for this adapter?
We offer multiple thread configurations including R32, R38, T38, and TC35 to meet different drilling requirements.
What is the total length and diameter of the HC 40/50 shank?
The overall length is 372mm (14.65 inches), and the front-end diameter is 38mm (1.5 inches).
In which drilling operations can this adapter be used?
It is ideally suited for both Bolting and Drifting applications in mining and construction projects.
Is the product designed for high-impact hydraulic systems?
Yes, it is manufactured to withstand the high-frequency and high-impact energy of Montabert hydraulic rock drills.
Does the adapter come with a male thread configuration?
Yes, the specifications provided are for the male thread version of the HC 40 and HC 50 shank adapters.
