High-Quality Shank adapter for FURUKAWA HD 612-STD QED Factories, Quotes

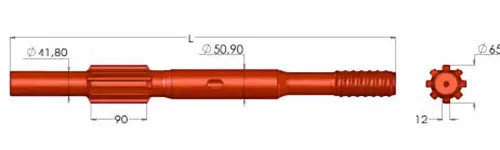

Shank adapter for FURUKAWA HD612-STD, HD612-QED, SOOSAN SP 6, TD 51

Send Inquiry

Product Description

✓

Shank Adapter Compatibility

High-performance shank adapters designed for:

▶ FURUKAWA HD612-STD / HD612-QED
▶ SOOSAN SP 6, TD 51

FURUKAWA - HD 612 (STD) / SOOSAN SP 6, TD 51
PRODUCT IMAGE	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
PRODUCT IMAGE	THREAD	mm	In.	mm	In.
	T45	670	26 38	51	2 00
	T51	670	26.38	51	2

FURUKAWA - HD 612 (QED)
PRODUCT IMAGE	THREAD	OVERALL LENGTH (L)		FRONT END DIAMETER
PRODUCT IMAGE	THREAD	mm	In.	mm	In.
	T45	845	33 27	51	2 00
	T51	845	33.27	51	2

Frequently Asked Questions

Which rock drill models are these shank adapters compatible with?

These shank adapters are specifically engineered for FURUKAWA HD612 (both STD and QED models) and SOOSAN SP 6 and TD 51 hydraulic drifters.

What thread options are available for the HD612 series?

We offer both T45 and T51 thread options to meet different drilling requirements and string configurations.

What is the difference in length between the STD and QED versions?

The standard (STD) version has an overall length of 670mm, while the QED version is longer, featuring an overall length of 845mm.

What is the front end diameter for these adapters?

Both the T45 and T51 variants for these models feature a front end diameter of 51mm (2.00 inches).

Are these adapters suitable for heavy-duty mining and construction?

Yes, they are manufactured with high-strength materials to withstand the high impact and rotation torque of modern hydraulic rock drills in demanding environments.

How do I ensure the correct fit for my drilling equipment?

Ensure you match the drill model (e.g., HD612) and the desired thread size (T45/T51) as per the specifications provided in the technical data tables above.
