Shank adapters are produced for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters: Better suited for drifting, tunneling and extension applications where high bending stresses are present.
Female shank adapters: Used when drilling space is limited and total feed length is important, such as underground roof bolting.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string. They are designed to withstand high impact power and are hardened through carburizing.
Compatibility: Suitable for HL1000, HL1000S, HL1010, HL1010S, HL1060T, HL1560T and PE versions.
| HL 1000 Series Specification | Overall Length (L) | Front End Diameter | |||
|---|---|---|---|---|---|
| Image | Thread | mm | In. | mm | In. |
 |
T45 | 590 | 23.23 | 52 | 2.05 |
| T51 | 590 | 23.23 | 52 | 2.05 | |
 |
ST58 | 670 | 26.38 | 60 | 2.36 |
| GT60 | 670 | 26.38 | 60 | 2.36 | |
 |
T51/ST58 | 760 | 29.92 | 65 | 2.56 |
| GT60/XT60 | 760 | 29.92 | 65 | 2.56 | |

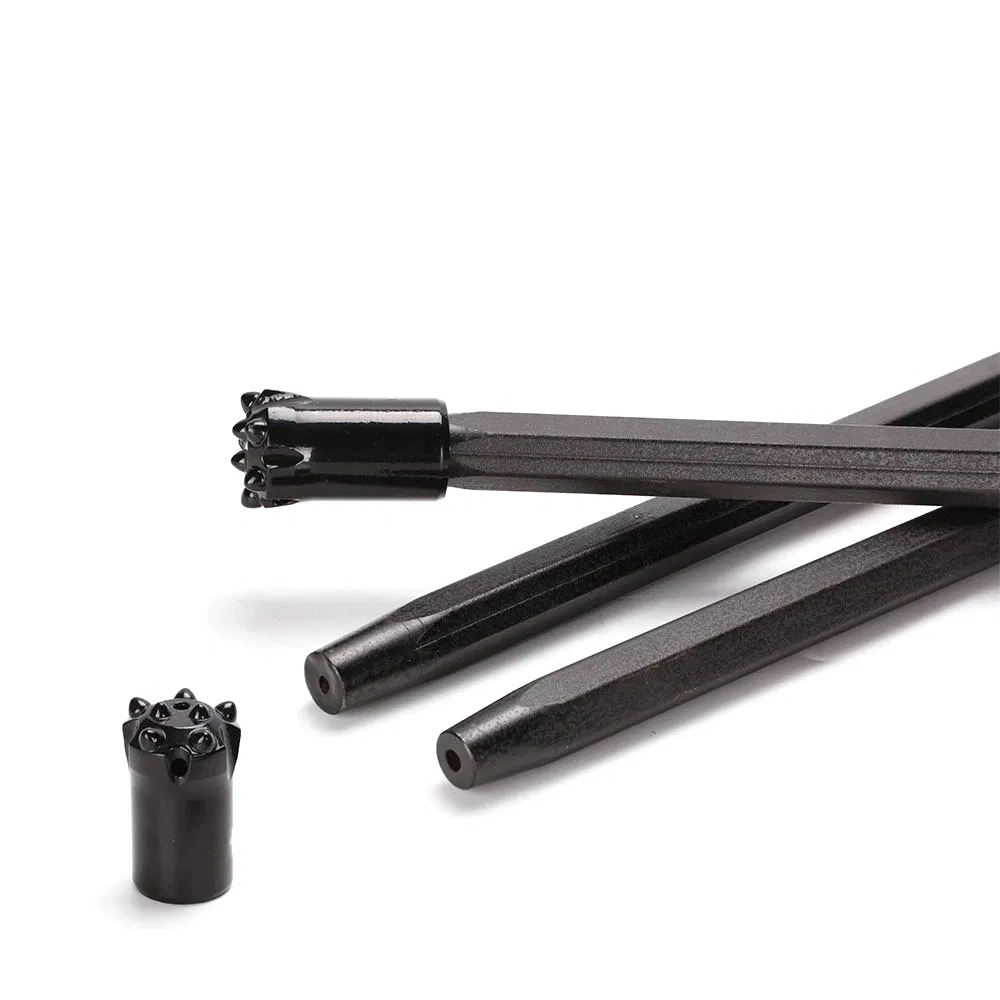

Tapered equipment:
Including tapered chisel bits, tapered cross bits, tapered button bits, H22/H25 drill rods, pilot rods, and dome bits. Custom button bits are available upon request.

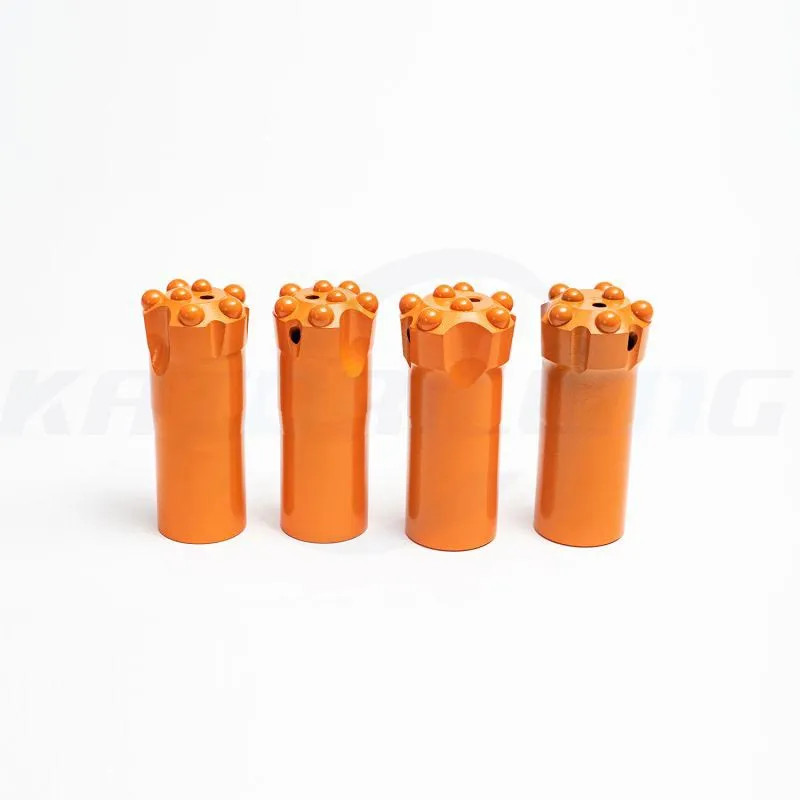

Drifting and Tunneling Button bits:
Series include R25, R28, R32, SR32, SR28, SR25 button bits and retract button bits. Diameters range from 33mm to 76mm depending on the series.

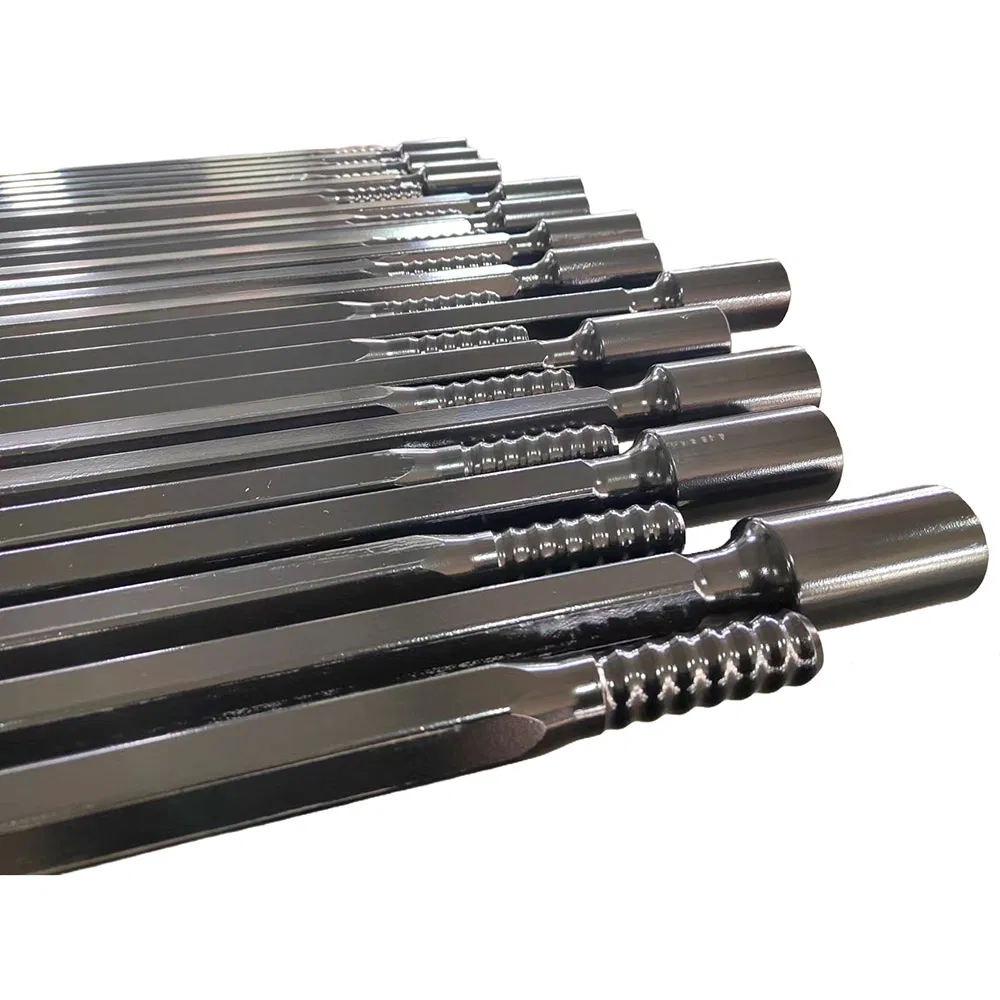

Drifter Rod:
Rod lengths available from 700mm to 6400mm for series R32, T38, HEX25, HEX28, HEX32, and HEX35.

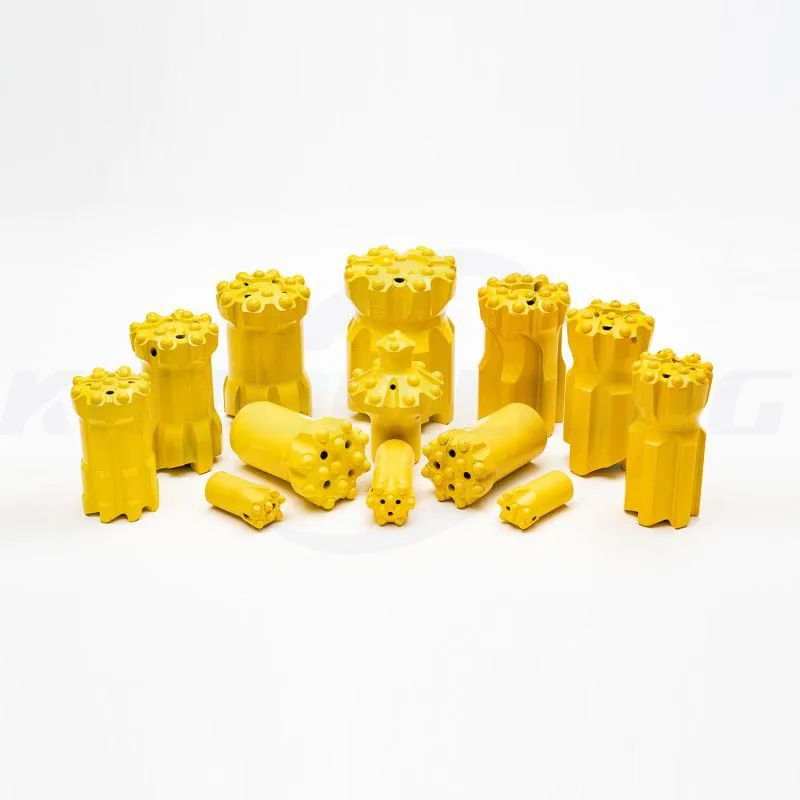

Bench Drilling Tools:
Supplying R32, T38, T45, T51, T60, ST58 and ST68 series, including button bits, retrac bits, shank adapters, and drill tubes.

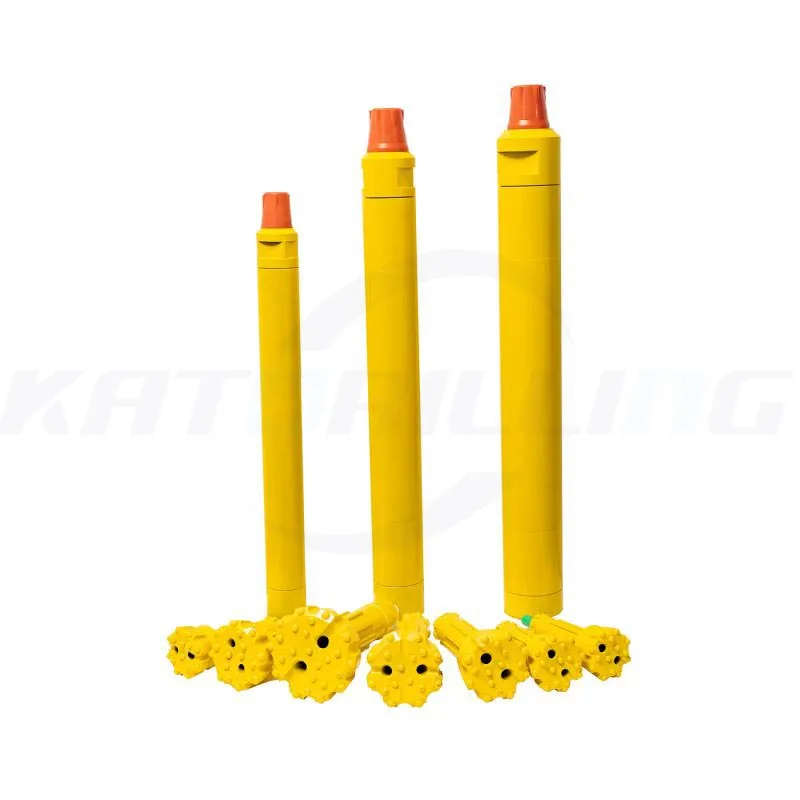

DTH Drilling Tools:
Supplying DHD, QL, BR, CIR, and Mission series tools including drill bits, pipes, and DTH hammers.
