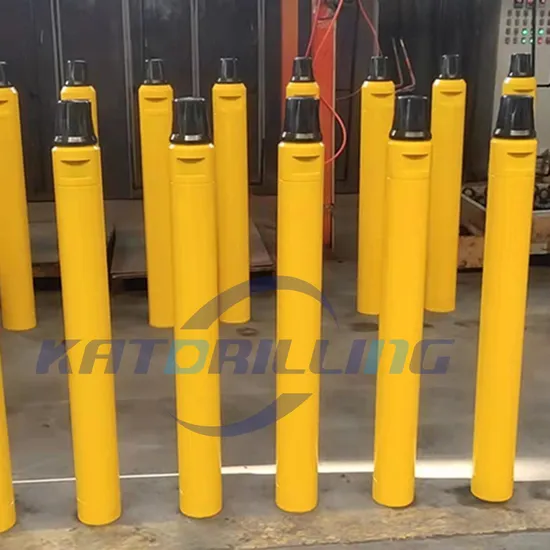

High-Quality Ql40 Down The Hole Impactor DTH Hammer for Construction and Mining Factories, Quotes

Product Details
Customization: Available
After-sales Service: Repair or Replacement
Warranty: 6 Months

Product Description

Basic Information
Model NO.
QL40
Certification
CE, ISO 9001:2000, ISO 9001:2008
Material
Carbon Steel
Surface Treatment
Spray-Paint
Machine Type
Drilling Tools
Outside Diameter
99mm
Weight
43.7kg
Working Pressure
1.0-2.2MPa
Transport Package
Wooden Case
Production Capacity
500,000 PCS/Month
Product Description
High air pressure DTH hammer is a kind of down-the-hole hammer, mainly used for percussive drilling in rock formation. Characterized by high air pressure and high efficiency, it is ideal for areas with abundant air supply. By using compressed air to drive the piston, it generates impact energy to penetrate rock formations effectively.
  • Maximum energy delivery to drilling bits for faster penetration.
  • Low air consumption due to specialized inner structure.
  • High-quality alloy steel materials for extended service life.
  • Simple design ensures low problem rates and easy maintenance.
  • Interchangeable with standard DTH bits and drill pipes.

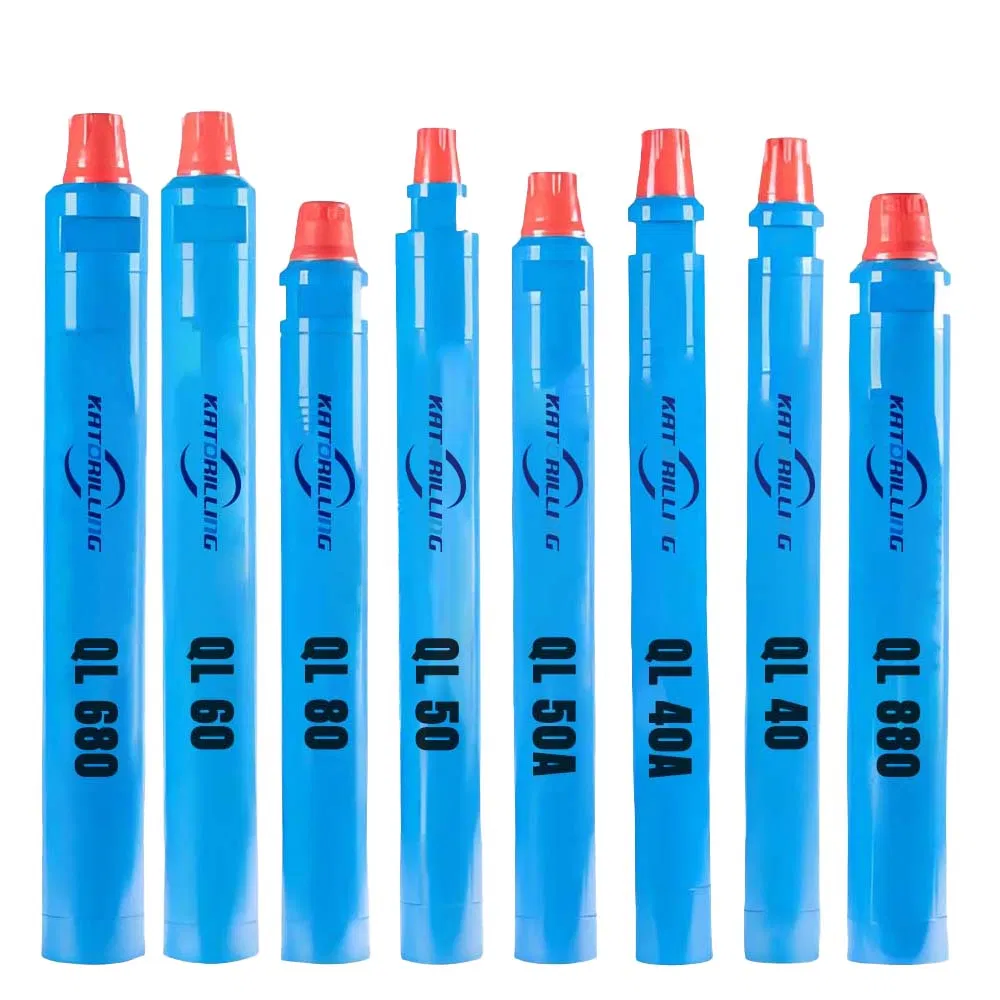

Technical Specifications
Type Model Length (mm) Weight (kg) External Dia.(mm) Hole Range (mm)
3.5 inchDHD3.593025Φ82Φ90-110
4 inchQL40109741Φ99Φ110-135
5 inchQL50114773Φ125Φ135-155
6 inchQL60121295Φ146Φ155-190
8 inchQL801465182Φ180Φ195-254

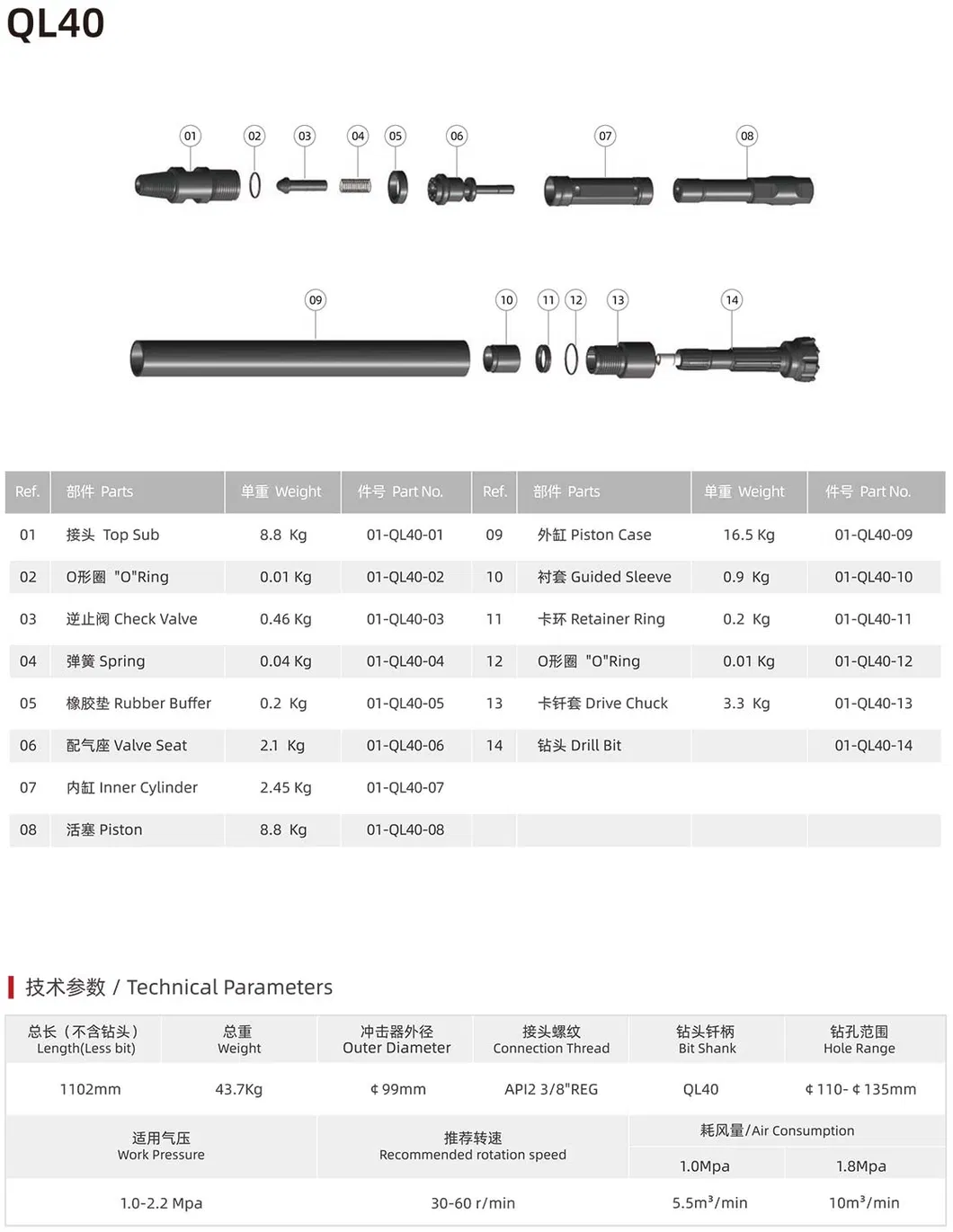

QL40 DTH Hammer Specifics:
Top sub thread
API 2 3/8" REG PIN
Air consumption
5.5-10 (M3/min)
Bit shank
QL40
Detailed Product Display
Frequently Asked Questions
What are the available payment methods?
We accept T/T (Telegraphic Transfer), Western Union, and L/C at sight.
How long is the order handling time?
Production normally takes 25 days based on quantity. If the requested size is in stock, it only takes 2 to 3 days.
What shipping methods do you offer?
For sample orders, we suggest express couriers like DHL/UPS/TNT/FEDEX or air freight. For bulk orders, shipping by air or sea is recommended.

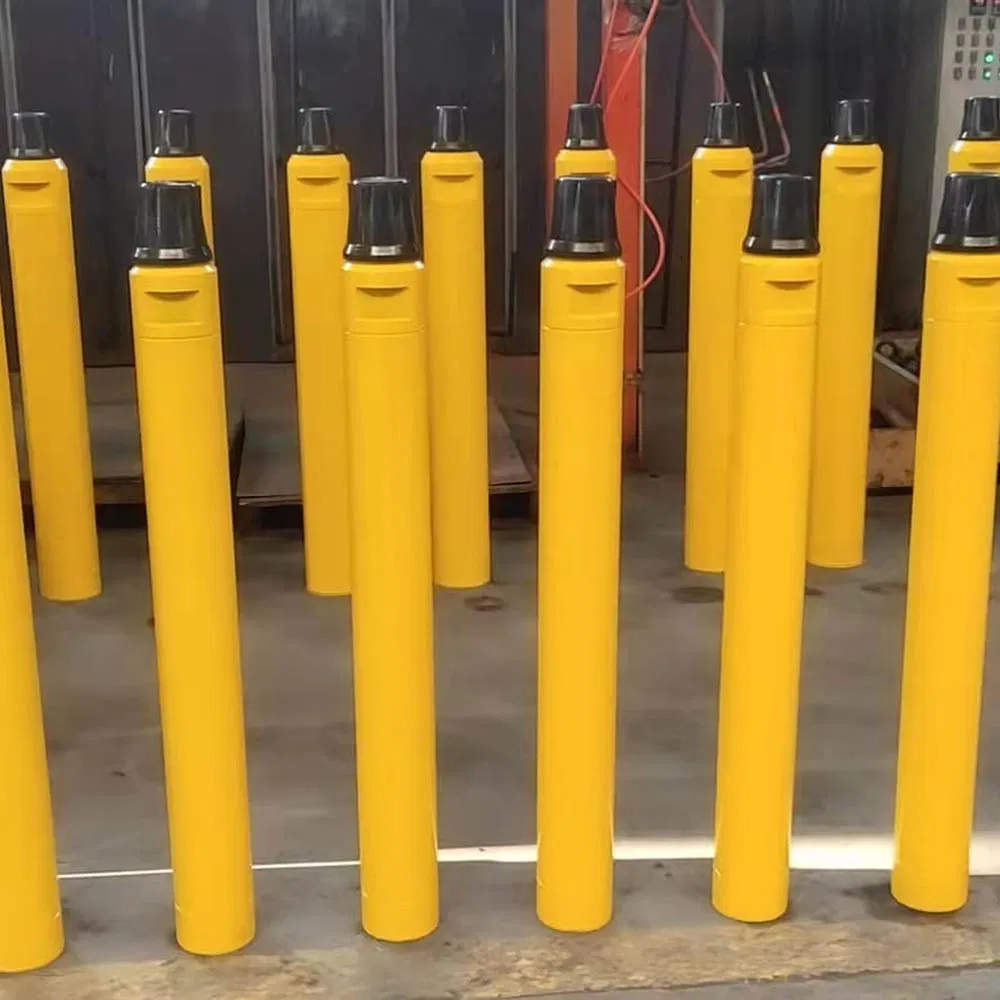

How is the product quality controlled?
We have an experienced internal QC team. Every order undergoes strict inspection and testing before shipment.
What kind of after-sales service is provided?
Our sales team responds within 24 hours. We provide continuous technical support and offer free replacements for confirmed quality failures.
What applications is this DTH hammer suitable for?
It is widely used in mining, water well drilling, quarrying, bench drilling, and civil engineering exploration.
