High-Quality Mission80 High Air Pressure DTH Hammer Factories, Pricelist

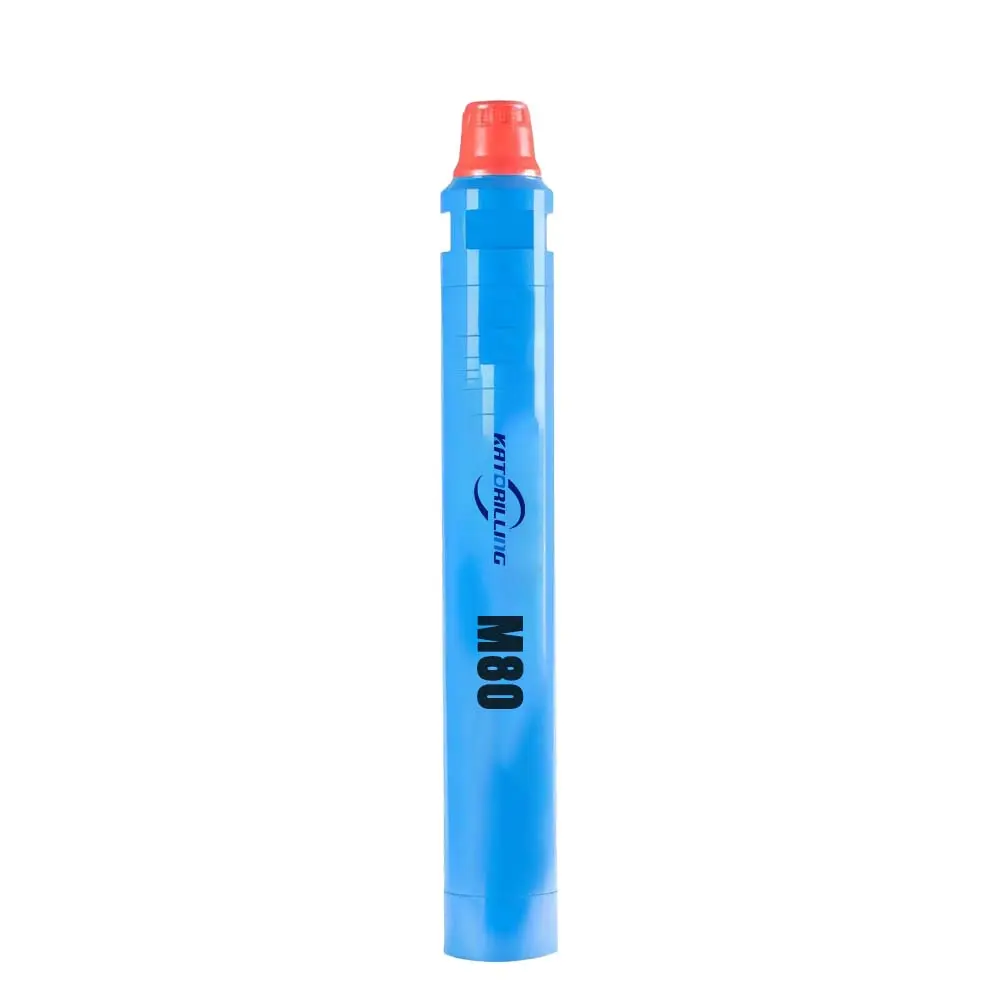

Mission80 High Air Pressure DTH Hammer

BR1/BR2/BR3

DHD3.5/DHD340/DHD350/DHD360/DHD380

QL40/QL50/QL60/QL80

MISSION30/MISSION40/MISSION50/MISSION60/MISSION80

Send Inquiry

Product Description

Mission80 Quarry Mining High Air Pressure DTH Hammer

The DTH hammers are designed with advanced drilling theory which are able to deliver energy better and drill more quickly with lower air consumption. With finest steel and advanced manufacturing techniques, the hammer maintains stable performance and long service life, also easy to assemble and repair.

MISSION SERIES DTH Hammers

Available Models: MISSION30 / MISSION40 / MISSION50 / MISSION60 / MISSION80

DESIGN HIGHLIGHTS

DHD/QL/MISSION series is a valve less type hammers designed for high performance at low operating air pressure.
Suitable bits have a strong robust design without foot valve to withstand heavy duty application.
DHD/QL/MISSION series hammers maximizes energy output and reduces service requirements.
Wear sleeve is not reversible.
All critical internal components are heat treated under strict control to maximize tool longevity.

APPLICATIONS

Widely used for mine, quarry, road construction for drilling and blasting work, water well drilling, slope protection, anchoring, and more.

DTH Hammer Series Available

High pressure series
Medium pressure series
Low pressure series
High efficiency high pressure series
Reverse circulation series

Type	Model	Length (mm)	Weight (kg)	External Dia. (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
	SD4	1084	40.5	Φ99
	QL4	1097	41	Φ99
	Mission40	1005	40	Φ99
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
	SD5	1175	72.5	Φ125
	QL5	1147	73	Φ125
	Mission50	1110	68.5	Φ125
6 inch	DHD360	1248	100	Φ142	Φ155-190
	SD6	1261	100	Φ142
	QL6	1212	95	Φ146
	Mission60	1161	90	Φ146
8 inch	D85	1492	188	Φ180	Φ195-254
	SD8	1463	192	Φ180
	QL8	1465	182	Φ180
	Mission80	1338	176	Φ180
10 inch	SD10	1502	290	Φ226	Φ254-311
10 inch	NUMA100	1510	288	Φ226	Φ254-311

Mission80 DTH Hammer Specifications

Hammer Length without bit	1333 (mm)
Top sub thread	API 41/2" REG PIN
Outside diameter	180 (mm)
Weight	160.5 (KG)
Bit diameter	195-245 (mm)
Working Pressure	1.5-3.5 Mpa
Air consumption	26-35 (M3/min)
Bit shank	Mission80

Frequently Asked Questions

What are the primary applications for the Mission80 DTH hammer?

The Mission80 hammer is widely used in mining, quarrying, road construction, water well drilling, slope protection, and anchoring projects.

What makes the MISSION series design more efficient?

It features a valveless design and does not require a foot valve, allowing for high performance even at low operating air pressures while maximizing energy output.

How does this hammer contribute to tool longevity?

All critical internal components undergo strict heat treatment control, and the hammer is manufactured from the finest steel to ensure stable performance and a long service life.

What is the working pressure range for the Mission80?

The Mission80 DTH hammer operates effectively within a working pressure range of 1.5 to 3.5 Mpa.

Is the Mission80 DTH hammer easy to maintain?

Yes, the design emphasizes simplicity, making the hammer easy to assemble, repair, and service on-site.

What is the hole range capability for the 8-inch series?

The 8-inch series, including the Mission80, is designed for a hole range of Φ195mm to Φ254mm.
