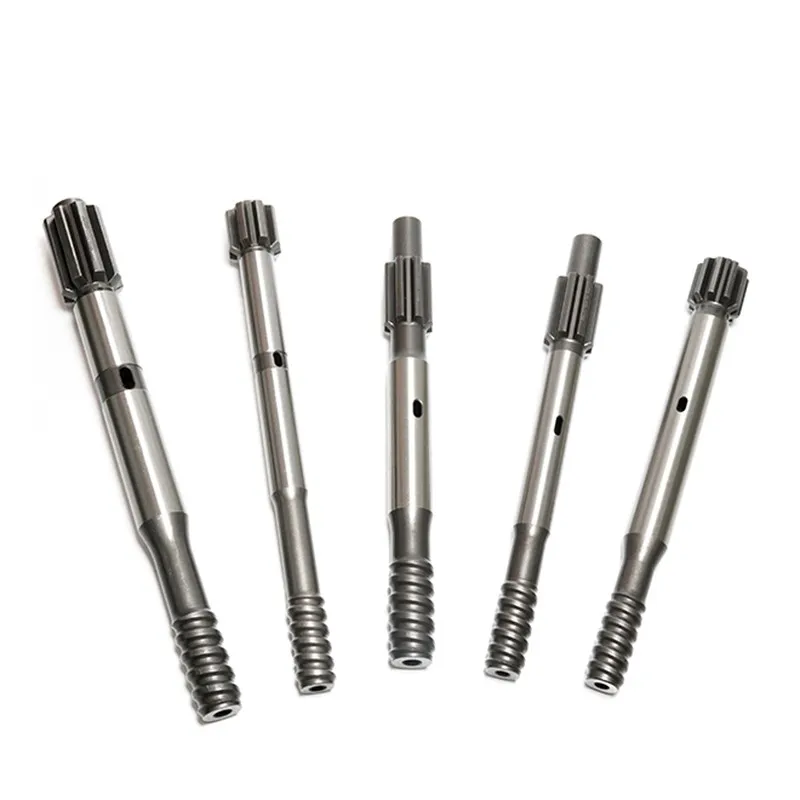

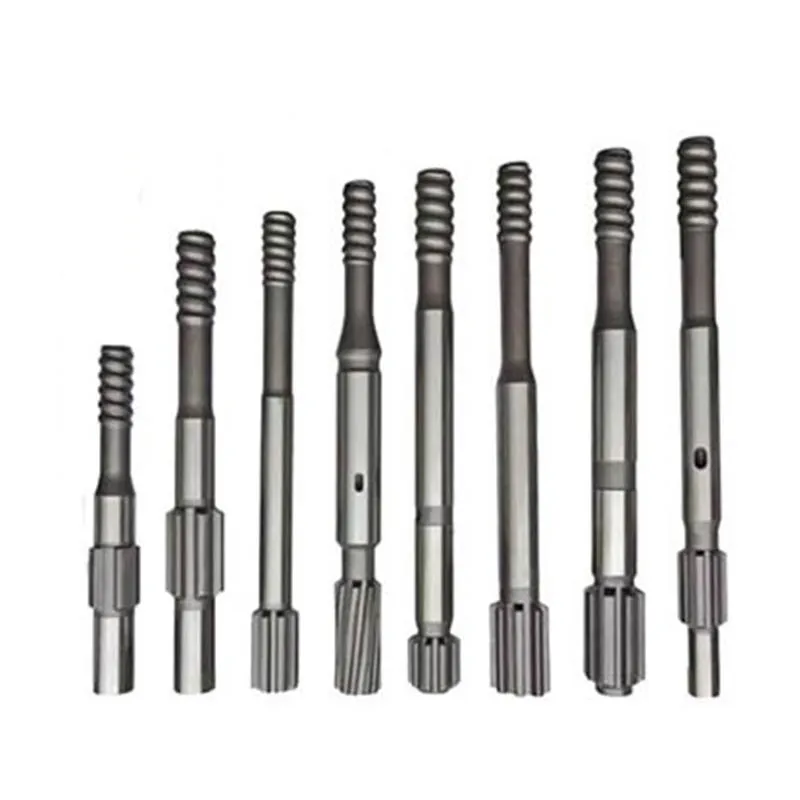

High-quality rock drilling tool manufacturer produces shank adapters for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.

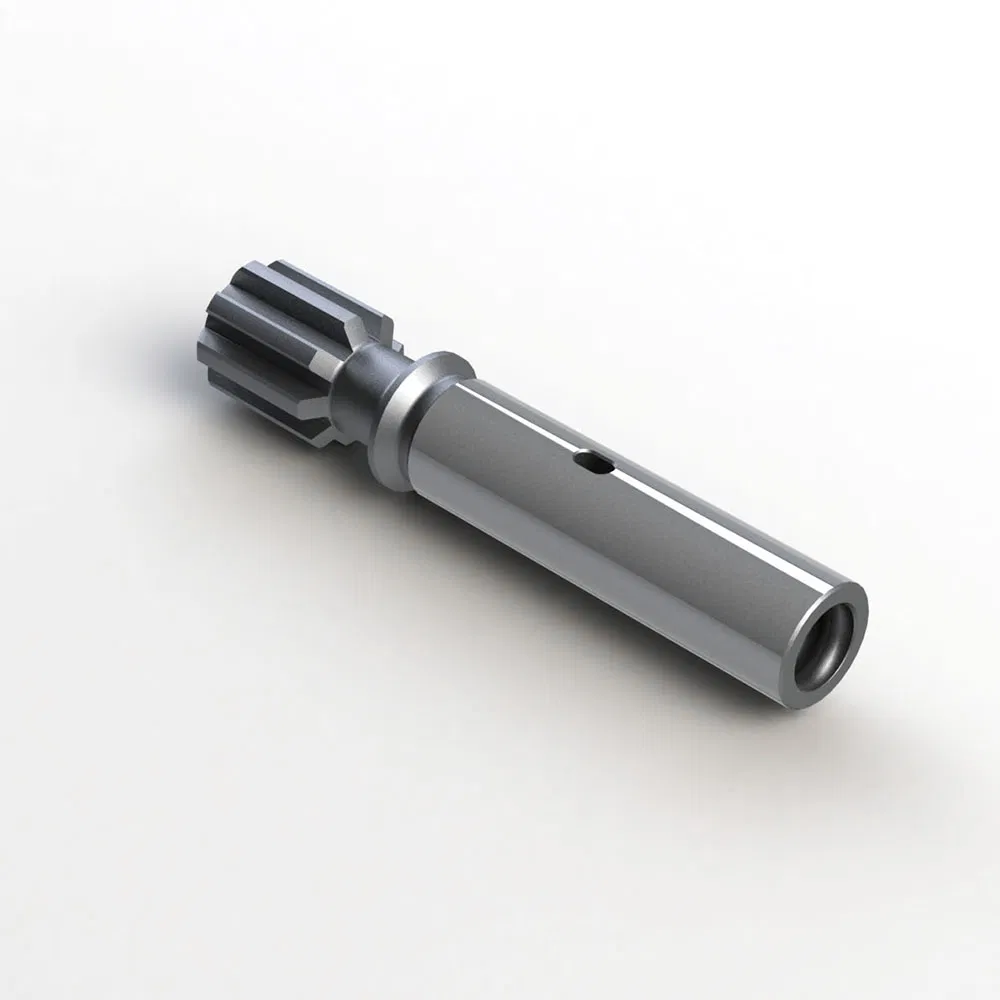

Male shank adapters are generally better suited for drifting, tunneling, and extension applications where high bending stresses are present. Female shank adapters are used when the drilling space is limited and the total feed length is important, such as underground roof bolting.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy, and flushing medium to the drill string (extension drill rods, drifting drill steels). These adapters are designed to withstand the high impact power of modern rock drills and are made from specially selected material hardened through carburizing.
| Brand | Compatible Models |
|---|---|

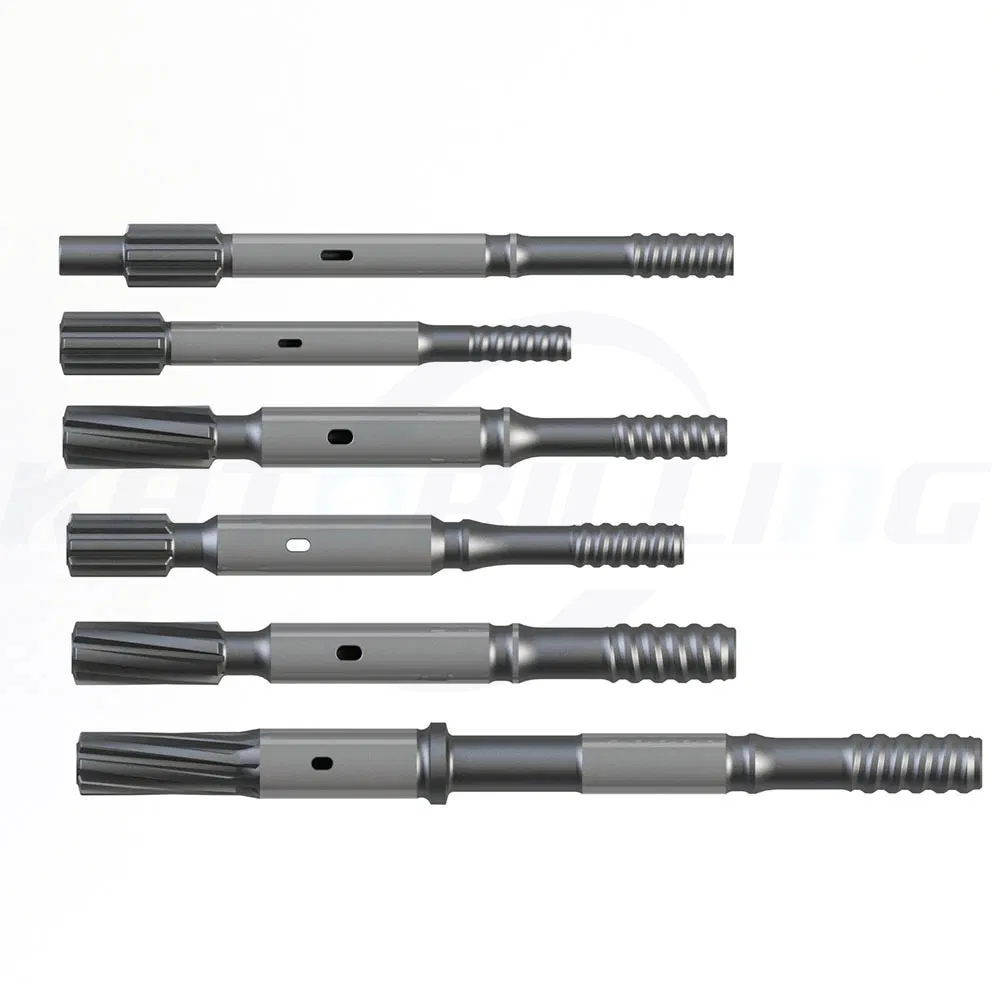

| Atlas Copco | vl140, bbc42, bbc44, bbc100, bbc54, bbc120, cop125, cop130, cop131, cop131EB, cop628, cop925, cop928, cop932, cop938, cop1028, cop1028hb, cop1032, cop1036, cop1038, cop1238, copbr11, cop1132, coprr11, cop1140, copsc14, coprr14, cop1240, cop1640, cop1840, cop1850, cop2150, cop2550, COP SC16, SC19, SC 25-HF, etc. |

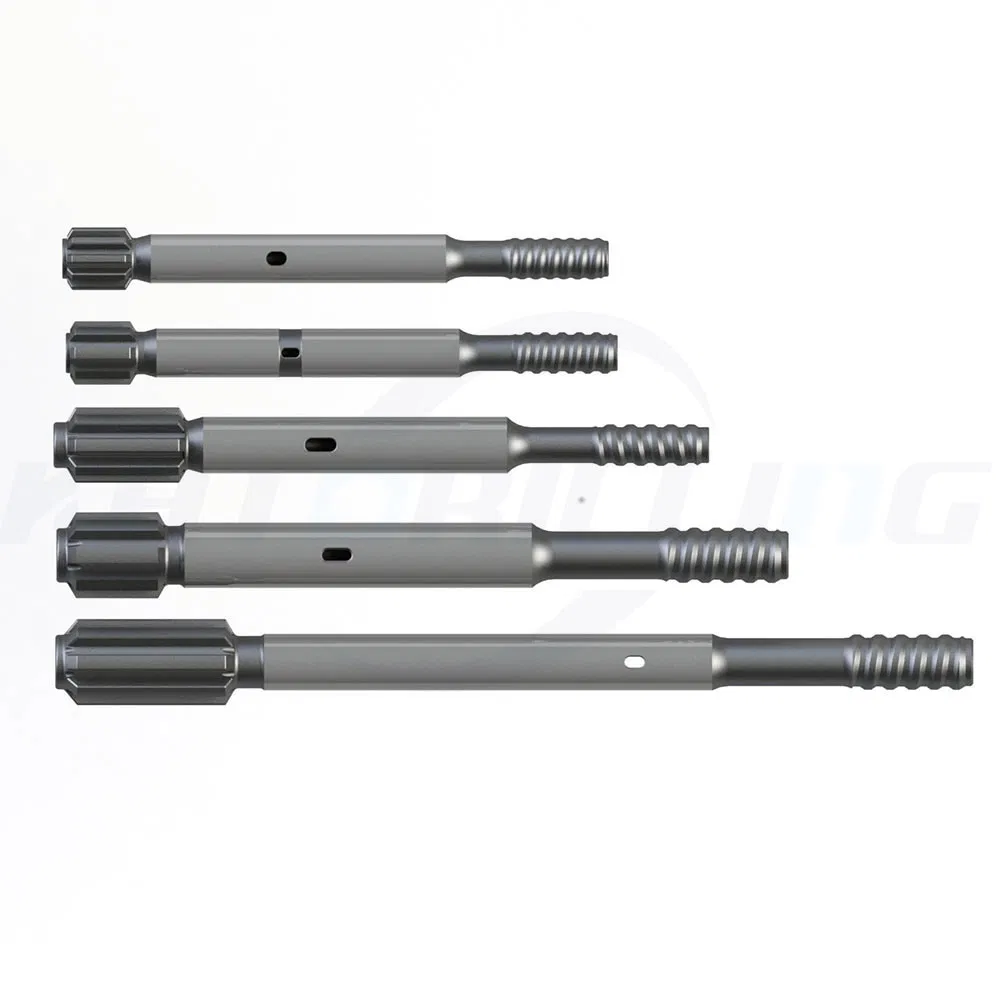

| Tamrock | HLX 1, RD106, HL300, RD308, RD314, RD414, HLX5, HLX5T, HFX5T, RDX5, HLX5 PE, RDX5 PE, RD520 PE, RD525 PE, RD535 PE, HLR438LS, HL500, HL510, HL538L, HL550S, HL600, HL700, HL800T, etc. |

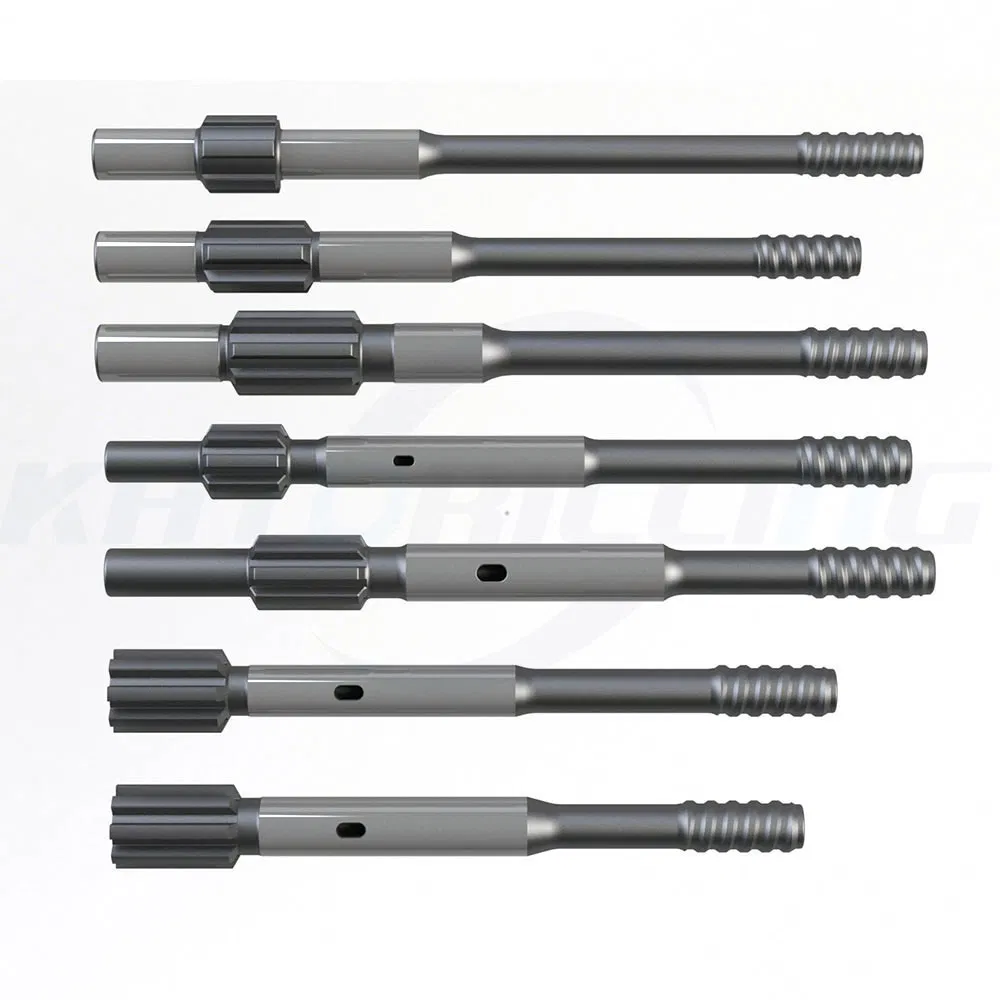

| Furukawa | HD 200, M 120, HD 260, HD 300, HD 500, HD 609, HD 612, HD 615, HD 709, HD 712, HD 715, HD 822 QED, 826 QED, HD 836, PD 200R, PD 200 |

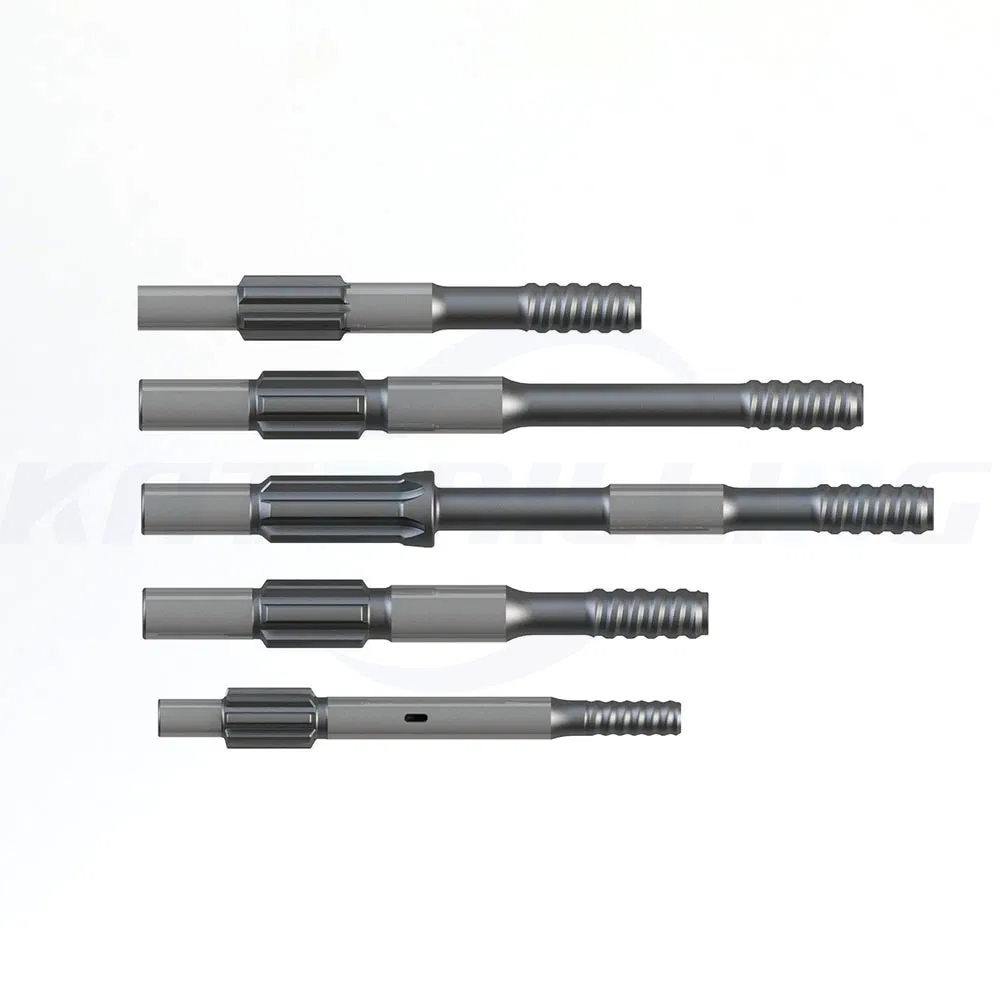

| Ingersoll-Rand | Hydrastar 200, VL 120, VL 140, EVL 130, YD 90 M, YH 65, YH 70, LM 500, YH 80A, YH 95 RP, YH 100 RP, YH 110 V, YH 135 |

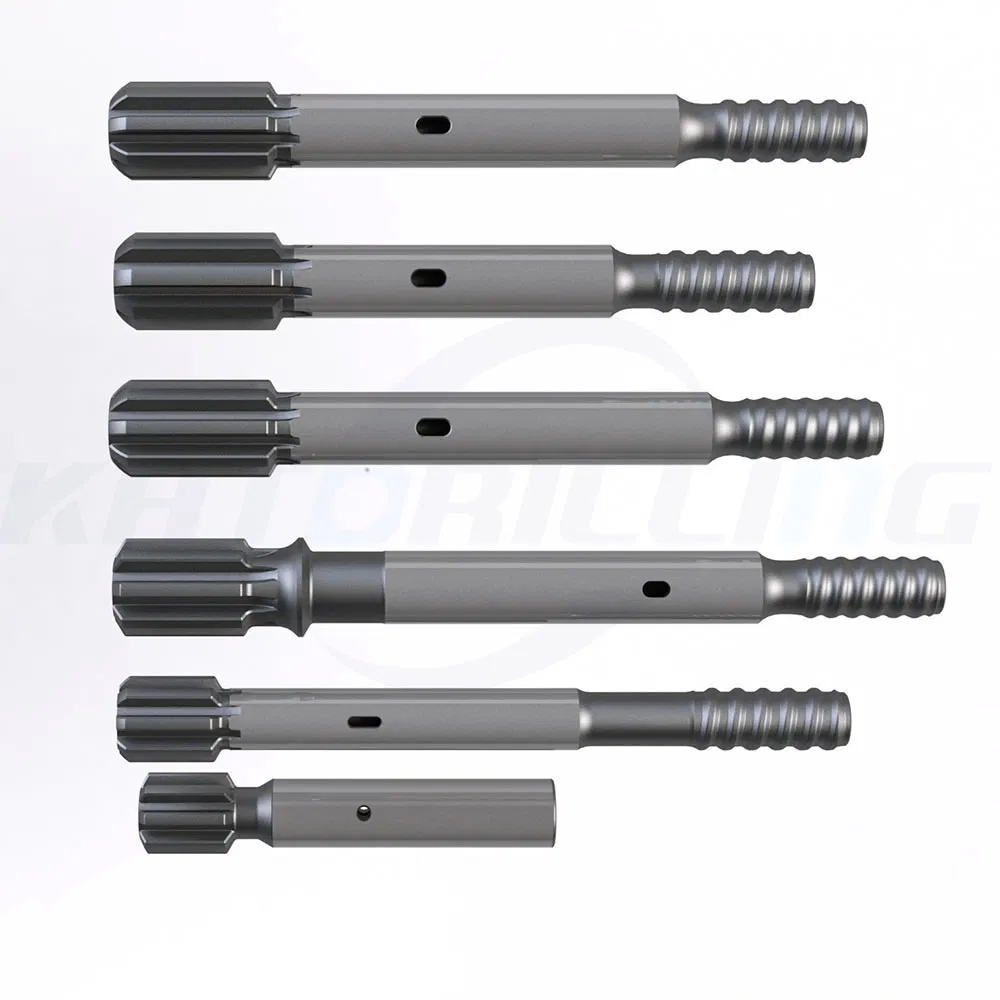

| Montabert | HC 20, hc25, hc40, hc50, hc80, hc120, hc90, hc105, HC 80 RP, HC 105 RP, HC 107 RP, HC 108 RP, HC 109 RP, HC 110 RP, HC 120 RP, HC 150 RP, hc160, hc200 |
Note: Samples or drawing customization services are available upon request.
| Model | Thread | Overall Length (mm) | Overall Length (In.) | Front End Diameter (mm) | Front End Diameter (In.) |
| HC 40, 50 (Female) | R32 | 270 | 10.63 | 45 | 1.75 |
Drilling Rig Spare Parts compatibility:
