High-Quality H22*108 Pneumatic Tools Rock Drilling Tapered Drill Rod with Rock Drill Bits Manufacturer, Manufacturers

1 / 5

High-Quality H22*108 Pneumatic Tools Rock Drilling Tapered Drill Rod with Rock Drill Bits Manufacturer, Manufacturers

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Information

Model NO.

h22-108

Certification

ISO 9001:2000, ISO 9001:2008

Standard

Surface Treatment

Spray-Paint

Manufacturing Process

Forging

Material

Carbon Steel

Degree

7/11/12

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Material Quality

95crmo, 55simnmo, 40simncrnimo, 23crni3mo, D6a

Length

3 Pies

Transport Package

Wooden Case

Specification

Hex22mm, Hex25mm

HS Code

82071990

Production Capacity

500,000 PCS/Month

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Product Description

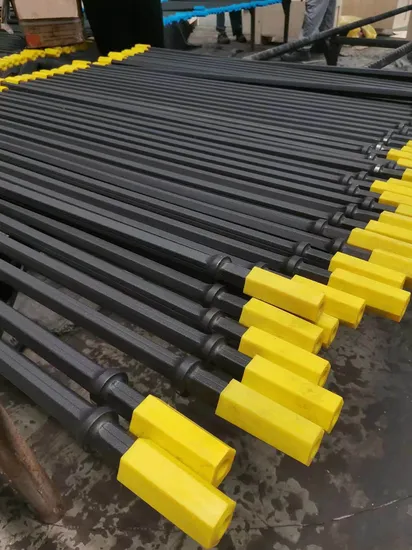

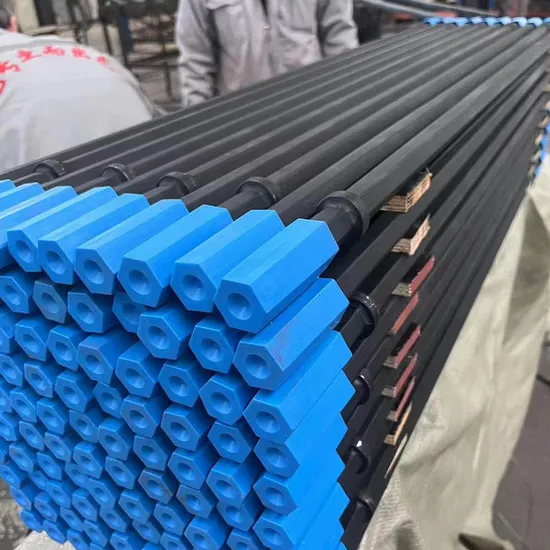

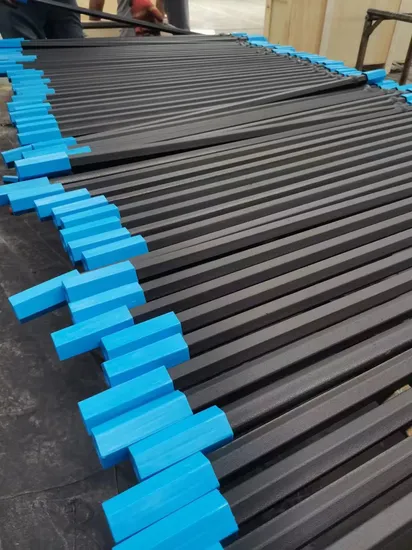

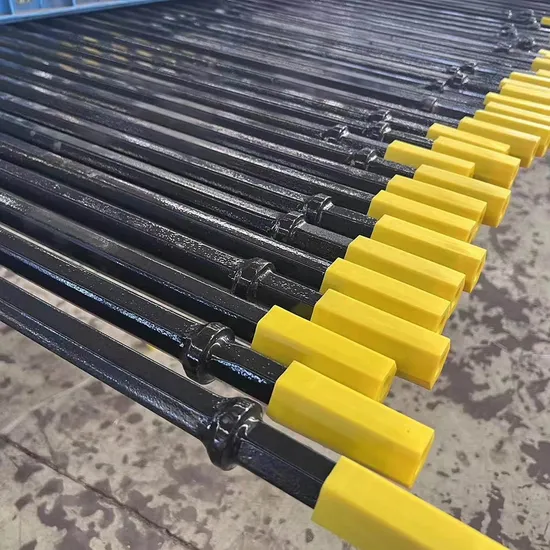

Taper drill rod is widely used for rock drilling, blasting holes, and other drilling works in quarries, coal mines, traffic projects, and other construction sites. It works in conjunction with taper drill bits and is available in different lengths for various applications.

Key Specifications:
- Steel grade: 95CrMo (equivalent to SANDBAR20, C253, Z708, Sanbar23) or 55SiMnMo.
- Shank sizes: Hex 22mm × 108mm, 22mm × 159mm, 22mm × 80mm, 25mm × 108mm, 25mm × 159mm.
- Taper Angles: 4°46', 6°, 7°, 11°, 12°, etc.
- Length Range: 0.4m to 10m.

The light-duty rock drills usually utilize a 7° taper or smaller, while heavy-duty rock drills mainly use 11° or 12° taper angles. It is essential that the taper drill rods and taper drill bits share the same tapered degree for proper operation.

Technical Note: Shank hex 22 mm (7/8") x 108 mm (4 1/4"). Rod hex 22 mm (7/8). Flushing hole diameter 6.7 mm.

Technical Data Sheet

Rod Cross Section	Length (mm)	Length (foot/inch)	Weight Approx. (kg)
4º46' Taper Angle
22H	800	2'7½"	2.8
22H	1600	5'3"	5.3
22H	2400	7'10½"	7.7
22H	4000	13'1½"	12.7
7º Taper Angle
22H	400	1'3¾"	1.6
22H	1830	6'	6.0
22H	3050	10'	9.7
22H	8000	26'3"	24.9
11º Taper Angle
22H	800	2'7½"	2.8
22H	1525	5'	5.0
22H	3200	10'6"	10.2
22H	8000	26'3"	24.9
12º Taper Angle
22H	610	2'	2.2
22H	2000	6'6¾"	6.5
22H	3965	13'	12.5
22H	8000	26'3"	22.4

Frequently Asked Questions

What materials are used for the taper drill rods?

Our taper drill rods are primarily manufactured using high-quality Carbon Steel, including grades like 95CrMo (comparable to C253 or Sanbar23) and 55SiMnMo for superior durability.

How do I choose the correct taper angle for my project?

Generally, light-duty rock drills use a 7° taper or smaller. For heavy-duty operations, 11° or 12° taper angles are recommended. Ensure your drill bits match the rod's taper degree.

What shank sizes are available?

We offer standard hex sizes including Hex 22mm and Hex 25mm, with various shank lengths such as 80mm, 108mm, and 159mm to suit different pneumatic drilling needs.

What is the maximum length of the drill rods?

The taper drill rods can be produced in lengths ranging from 0.4 meters up to 10 meters, depending on the specific requirements of the drilling site.

How are the products packaged for international shipping?

Products are typically packed in robust wooden cases or secured bundles to ensure they remain protected and intact during transit.

What is your monthly production capacity for these tools?

We maintain a high production capacity of approximately 500,000 pieces per month to ensure steady supply for large-scale mining and construction projects.
