The DTH hammers are designed with advanced drilling theory, capable of delivering energy more efficiently and drilling faster with lower air consumption. Utilizing the finest steel and advanced manufacturing techniques, the hammer maintains stable performance and an extended service life, while also being easy to assemble and repair.
These tools are widely used for mining, quarrying, road construction (drilling and blasting), water well drilling, slope protection, and anchoring.

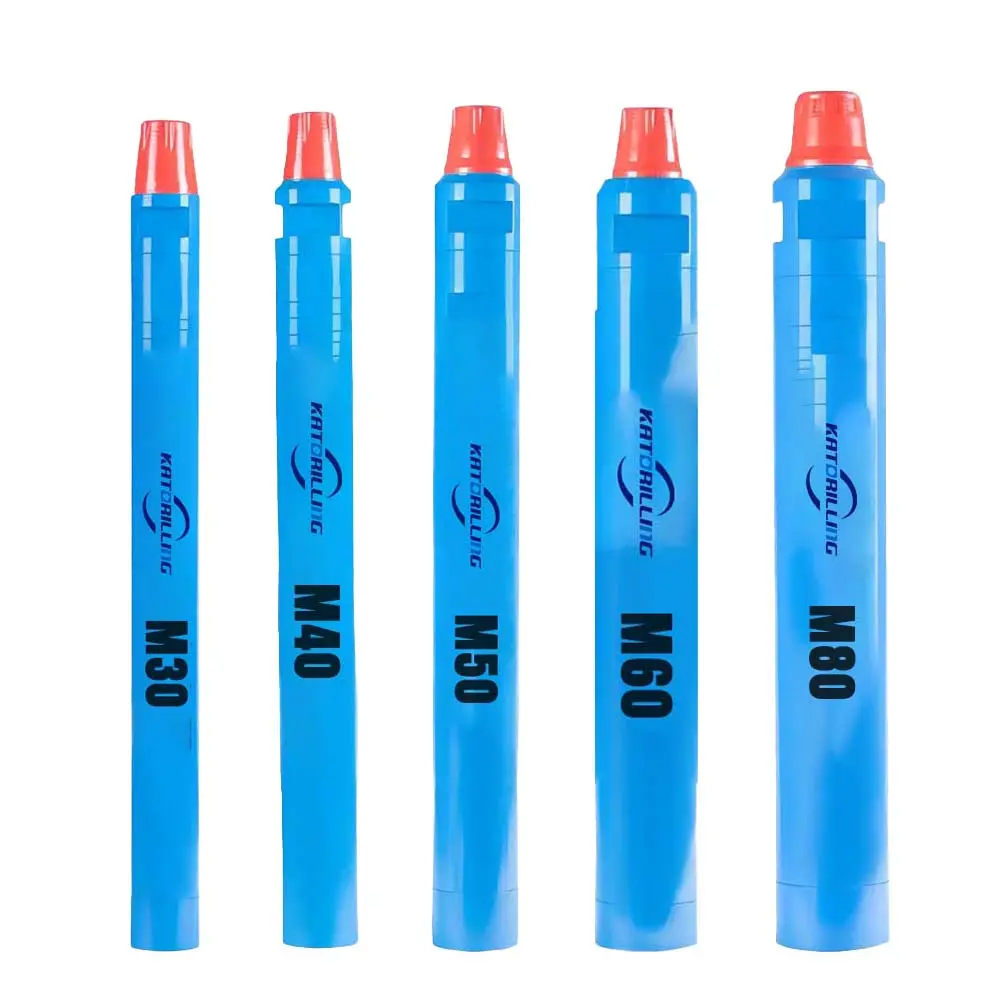

| Type | Model | Length | Weight | External Dia.(mm) | Hole Range |
|---|---|---|---|---|---|
| (mm) | (kg) | (mm) | |||
| 3.5 inch | DHD3.5 | 930 | 25 | Φ82 | Φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | Φ99 | Φ110-135 |
| SD4 | 1084 | 40.5 | Φ99 | ||
| QL4 | 1097 | 41 | Φ99 | ||
| Mission40 | 1005 | 40 | Φ99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | Φ125 | Φ135-155 |
| SD5 | 1175 | 72.5 | Φ125 | ||
| QL5 | 1147 | 73 | Φ125 | ||
| Mission50 | 1110 | 68.5 | Φ125 | ||
| 6 inch | DHD360 | 1248 | 100 | Φ142 | Φ155-190 |
| SD6 | 1261 | 100 | Φ142 | ||
| QL6 | 1212 | 95 | Φ146 | ||
| Mission60 | 1161 | 90 | Φ146 | ||
| 8 inch | D85 | 1492 | 188 | Φ180 | Φ195-254 |
| SD8 | 1463 | 192 | Φ180 | ||
| QL8 | 1465 | 182 | Φ180 | ||
| Mission80 | 1338 | 176 | Φ180 |

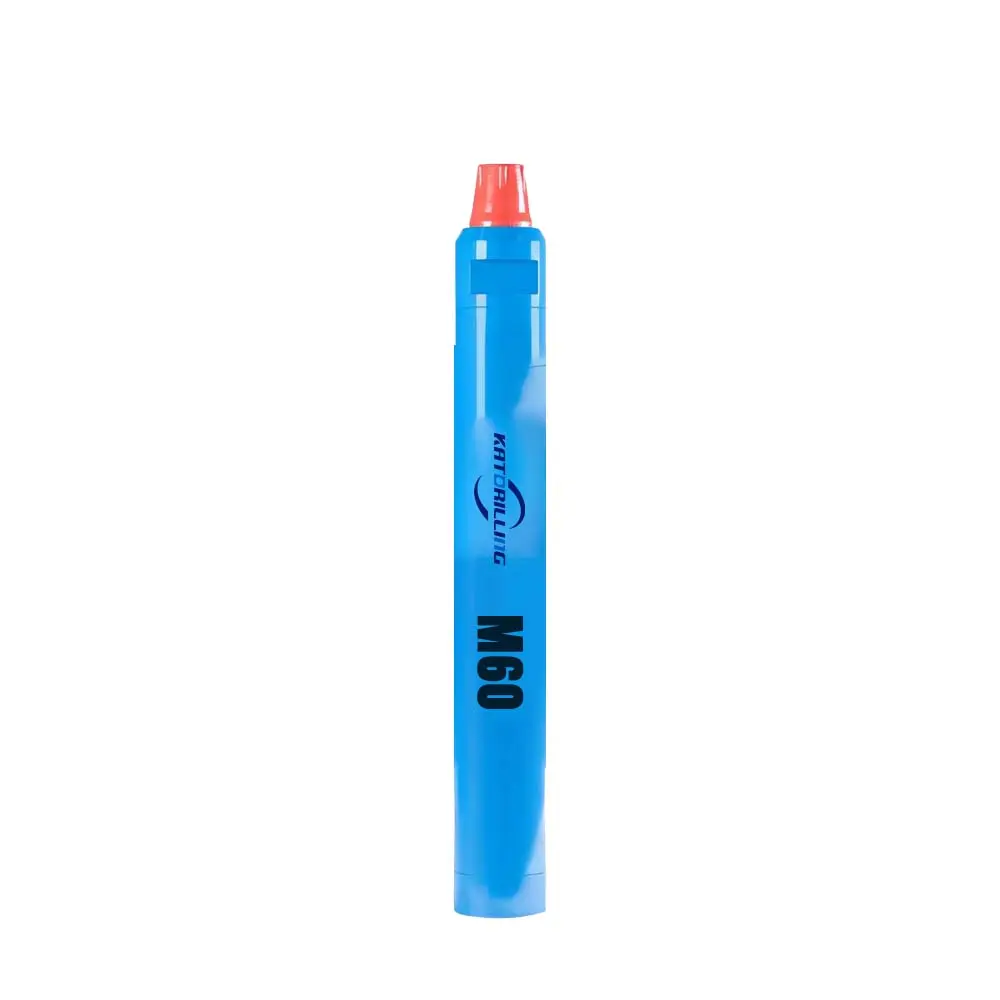

| Hammer Length without bit: | 1129(mm) |
| Top sub thread: | API 3 1/2" REG PIN |
| Outside diameter: | 144 (mm) |
| Weight: | 91.5(KG) |
| Bit diameter: | 152-203(mm) |
| Working Pressure: | 1.0-2.8Mpa |
| Air consumption: | 18-25(M3/min) |
| Bit shank: | Mission60 |
