High-Quality DHD360 Drill Tools DTH Hammer with Foot Valve Factories, Pricelist

1 / 5

High-Quality DHD360 Drill Tools DTH Hammer with Foot Valve Factories, Pricelist

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Information

Model NO.

DHD360

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Material

Carbon Steel

Machine Type

Drilling Tools

Shank Adapter

CIR/DHD/M/Ql/SD

Hole Range

150mm-190mm

Work Pressure

1.0-2.5 MPa

Outer Diameter

142mm

Weight

100.5kg

Length

1063mm

Product Description

Because of economy and powerful drilling capacity, down the hole hammer become an advanced drilling tool for drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, giving high penetration rates, long service life and low costs.

Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure.

Smooth performance and long service life due to high quality alloy steel materials and advanced processing technology.

Low problem rate and easy maintenance due to simple, reliable and easy assemble/disassemble inner structure.

Applications & Advantages

Suitable for high pressure drilling rigs
Water well drilling
Record breaking penetration
Bench drilling
Exploring Civil Engineering Applications
Lowest cost per foot drilled
Mining / Mineral Exploration
Oil well drilling
Longer parts life
Maximizes efficiency
Penetrate 15% to 30% faster

Technical Parameters

Length (Less bit)	Weight	Outer Diameter	Connection Thread	Bit Shank	Hole Range
1063mm	100.5Kg	φ142mm	API3 1/2"REG	DHD360	φ150-φ190mm
Work Pressure		Recommended Rotation Speed		Air Consumption (1.0Mpa)	Air Consumption (1.8Mpa)
1.0-2.5 Mpa		30-60 r/min		9m³/min	20m³/min

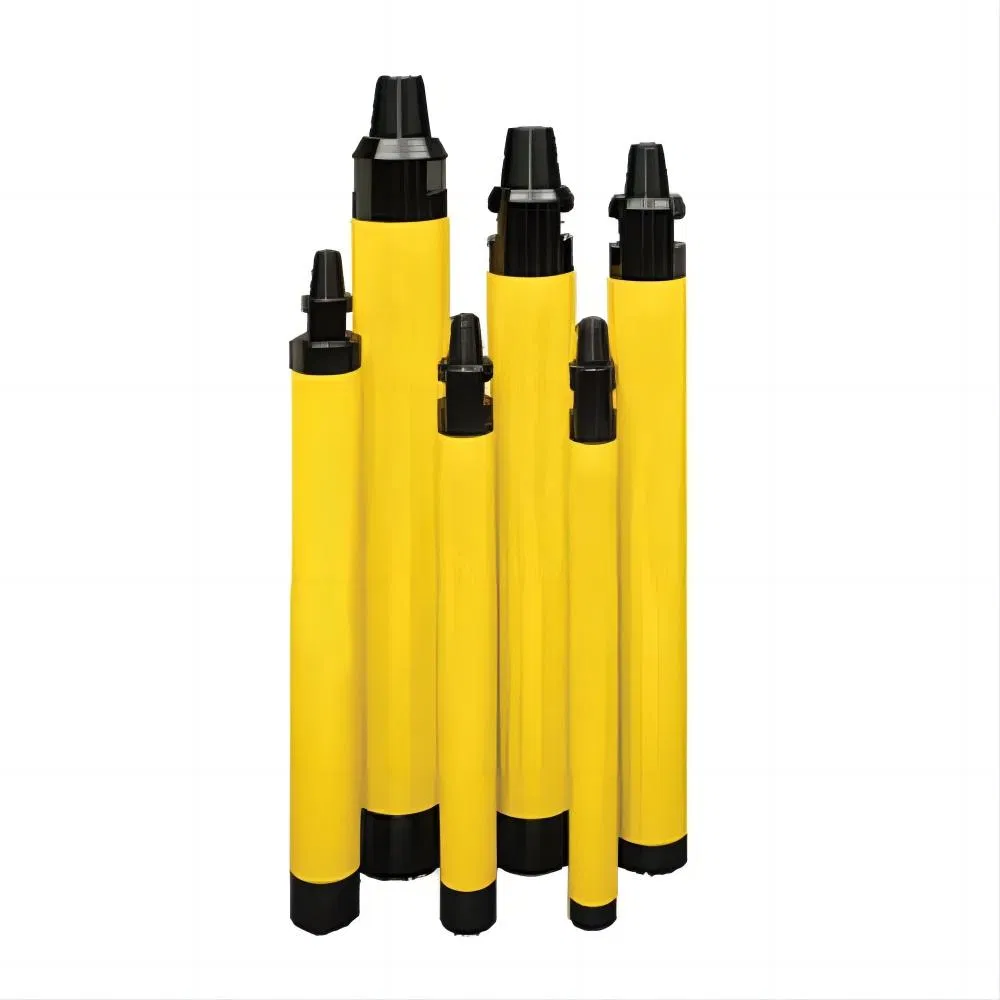

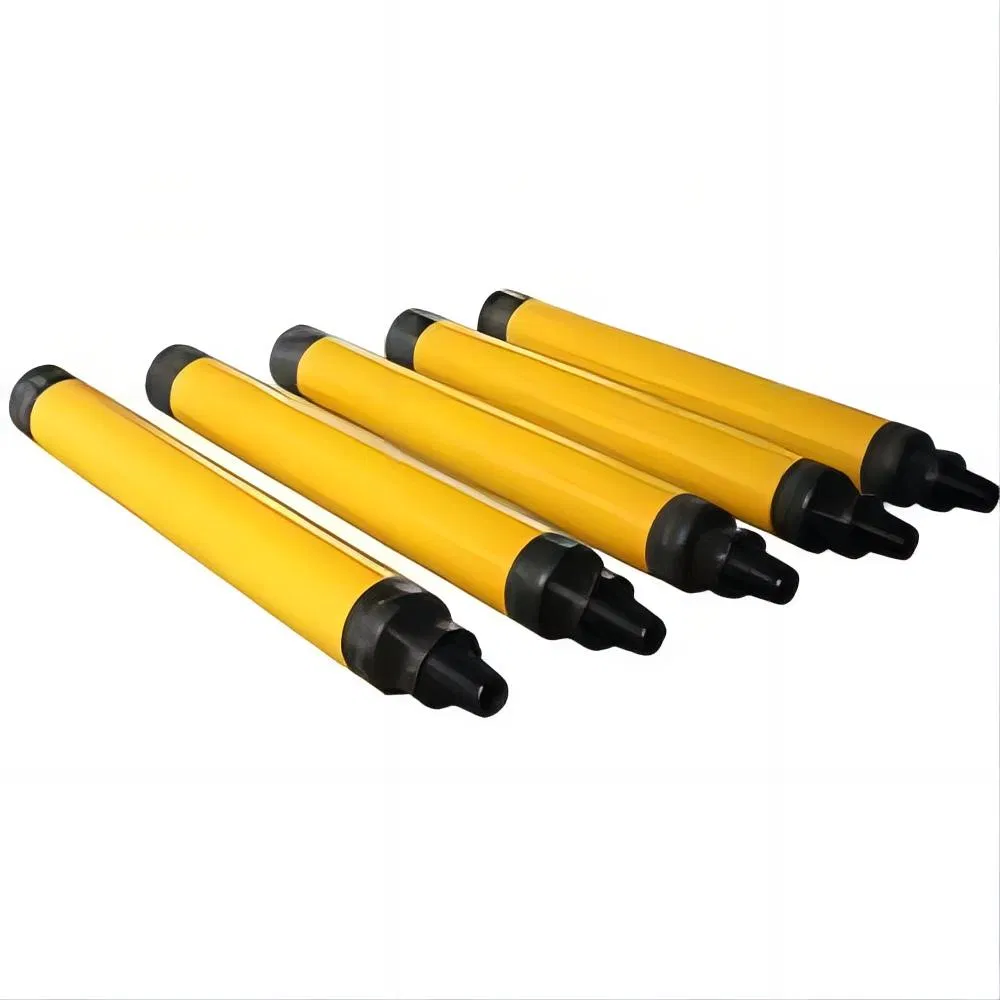

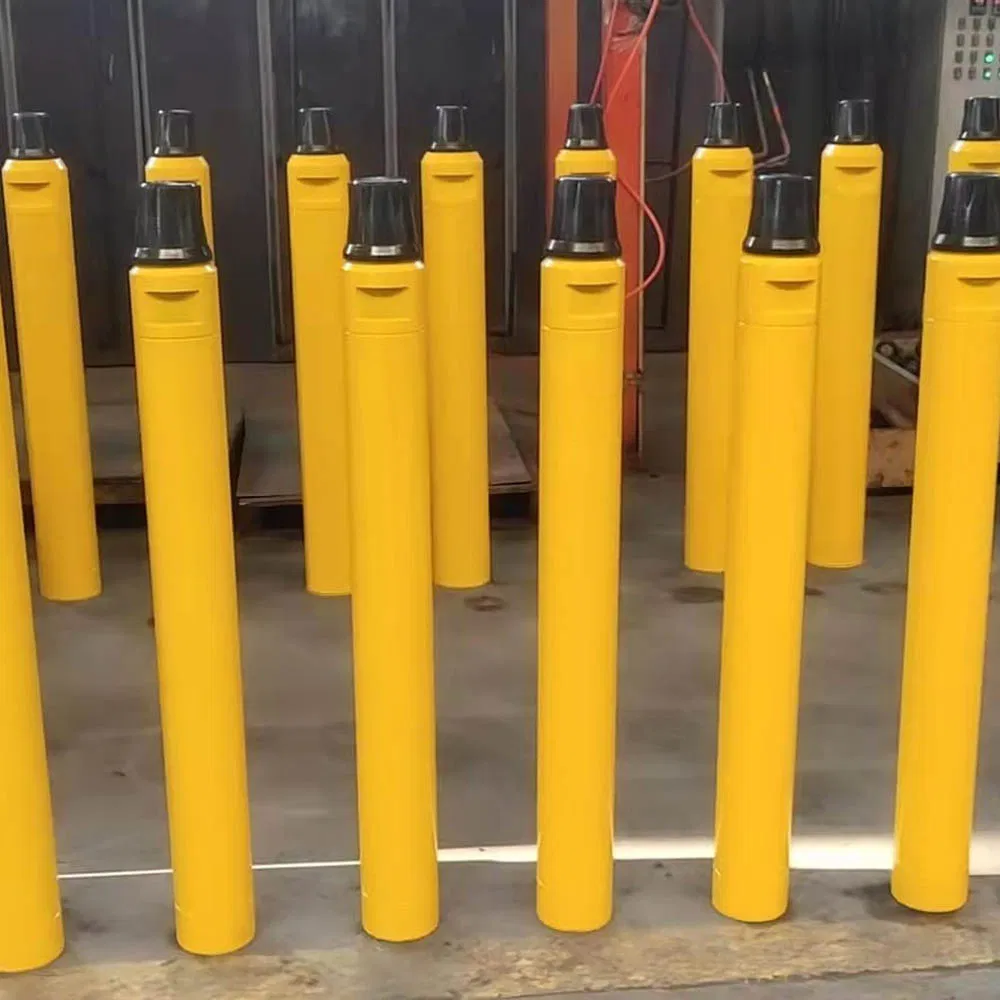

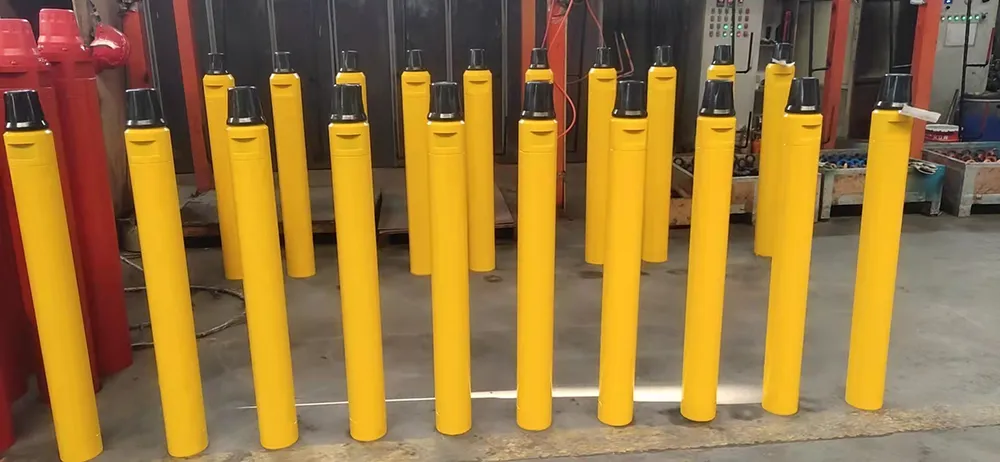

Detailed Photos

Packaging & Shipping

Frequently Asked Questions

What payment methods are accepted?

We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.

What is the expected handling time for an order?

Based on order quantity, production normally takes 25 days. If the requested size is in stock, it only takes 2 to 3 days.

What are the available shipping ways?

For sample orders, we suggest courier express (DHL/UPS/TNT/FEDEX) or air. For bulk orders, we suggest shipping by air or by sea.

How do you ensure product quality?

We have our own experienced QC team. Every order undergoes strict inspection and testing before being shipped out.

What kind of after-sales service do you provide?

Our team responds to questions within 24 hours. Technical support is always available, and we provide free replacements if a failure is confirmed to be caused by product quality issues.

Is the hammer compatible with different drill pipes?

Yes, our hammers are designed to be interchangeable with various DTH bits and drill pipes, featuring multihead thread connections for easy maintenance.
