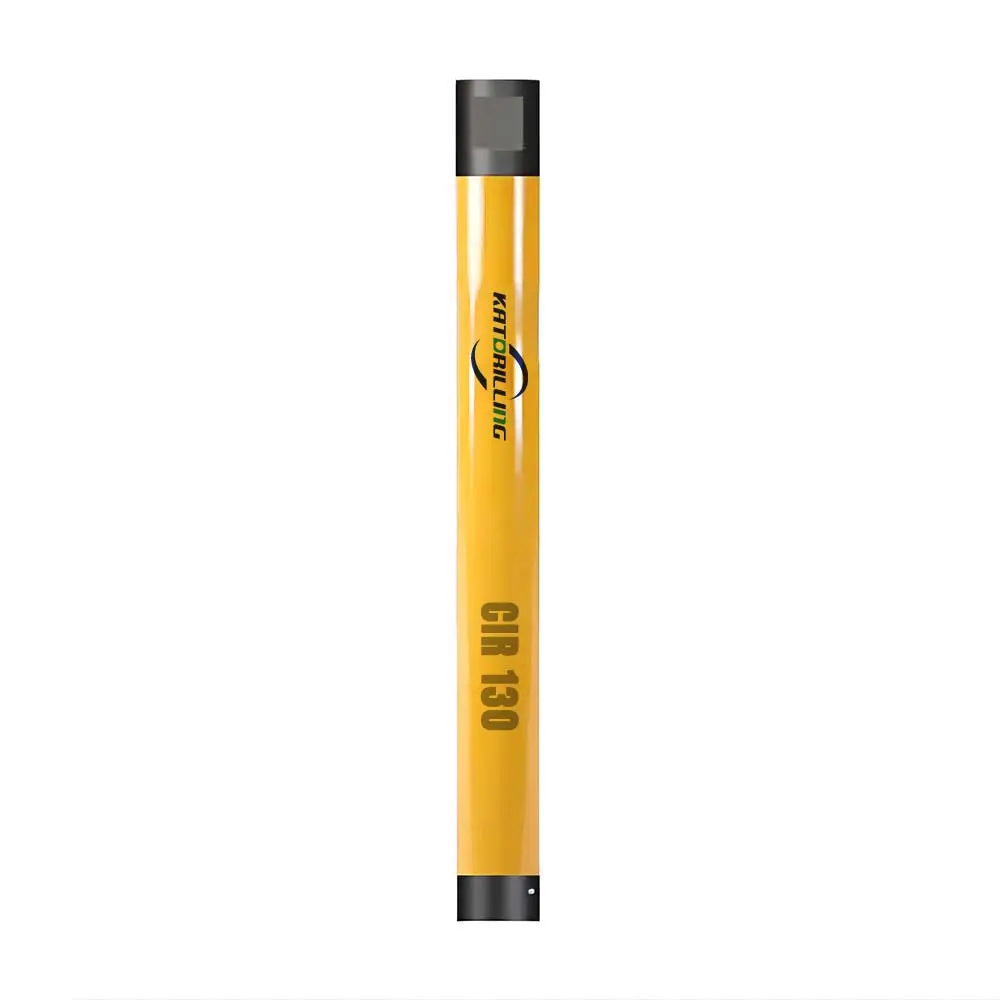

CIR130 Low Air Pressure DTH Hammer

CIR SERIESÂ

CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170

Send Inquiry

Product Description

Product Overview

CIR130 Steel Valve Design Patent Quarry Mining Low Air Pressure DTH Hammer

CIR SERIES DTH Hammers

Available Models: CIR50 / CIR60 / CIR65 / CIR76 / CIR90 / CIR110 / CIR130 / CIR150 / CIR170

Design Highlights

Low Air Pressure Performance: CIR series features steel valve type hammers designed for high performance at low operating air pressure.
Energy Optimization: Designed to maximize energy output while reducing overall service requirements.
Durability: Wear sleeve is not reversible to maintain structural integrity.
Quality Engineering: All critical internal components are heat treated under strict control to maximize tool longevity.

Exclusive Features

Patent Steel Valve Design: The patented steel valve design significantly increases work efficiency by at least 20% compared to standard models.

Technical Specifications

Specification Item	Details
Hammer Length (without bit)	882 (mm)
Top Sub Thread	API 2 3/8" REG BOX
Outside Diameter	112 (mm)
Weight	48.5 (KG)
Bit Diameter	130-175 (mm)
Working Pressure	5-10 (Bar)
Air Consumption	7-12 (M3/min)
Bit Shank	CIR110 / CIR130

Applications

These hammers are widely utilized across various industrial sectors for demanding tasks:

• Mine & Quarrying

• Road Construction

• Drilling & Blasting

• Water Well Drilling

• Slope Protection & Anchoring

Product Series Range

We provide a comprehensive range of DTH hammer series to meet diverse drilling needs:

High Pressure Series
Medium Pressure Series
Low Pressure Series
High Efficiency High Pressure Series
Reverse Circulation Series

Components & Part Numbers

No.	Item Description	Part Number
1	Top Sub	KAT130-01
2	Cap	KAT130-02
3	Check Valve	KAT130-03
4	Spring	KAT130-04
5	Shim	KAT130-05
6	Rubber Ring	KAT130-06
7	Valve Cap	KAT130-07
8	Valve	KAT130-08
9	Air Distributor	KAT130-09
10	Inner Cylinder	KAT130-10
11	Piston	KAT130-11
12	Guide Sleeve	KAT130-12
13	Driver Sub	KAT13013
14	Outer Sleeve	KAT13014

Frequently Asked Questions

What makes the CIR130 hammer different from other DTH hammers?

The CIR130 features a patented steel valve design specifically engineered for low air pressure environments, which increases working efficiency by at least 20%.

What is the recommended working pressure for this hammer?

The CIR130 is designed for low air pressure operations, typically ranging between 5 to 10 Bar.

What range of bit diameters can be used with the CIR130?

This hammer is compatible with bit diameters ranging from 130mm to 175mm.

Is the wear sleeve reversible?

No, the wear sleeve for the CIR series is designed to be non-reversible to ensure maximum structural stability during high-impact drilling.

What applications is this equipment best suited for?

It is ideal for quarry mining, road construction, water well drilling, anchoring, and slope protection projects requiring efficient drilling and blasting.

How is the longevity of the internal components ensured?

All critical internal components undergo strict, controlled heat treatment processes to maximize the tool's lifespan and resistance to wear.
