Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide a wide range of thread types including R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These high-performance tools are compatible with button bits, cross bits, and reaming products.
Our comprehensive range of rock drilling tools covers everything from 1" rope thread equipment up to T60 thread equipment. These tools are engineered to improve productivity considerably in various drilling environments.

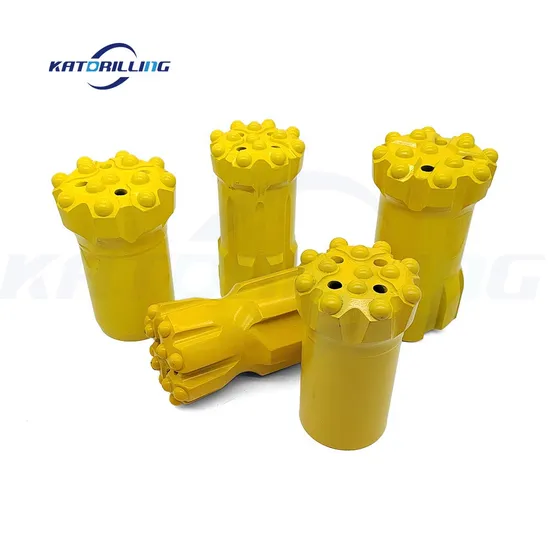

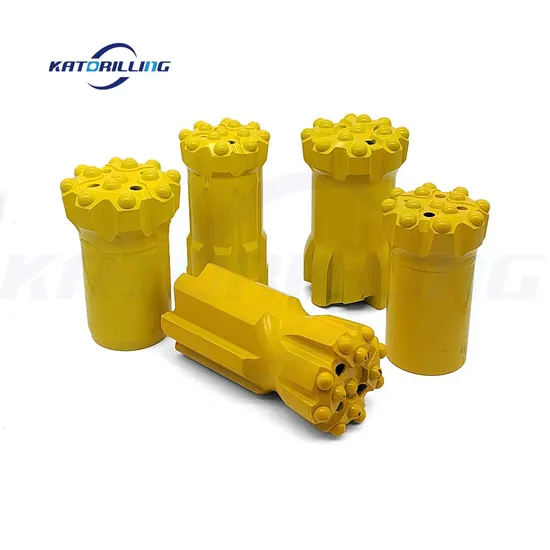

| Button bit-T38 Thread | Carbide Dimension | Dimensions D | Flushing Hole | |||||
| Gauge | Front | |||||||
| [No.] | [mm] | [No.] | [mm] | [mm] | [in] | Front | Side | |
| Standard | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| Standard | 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| Heavy Duty | 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| Heavy Duty | 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| Drop Center | Drop Center Configuration | |||||||
| DC Model | 6 | 10 | 3/1 | 10/9 | 64 | 2 1/2" | 3 | 0 |
| DC Model | 6 | 11 | 3/1 | 11/9.5 | 70 | 2 3/4" | 3 | 0 |
