Shank adapters are produced for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. Thus ensure them with superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. While female shank adapters are used when the drilling space is limited and the total feed length is important, for example underground roof bolting.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string (extension drill rods, drifting drill steels). Designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through carburizing.
| Brand | Compatible Models |
|---|---|

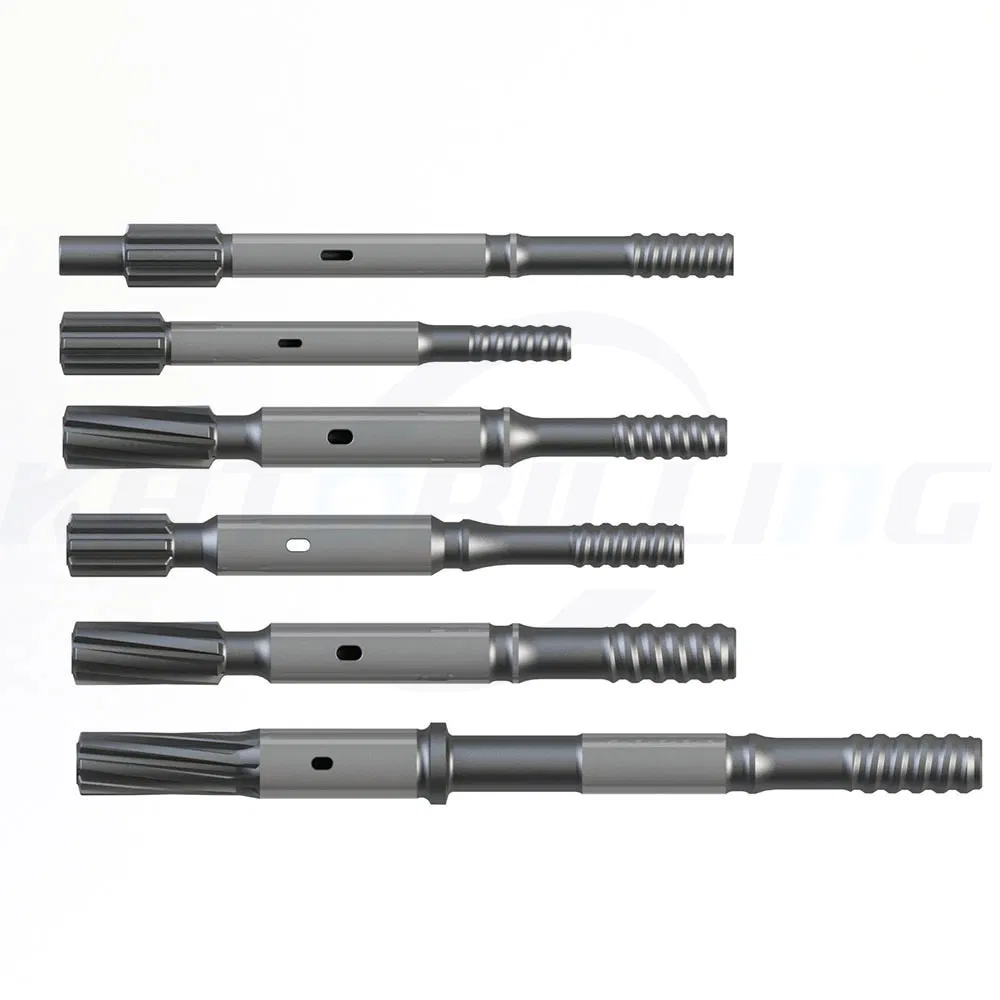

| Atlas Copco | vl140,bbc42,bbc44,bbc100,cop125,cop130,cop131EB,cop628,cop932,cop1032,cop1238,cop1640,cop1840,cop2150,cop2550,RD 18S, RD 22S, cop1638, cop1838, cop2238, etc. |

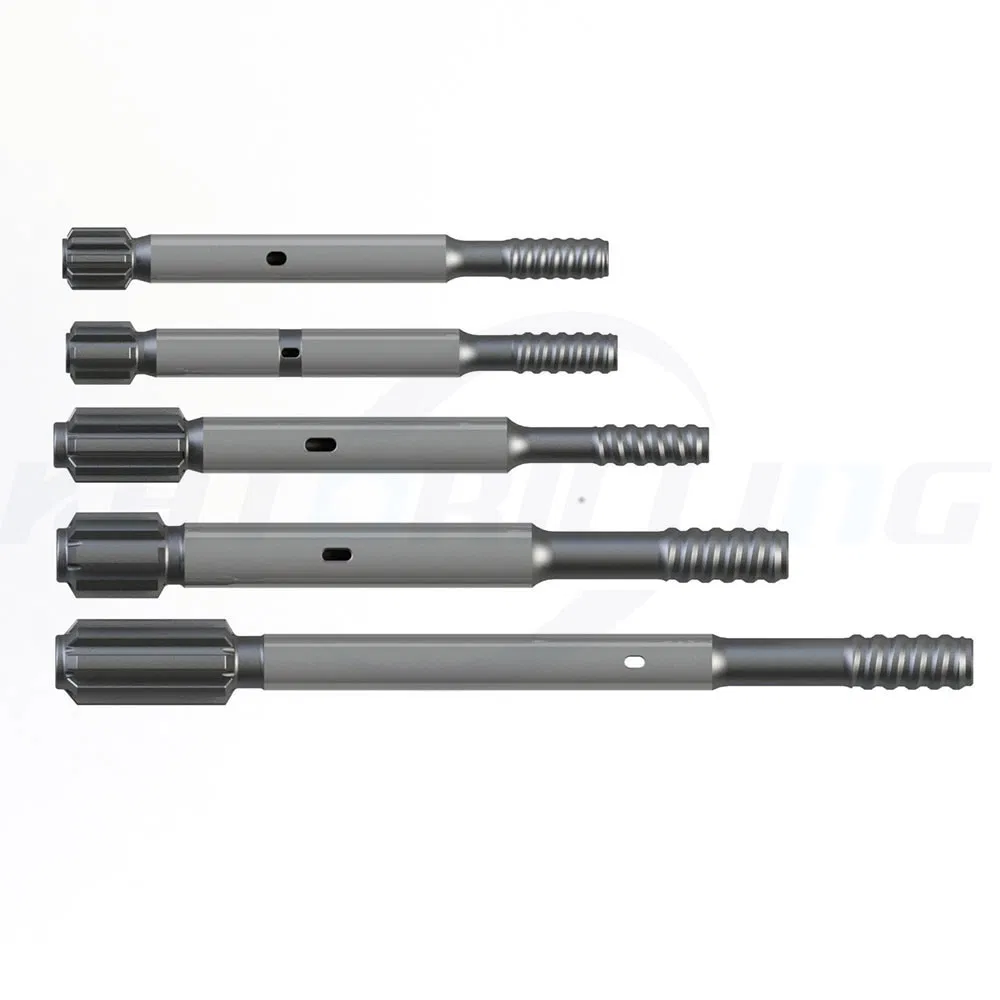

| Tamrock | HLX 1, RD106, RD314, RD414, HLX5, RDX5, HL500, HL510, HL600, HL700, HL800T, HL1000, HL1500T, RD900, etc. |

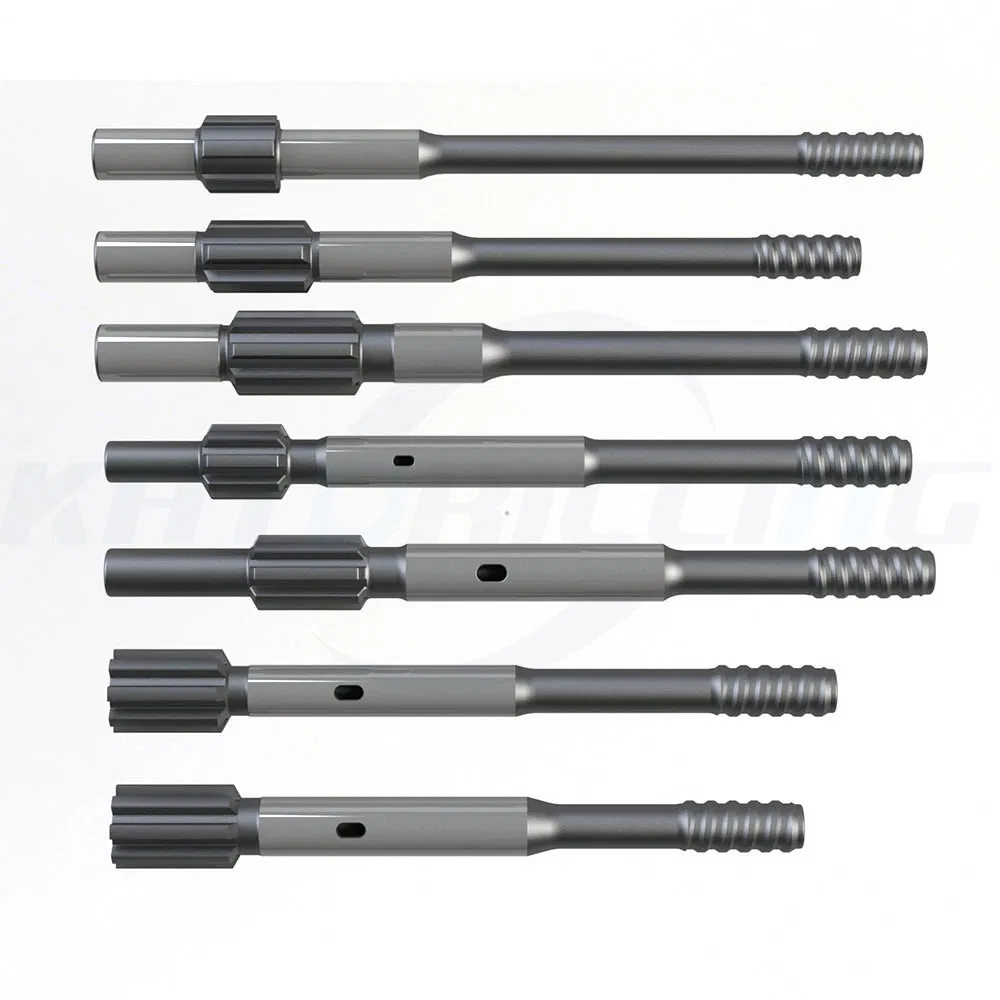

| Furukawa | HD 200, HD 260, HD 300, HD 500, HD 609, HD 612, HD 709, HD 709 QED, HD 712, HD 822 QED, HD 836, PD 200, etc. |

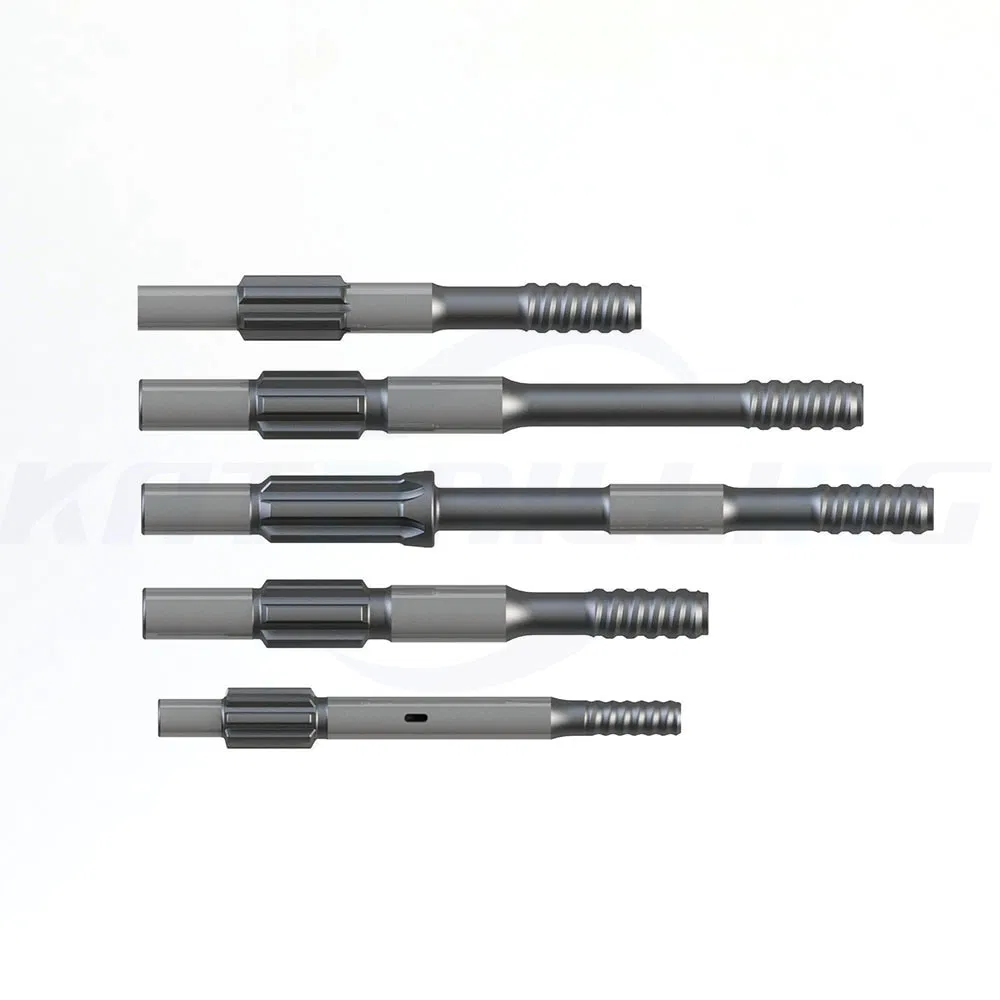

| Ingersoll-Rand | Hydrastar 200, VL 120, VL 140, EVL 130, YH 65, YH 70, YH 80A, YH 95 RP, YH 100 RP, YH 135, etc. |

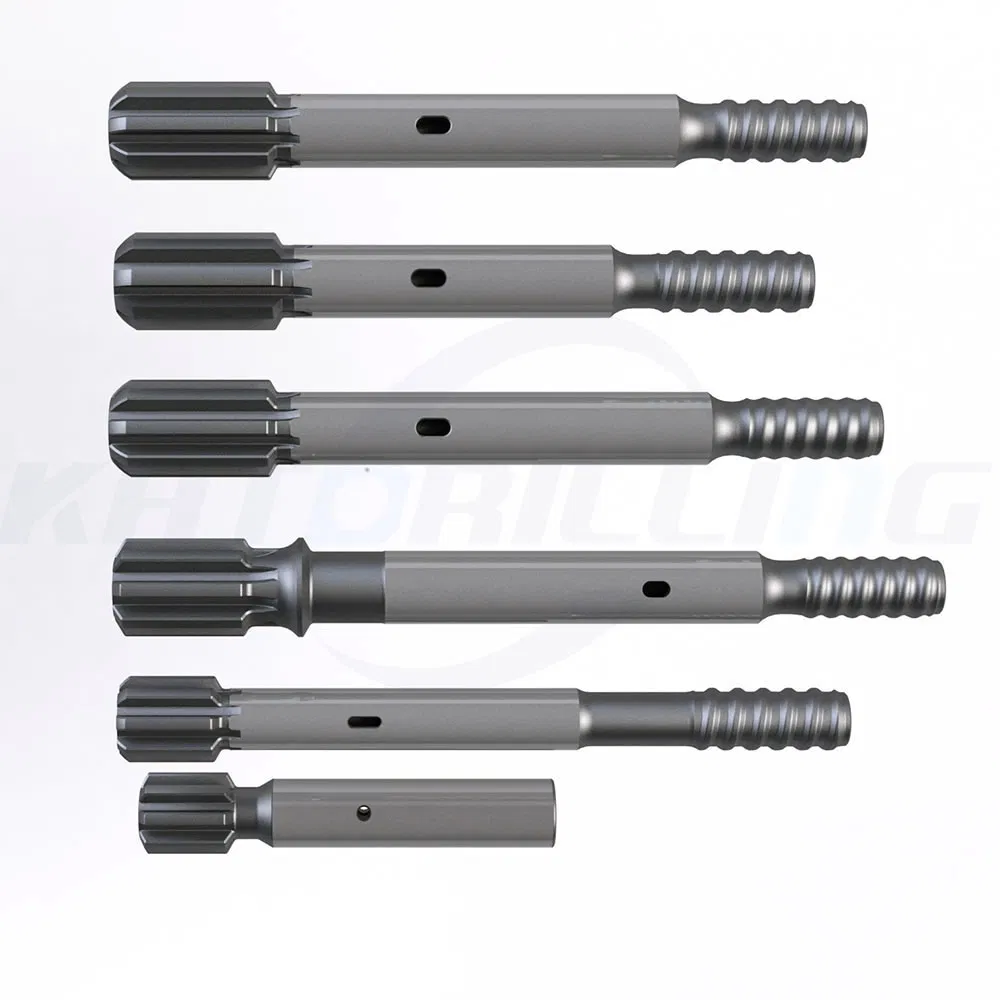

| Montabert | HC 20, hc25, hc40, hc50, hc80, hc120, hc90, HC 105 RP, HC 150 RP, hc160, hc170, hc200, etc. |
| Model Type | Thread | Overall Length (mm) | Overall Length (In.) | Front End Diameter (mm) |
|---|---|---|---|---|
| HD709 (STD) | T38 / T45 | 620 | 24.41 | 45 |
| HD709 (QED) | T38 / T45 | 785 | 30.91 | 45 |
| HD709 (QED) | T45 | 815 | 32.09 | 45 |
Drilling Rig Spare Parts Overview:
