Shank adapters are produced for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. Female shank adapters are used when the drilling space is limited and the total feed length is important, such as underground roof bolting.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string (extension drill rods, drifting drill steels). These components are designed to withstand the high impact power of modern rock drills and made from specially selected material hardened through carburizing.
| Adapted Models Compatibility | |
|---|---|

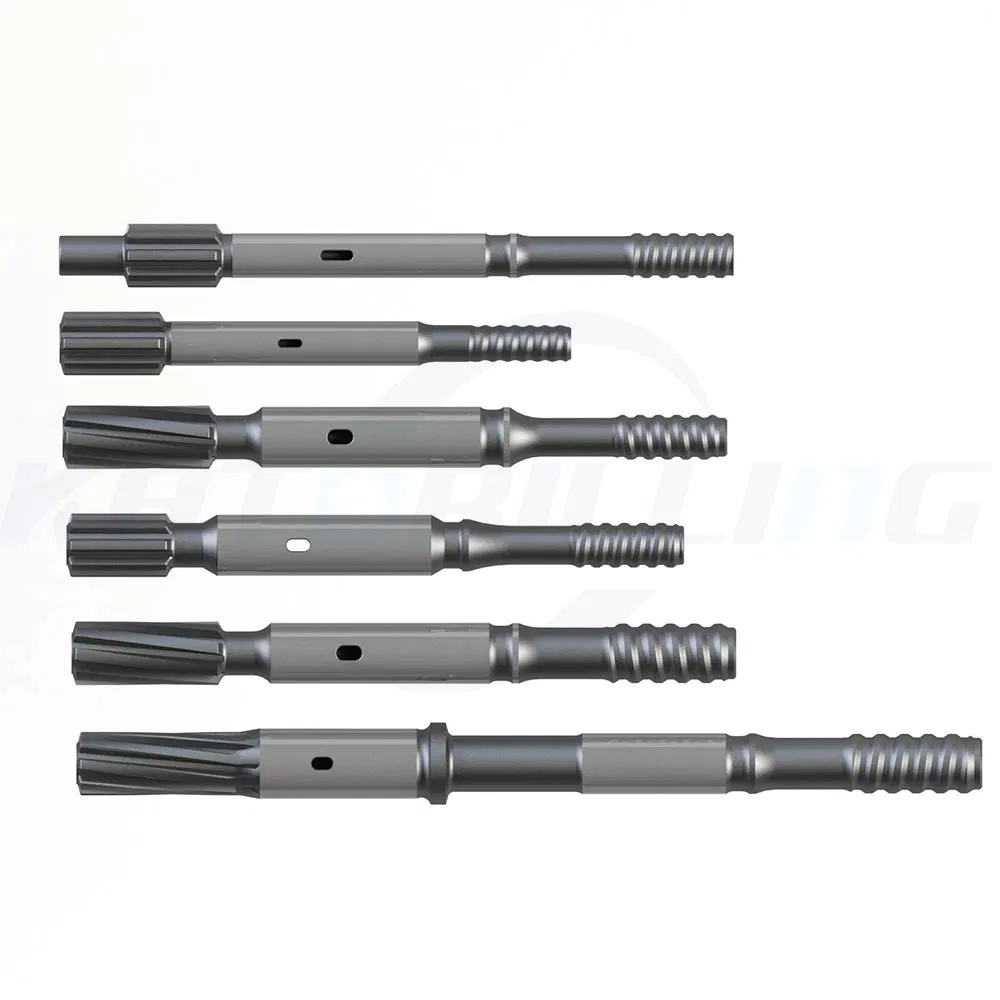

| Atlas Copco | vl140, bbc42, bbc44, cop125, cop131, cop1838, cop1840, cop2238, cop3038, and more. |

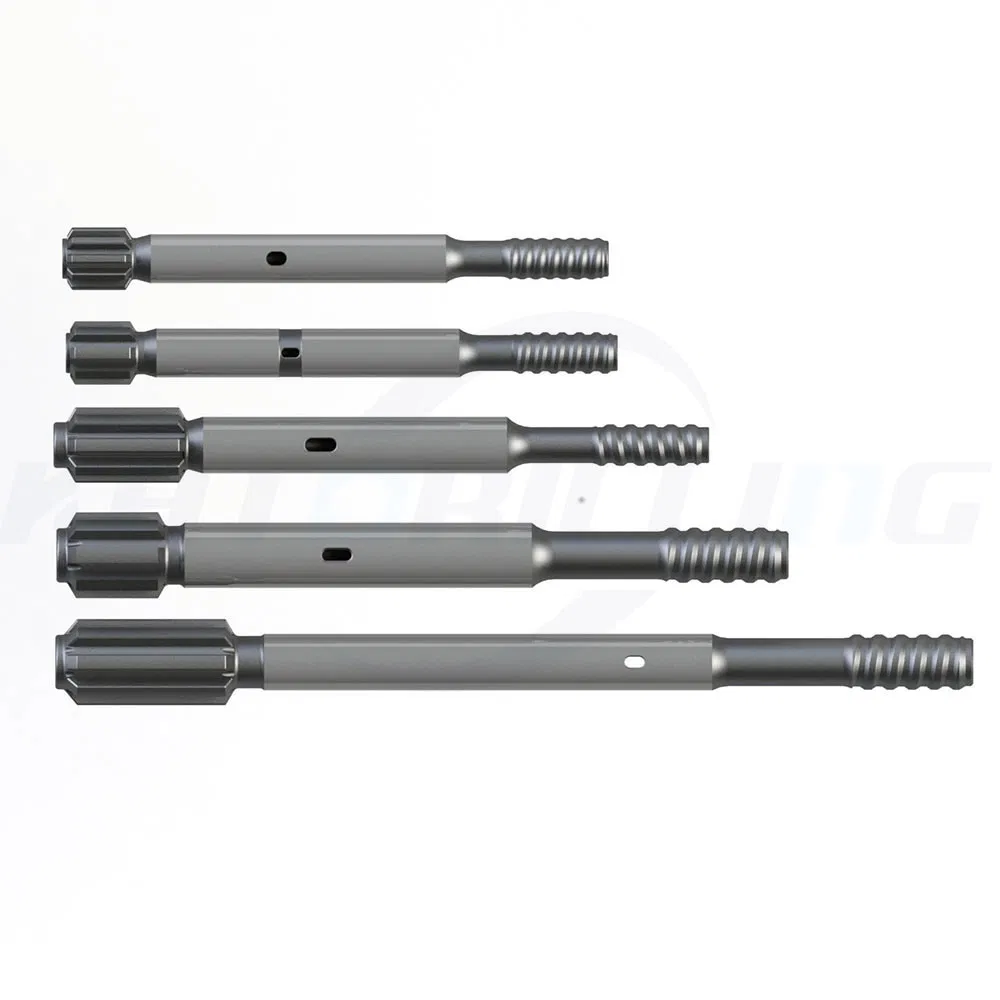

| Tamrock | HLX 1, RD106, HL300, RD314, HLX5, RD520 PE, HL500, HL600, HL710, HL820T, and more. |

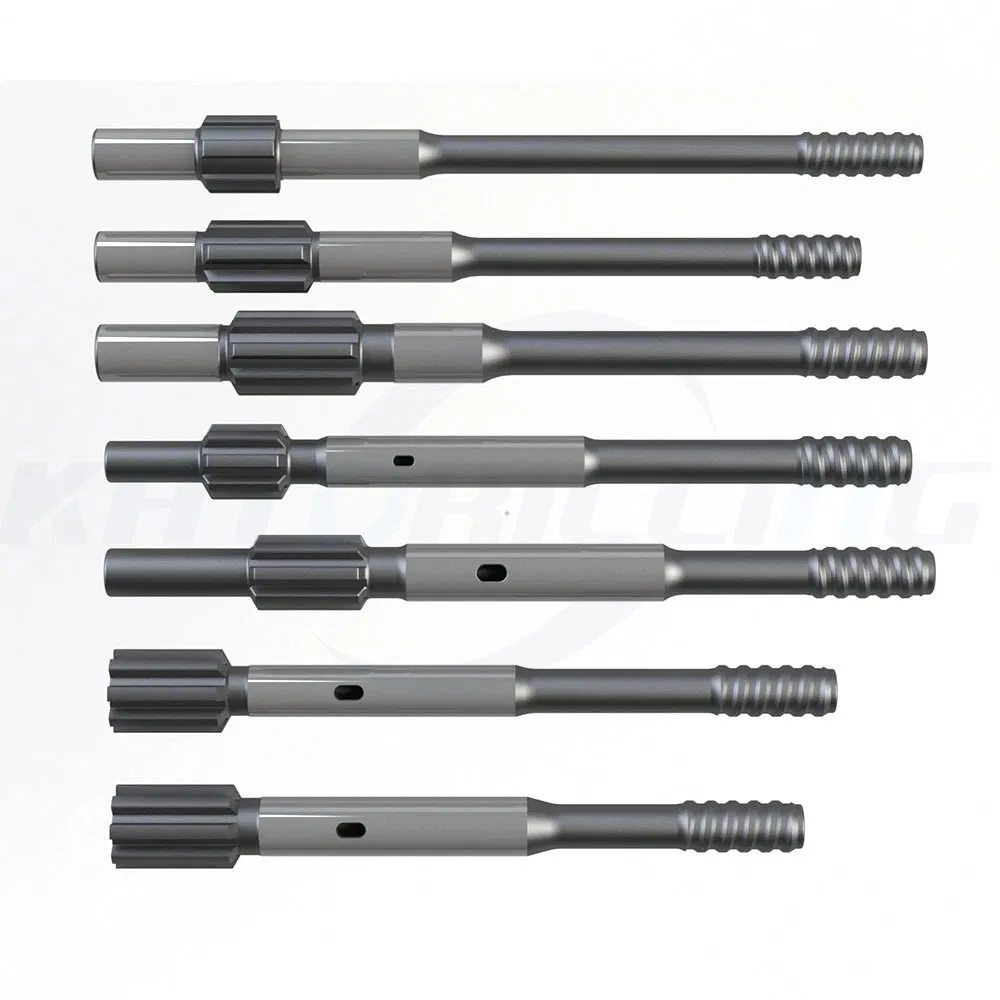

| Furukawa | HD 200, HD 300, HD 500, HD 609, HD 612, HD 712, HD 822 QED, PD 200, and more. |

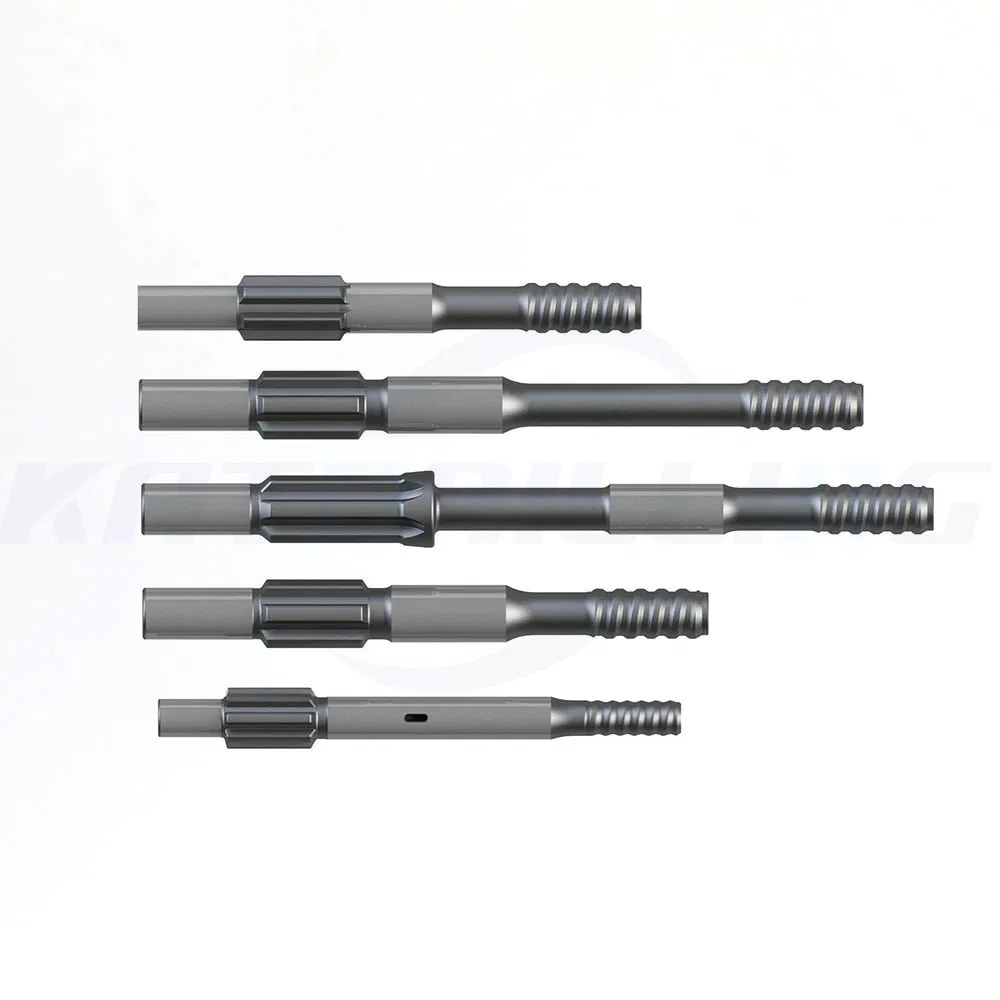

| Ingersoll-Rand | Hydrastar 200, VL 140, YH 65, YH 70, YH 80A, YH 100 RP, YH 135. |

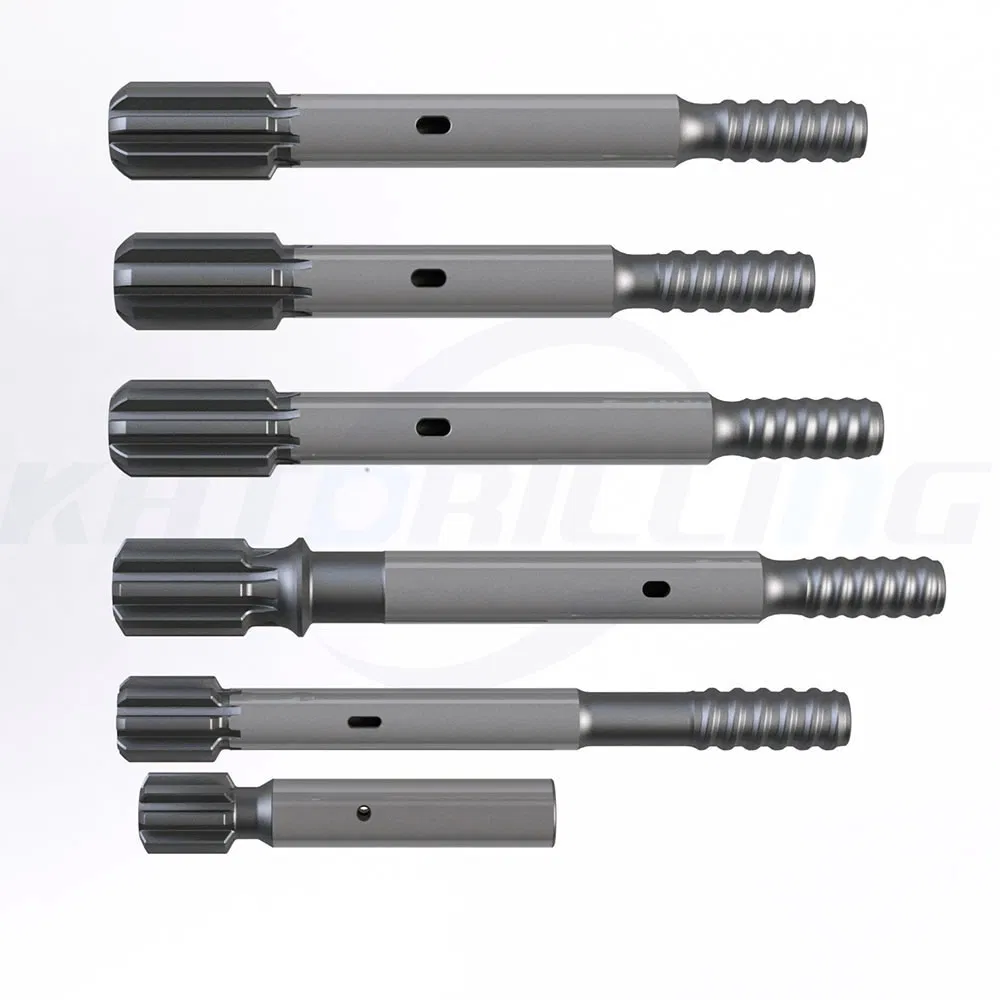

| Montabert | HC 20, hc40, hc50, hc80, hc120, hc105, HC 150 RP, hc200. |
| Other Brands | SIG, Boart Longyear, Gardner-Denver. |
| Image Reference | Thread | Overall Length (L) | Front End Diameter | ||
|---|---|---|---|---|---|
| - | - | mm | In. | mm | In. |
 |
T45 | 670 | 26.38 | 51 | 2.00 |
| - | T51 | 670 | 26.38 | 51 | 2.00 |
| HD 612 (QED) Series | |||||
 |
T45 | 845 | 33.27 | 51 | 2.00 |
| - | T51 | 845 | 33.27 | 51 | 2.00 |
