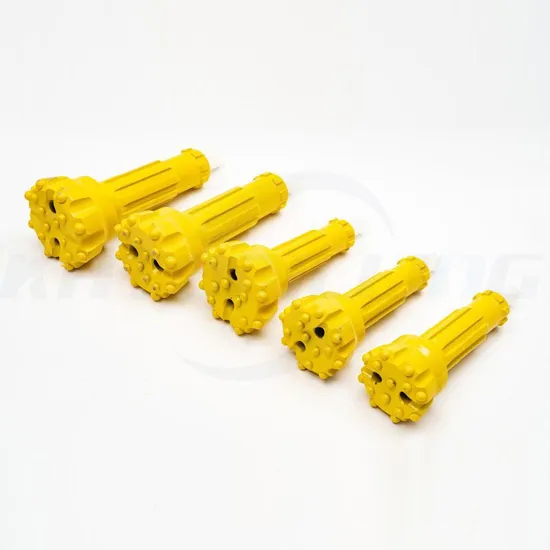

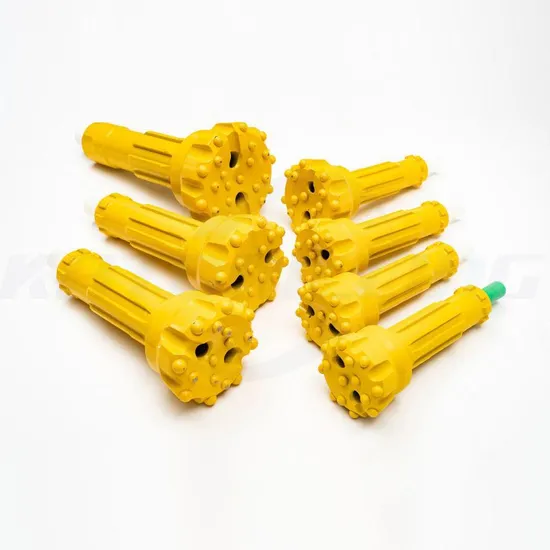

High-Quality DHD340 High Speed DTH Hammer Button Drill Bits for Blasthole Drilling Manufacturers, Pricelist

1 / 5

High-Quality DHD340 High Speed DTH Hammer Button Drill Bits for Blasthole Drilling Manufacturers, Pricelist

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

dth drill bit

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Material

Carbon Steel

Machine Type

Drilling Tools

Shank Adapter

CIR/DHD/M/Ql/SD

Tungsten Carbide

Yk05 or T6

Production Capacity

500,000 PCS/Month

Product Description

Down the hole (DTH) hammers have become an advanced drilling tool for the drilling and mining industries due to their economy and powerful drilling capacity. Our DTH hammers and drill bits are engineered to work in perfect unison, delivering high penetration rates, long service life, and minimal operational costs.

1Maximum Energy Transfer: Fast drilling speed and low air consumption due to specialized inner structure design.

2Superior Durability: High-quality alloy steel materials and advanced processing technology ensure long service life.

3Easy Maintenance: Simple and reliable inner structure for easy assembly and disassembly.

4Versatile Connection: Multihead thread connecting chuck allows for easy departure of the bit from the hammer.

Core Applications

✓ High pressure drilling rigs

✓ Water well drilling

✓ Mining & Mineral Exploration

✓ Bench drilling

✓ Civil Engineering Applications

✓ Oil well drilling

Technical Parameters

Bit Type	Shank Compatibility	Size Range
3" DTH Bits	DHD3.5, M30	90mm - 105mm
4" DTH Bits	DHD340, SD4, QL40, M40	110mm - 130mm
5" DTH Bits	DHD350, SD5, QL50, M50	135mm - 152mm
6" DTH Bits	DHD360, SD6, QL60, M60	152mm - 175mm
8" DTH Bits	DHD380, SD8, QL80, M80	200mm - 305mm
Low Pressure	CIR80, CIR90	80mm - 90mm

EPIROC & DHD Series Compatibility

Model	Gauge Carbide		Front Carbide		Dimensions (D)		Weight
Model	No.	mm	No.	mm	mm	inch	Kg
DHD 3.5	8	11	6	11	85	3 3/8"	4.2
DHD 3.5	8	12	6	12	92	3 5/8"	4.6
DHD 3.5	8	12	8	12	105	4 1/8"	5.4
COP 32	8	11	6	11	85	3 3/8"	3.7
COP 32	8	12	6	12	90	3 1/2"	4.2

Frequently Asked Questions

Q1: What are the main advantages of the HD series DTH hammer? The HD series features a specialized inner structure designed according to rock drilling theory, which maximizes energy transfer to the bit, providing faster drilling speeds and lower air consumption.

Q2: Which industries are these drilling tools suitable for? They are widely used in water well drilling, mining, mineral exploration, oil well drilling, and civil engineering projects.

Q3: What range of bit sizes do you offer? We provide a comprehensive range from 90mm up to 605mm for bits, and hammers ranging from 3" to 12" in size.

Q4: Are the bits compatible with standard shank adapters? Yes, our bits are interchangeable with major shank adapters including CIR, DHD, M, QL, and SD series.

Q5: How is the maintenance of the DTH hammer handled? The hammer is designed with a simple and reliable inner structure, making it very easy to assemble, disassemble, and maintain, which reduces downtime on site.

Q6: What material is used for the manufacturing process? The products are manufactured using high-quality Carbon Steel and alloy steel materials combined with advanced stamping and spray-paint surface treatments for maximum durability.
