High-Quality CIR65 Quarry Mining Low Air Pressure DTH Hammer Manufacturer, Manufacturers

Product Details
Customization: Available
After-sales Service: Repair or Replacement
Warranty: 6 Months

Product Description

Basic Information
Model NO.
CIR65
Certification
CE, ISO 9001:2000, ISO 9001:2008
Standard
AISI, GB
Surface Treatment
Spray-Paint
Manufacturing Process
Stamping
Material
Carbon Steel
Machine Type
Drilling Tools
Color
Red, Black, Yellow, White
Bit Adapter
CIR65
Length
745mm
Transport Package
Wooden Case
Origin
China
HS Code
82071990
Capacity
500000PCS/Month
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 30.00cm
Gross Weight
5.000kg
Product Description
Down the hole hammer is an advanced drilling tool for drilling and mining industries due to its economy and powerful drilling capacity. Hammers and drill bits are designed to work in perfect unison, providing high penetration rates, long service life, and low costs.
Maximum energy delivery to bit for fast drilling.
Low air consumption based on rock drilling theory.
High-quality alloy steel for smooth performance.
Simple inner structure for easy maintenance.
Multihead thread for easy bit separation.
Interchangeable with DTH bit and drill pipe.
Suitable Applications:
· High pressure drilling rigs | · Water well drilling | · Record breaking penetration | · Bench drilling | · Exploring Civil Engineering | · Mining / Mineral Exploration | · Oil well drilling.
High Pressure Hammer Specifications
Type Model Length (mm) Weight (kg) Ext. Dia (mm) Hole Range (mm)
3.5 inchDHD3.5930258290-110
4 inchDHD34010303999110-135
SD4108440.599
QL410974199
Mission4010054099
5 inchDHD350121476.5125135-155
SD5117572.5125
QL5114773125
Mission50111068.5125
6 inchDHD3601248100142155-190
SD61261100142
QL6121295146
Mission60116190146

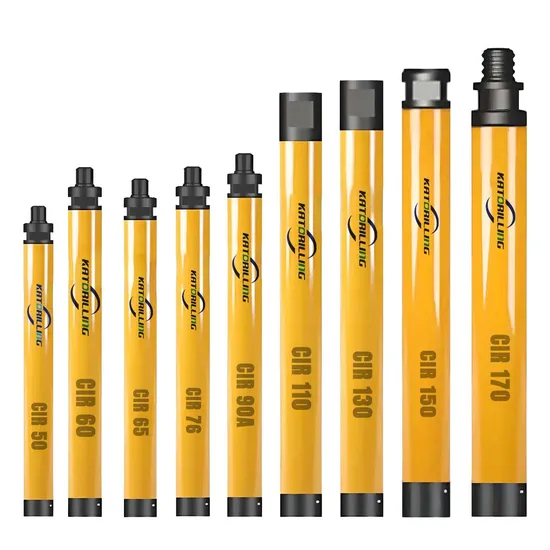

Low Air Pressure Hammers
Item Length (mm) Top Sub Thread O.D. (mm) Weight (kg) Bit Dia (mm) Pressure (Bar) Air Consumption
CIR-50628F32*8PIN445504-103-5 m³/min
CIR-60777F42*8PIN537.5604-103-7 m³/min
CIR-65745F42*10PIN6113654-106-12 m³/min
CIR-76811F48*10PIN6613.5764-106-10 m³/min
Frequently Asked Questions
What are the primary benefits of using these DTH hammers?
The hammers offer high economy, powerful drilling capacity, fast penetration speeds, and low air consumption due to their optimized internal structure.
Are both high and low-pressure hammers available?
Yes, we provide a full range of both low-pressure and high-pressure hammers to suit various drilling rigs and applications.
What materials are used for the hammer construction?
High-quality alloy steels and carbon steel are used, combined with advanced processing technologies to ensure long service life.
Is it difficult to maintain the inner structure?
No, the inner structure is designed to be simple and reliable, making it easy to assemble and disassemble for maintenance.
What size ranges are available for DTH bits?
We offer sizes ranging from 50mm to 605mm, with hammers available from 3" to 12" sizes.
How are the products packaged for transport?
All hammers and bits are typically packed in sturdy wooden cases to ensure safe delivery during international transport.
