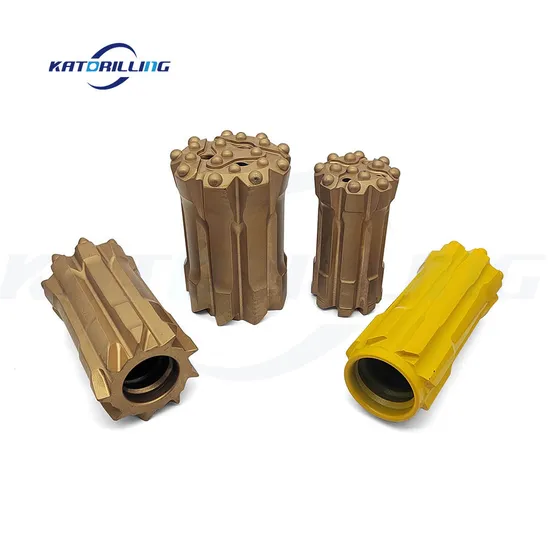

Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 9 threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. They can be used with button bits, cross bits and reaming products.
The comprehensive range of bench and production rock drilling tools includes everything from 1" rope thread equipment all the way up to T60 thread equipment. These tools are designed to improve productivity considerably in various drilling environments.
| Product Type | Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | |||||||
| No. | mm | No. | mm | mm | inch | Front | Side | |
| Button bit | 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| Button bit | 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| Button bit | 8 | 12.7 | 5 | 10 | 76 | 3" | 4 | 0 |
| Button bit | 8 | 14 | 6 | 12.7 | 102 | 4" | 4 | 2 |
| Flat Face | 8 | 11 | 6 | 11 | 76 | 3" | 2 | 0 |
| Flat Face | 8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
| Flat Face | 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| Flat Face | 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 |
| Drop Center | 6 | 14 | 3/2 | 12.7/9.5 | 89 | 3 1/2" | 3 | 0 |
| Drop Center | 8 | 11 | 4/1 | 10/10 | 76 | 3" | 4 | 0 |
