Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide 10 main threads: R3212, R32, HL38, T38, T45, T51, T60, ST58, GT60 and ST68. They are compatible with button bits, cross bits and reaming products.
The comprehensive range of bench and production rock drilling tools includes everything from 1” rope thread equipment up to T60 thread equipment. These drill rods, tubes and button bits are designed to improve productivity considerably in the market.

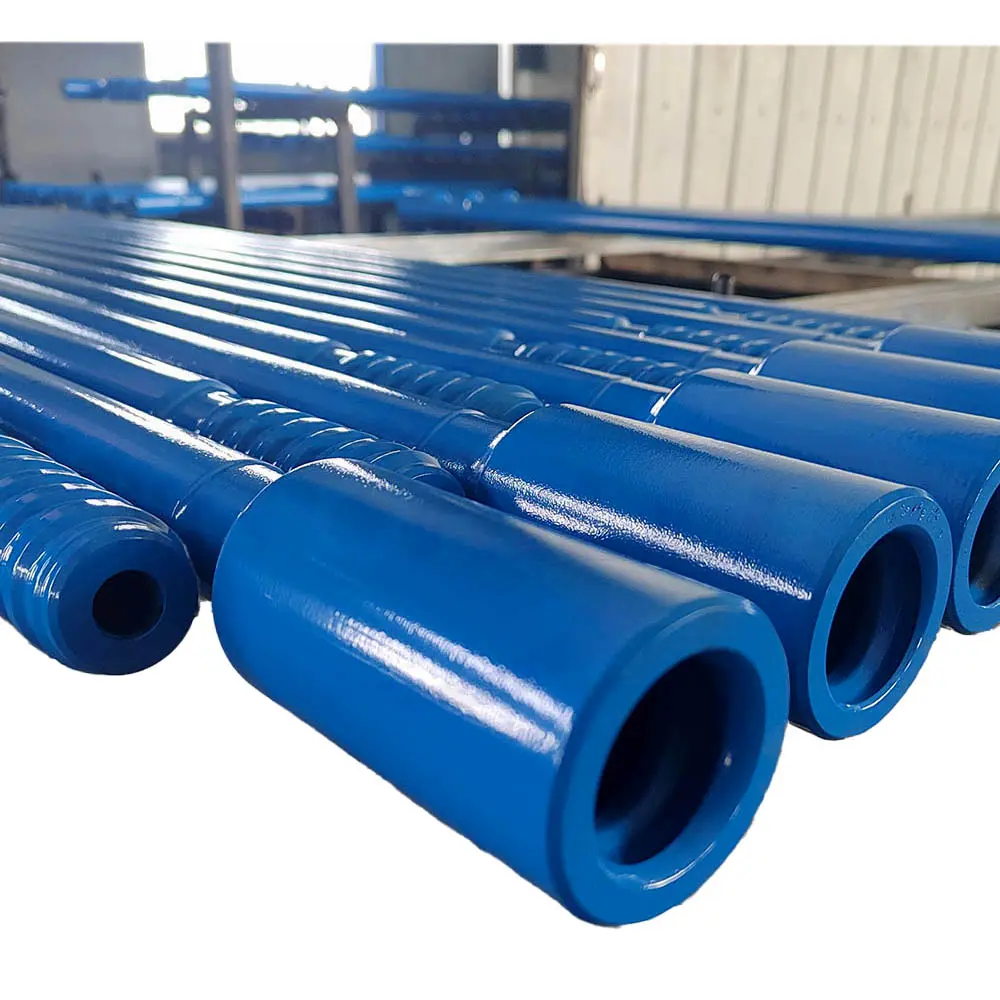

Male/Female (M/F) Rod & Speed Rod
M/F drill steel is an alternative to coupling sleeves, incorporating the female part of the threaded connection as an integral part of the drill steel. This provides a stronger connection and is easier to remove. The service life also tends to be better than with separate couplings.
| T51 - T51 - Rd 52 | 2" TRAPEZOIDAL THREAD (51mm) | Carburized | |||||
|---|---|---|---|---|---|
| Product Image | D (mm) | Length (mm) | Length (FT) | Thread Left | Thread Right |
 |
RD 52 | 1000 | 3' 3" | T51 | T51 |
| RD 52 | 1500 | 4' 11" | T51 | T51 | |
| RD 52 | 3050 | 10' | T51 | T51 | |
| RD 52 | 4265 | 14' | T51 | T51 | |
| RD 52 | 6095 | 20' | T51 | T51 | |
| MF-Rod T51 - T51 - Rd 52 | 2" TRAPEZOIDAL THREAD (51mm) | Carburized | |||||
|---|---|---|---|---|---|
| Product Image | D (mm) | Length (mm) | Length (FT) | Thread Left | Thread Right |
 |
72 | 1525 | 5' | T51F | T51 |
| 72 | 3050 | 10' | T51F | T51 | |
| 72 | 4270 | 14' | T51F | T51 | |
| 72 | 6100 | 20' | T51F | T51 | |
| MF-Tube T51 - Rd 76/87 | 2" TRAPEZOIDAL THREAD | Carburized | |||||
|---|---|---|---|---|---|
| Product Image | D (mm) | Length (mm) | Length (FT) | Thread Left | Thread Right |
|
76 | 1830 | 6' | T51F | T51 |
| 76 | 3660 | 12' | T51F | T51 | |
| 87 | 3050 | 10' | T51F | T51 | |
