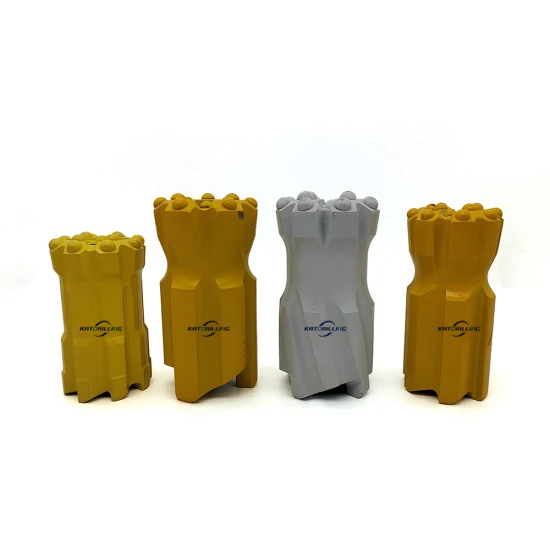

Bench and production drilling tools include rods, shank adapters, couplings and bits. A wide range of threads is available including: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. These are compatible with button bits, cross bits and reaming products.
The comprehensive range of bench and production rock drilling tools includes everything from 1" rope thread equipment all the way up to T60 thread equipment. These drill rods, tubes, and button bits are designed to improve productivity considerably in various drilling environments.
| Carbide Gauge | Carbide Front | Dimensions (D) | Flushing Hole | ||||
|---|---|---|---|---|---|---|---|
| No. | mm | No. | mm | mm | inch | Front | Side |
| 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| 8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
| 8 | 12.7 | 6 | 11 | 85 | 3 3/8" | 2 | 1 |
| 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 |
| 8 | 16 | 6 | 14 | 115 | 4 1/2" | 2 | 0 |
| 8 | 16 | 8 | 14 | 127 | 5" | 2 | 0 |
| 8 | 16 | 8 | 16 | 140 | 5 1/2" | 2 | 0 |
| 8 | 12.7 | 5 | 12.7 | 89 | 3 1/2" | 4 | 2 |
| 8 | 14 | 6 | 12.7 | 102 | 4" | 4 | 2 |
| 8 | 16 | 7 | 14 | 121 | 4 3/4" | 4 | 2 |
| 9 | 11 | 8 | 10 | 89 | 3 1/2" | 3 | 1 |
| 9 | 12.7 | 8 | 12.7 | 102 | 4" | 3 | 1 |
| 9 | 14 | 9 | 12.7 | 115 | 4 1/2" | 3 | 1 |
