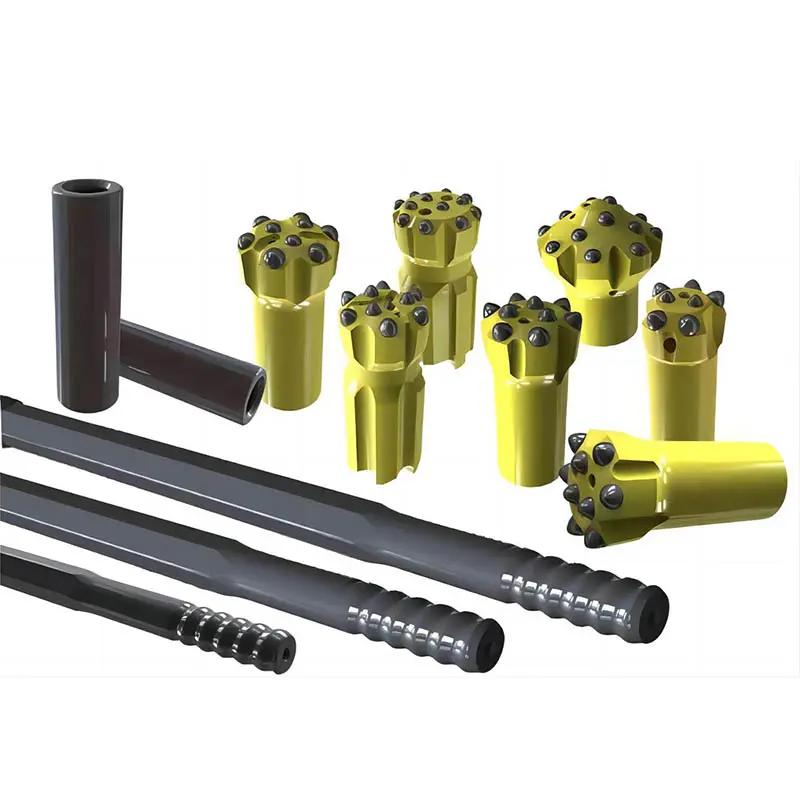

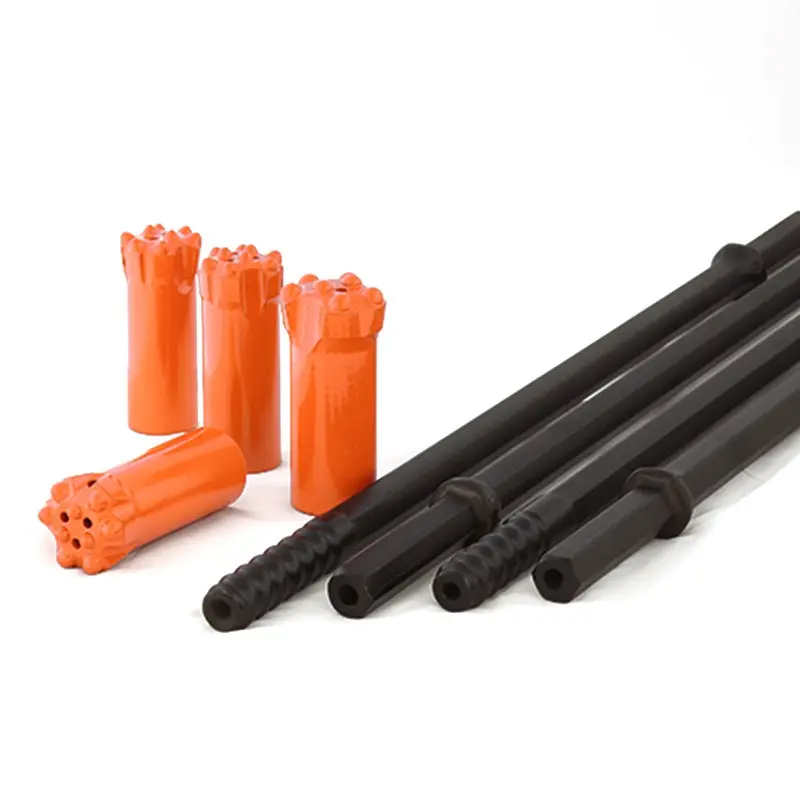

Drifting and tunnelling tools include rods, shank adapters, couplings and bits. We provide a comprehensive range of high-performance components designed for the most demanding underground environments.
Our thread selection covers 11 major standards: SR22, SR25, R25, SR28, R28, SR32, R32, SR38, R38, and T35. With diameters ranging from 38mm to 127mm, these tools are fully compatible with button bits, cross bits, and reaming products.
The thread button bits are manufactured from high-quality alloy steel bars and premium tungsten carbides. Through advanced heat treatment, these bits withstand the toughest rock drilling demands, transmitting intensive impact energy into the rock with minimal energy loss. Popular specifications include the R28 37mm/38mm, R32 45mm/48mm/51mm, as well as Button Bits, Retrac Bits, and various drill rods like the H35, TUN ROD T38-Hex35-R32, and MF rods.
⚙️Product Gallery & Specifications
🔩SR35 Drill Rod Technical Data
 |
| HEX 35 |
3700 |
12' 1-1/2" |
R38 |
SR35 |
| HEX 35 |
4305 |
14' 1-1/2" |
R38 |
SR35 |
| HEX 35 |
4915 |
16' 1-1/2" |
R38 |
SR35 |
| HEX 35 |
5530 |
18' 1-1/2" |
R38 |
SR35 |
 |
| HEX 35 |
3050 |
10' |
T38 |
SR35 |
| HEX 35 |
3700 |
12' 1-1/2" |
T38 |
SR35 |
| HEX 35 |
4305 |
14' 1-1/2" |
T38 |
SR35 |
| HEX 35 |
4915 |
16' 1-1/2" |
T38 |
SR35 |
| HEX 35 |
5525 |
18' 1-1/2" |
T38 |
SR35 |
| HEX 35 |
6140 |
20' 1-1/2" |
T38 |
SR35 |
| HEX 35 |
6400 |
21' |
T38 |
SR35 |
❓Frequently Asked Questions
What materials are used in these drilling tools?
Our drifting and tunneling tools are manufactured using high-quality alloy steel bars and premium tungsten carbides, treated with professional heat processes for maximum durability.
What thread types are available for the rods and bits?
We offer 11 main thread types, including SR22, SR25, R25, SR28, R28, SR32, R32, SR38, R38, SR35, and T35 to ensure compatibility with various drilling equipment.
What is the diameter range for the tunneling bits?
The tools are available in diameters ranging from 38mm up to 127mm, suitable for button bits, cross bits, and reaming applications.
Do you offer different rod cross-sections?
Yes, we provide both Hexagonal (HEX 35) and Round (RD 39) drifter rods in various lengths to suit specific drifting and tunneling needs.
What makes the button bits suitable for tough rock?
The combination of superior alloy steel and heat-treated tungsten carbide allows the bits to transmit high-intensity impact energy efficiently while withstanding extreme abrasive conditions.
Are MF (Male/Female) rods available?
Yes, MF rods are part of our standard product line and are highly welcomed by clients for their quality and performance in tunneling operations.
