Introducing the Shank Adapter for Montabert HC80 HC90 HC109 HC120 HC108 HC105 Drill Rig.
Are you in need of a high-quality shank adapter for Montabert series drill rigs?
Our adapters are engineered to provide maximum durability and efficiency for demanding rock drilling applications.
High Compatibility
Designed for HC80 to HC120 models
Premium Material
High-strength alloy steel construction
Precision Thread
Available in R32, R38, and T38

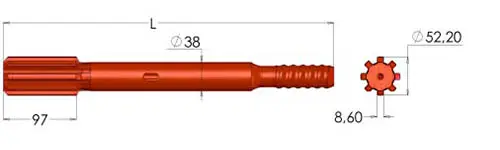

Product Specifications
MONTABERT - HC 80, 90, 105, 108, 109, 120
THREAD
OVERALL LENGTH (L)
FRONT END DIA.
Product No.
mm
In.
mm
In.
R32
440
17.32
38
1.5
90515893
R38
440
17.32
38
1.5
90515964
T38
440
17.32
38
1.5
7304-4720-01
90515985
R32
500
19.69
38
1.5
-
R38
500
19.69
38
1.5
-
T38
500
19.69
38
1.5
90515987
Frequently Asked Questions
Which Montabert models are these shank adapters compatible with?
These shank adapters are specifically designed for Montabert HC series drifters, including models HC80, HC90, HC105, HC108, HC109, and HC120.
What thread types do you offer for these shank adapters?
We provide a full range of industry-standard threads including R32, R38, and T38 to match your specific drilling equipment and rod requirements.
Are there different length options available?
Yes, we offer standard lengths of 440mm (17.32 inches) and 500mm (19.69 inches) for the Montabert HC series to accommodate different rig setups.
What material is used for the shank adapters?
Our shank adapters are manufactured from premium high-strength alloy steel and undergo specialized heat treatment to ensure maximum fatigue strength and wear resistance.
Why is choosing the correct shank adapter important?
A high-quality, correctly matched shank adapter ensures efficient energy transmission from the rock drill to the drill string, reducing stress on the drifter and extending the life of your drilling tools.
How do I verify the correct part number for my rig?
You can refer to our specification table above which lists OEM cross-reference numbers like 90515893, 90515964, and 7304-4720-01 to ensure a perfect fit.
