Shank adapter for SANDVIK HL 500-45, HL510-45, HL510S, HL550S, HL560S Drill Rig
⚙️

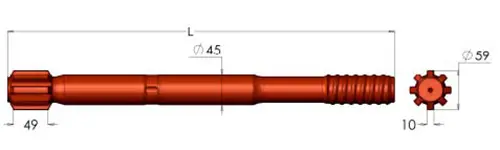

Product Specification: SANDVIK - HL 500-45, 510-45 Series professional grade shank adapters designed for high-performance drilling operations.
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
Product no. |
| mm |
In. |
mm |
In. |
Reference 1 |
Reference 2 |
| R32 |
460 |
17.72 |
45 |
1.75 |
- |
- |
| T35 |
500 |
19.69 |
45 |
1.75 |
7307-7566-01 |
- |
| R38 |
500 |
19.69 |
45 |
1.75 |
7804-7554-01 |
90516171 |
| T38 |
500 |
19.69 |
45 |
1.75 |
7304-7554-01 |
90516188 |
| T35 |
550 |
21.65 |
45 |
1.75 |
7307-7557-01 |
- |
| R32 |
550 |
21.65 |
45 |
1.75 |
7803-7557-01 |
- |
| T38 |
550 |
21.65 |
45 |
1.75 |
7304-7557-01 |
90516187 |
| T45 |
550 |
21.65 |
45 |
1.75 |
7305-7557-01 |
90516207 |
Frequently Asked Questions
What drill rigs are these shank adapters compatible with?
These shank adapters are specifically designed for SANDVIK drill rigs, specifically models HL 500-45, HL510-45, HL510S, HL550S, and HL560S.
What are the available thread types for the HL 500-45 series?
The available thread options include R32, T35, R38, T38, and T45, catering to various drilling requirements and rod connections.
What is the standard front end diameter for these adapters?
The front end diameter for this specific series is standardized at 45mm (1.75 inches).
What overall lengths are offered in this product range?
The adapters come in two primary lengths: 460mm, 500mm (19.69 inches) and 550mm (21.65 inches), depending on the specific thread type selected.
How do I verify the correct product number for my order?
You can cross-reference your required thread type and length with the product numbers provided in our specification table (e.g., 7304-7554-01 for a T38 thread at 500mm).
Are these shank adapters suitable for heavy-duty drilling?
Yes, they are manufactured to withstand high impact and torque loads typical of Sandvik HL series hydraulic drifters.
