High-performance drifting and tunnelling tools are essential for modern mining and construction. Our comprehensive range includes drill rods, shank adapters, couplings, and premium drill bits, designed for durability and precision in the most demanding environments.
| Product View | Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|
| Gauge | Front | [mm] | [in] | Front | Side | |||
| [No.] | [mm] | [No.] | [mm] | |||||
 |
5 | 7 | 2 | 7 | 32 | 1 1/4" | 1 | 1 |
| 5 | 7 | 2 | 7 | 33 | 1 5/16" | 1 | 1 | |
| 5 | 8 | 2 | 7 | 35 | 1 3/8" | 1 | 1 | |
| 5 | 8 | 2 | 7 | 36 | 1 13/32" | 1 | 1 | |
| 5 | 9 | 2 | 7 | 38 | 1 1/2" | 1 | 1 | |
 |
5 | 9 | 2 | 9 | 41 | 1 5/8" | 1 | 1 |
| 5 | 9.5 | 2 | 8 | 43 | 1 11/16" | 1 | 1 | |
| 5 | 10 | 2 | 9 | 45 | 1 3/4" | 1 | 1 | |
| 5 | 11 | 2 | 10 | 51 | 2" | 1 | 1 | |
| Visual | Gauge No. | Gauge mm | Front No. | Front mm | Dim [mm] | Dim [in] | Hole Front | Hole Side |
|---|---|---|---|---|---|---|---|---|
 |
6 | 9 | 3 | 9 | 48 | 1 7/8" | 3 | 1 |
| - | 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| Type | Carbide Dimension | Dimensions D | Flushing Hole | |||
|---|---|---|---|---|---|---|
| Width [mm] | Height [mm] | [mm] | [in] | Front | Side | |
| R25 Cross Bit | 8 | 14 | 35 | 1 3/8" | 1 | 4 |
| Standard | 8 | 14 | 38 | 1 1/2" | 1 | 4 |
| Standard | 8 | 14 | 45 | 1 3/4" | 1 | 4 |
| Standard | 9.5 | 19 | 51 | 2" | 1 | 4 |
A1: The drill bit bodies are made from high-strength 50R61 steel, and the cutting heads utilize premium YK05 or T6 grade tungsten carbide for maximum wear resistance.
A2: We offer 11 main thread types, including SR22, SR25, R25, SR28, R28, SR32, R32, SR38, R38, and T35 to ensure compatibility with most standard drilling rigs.

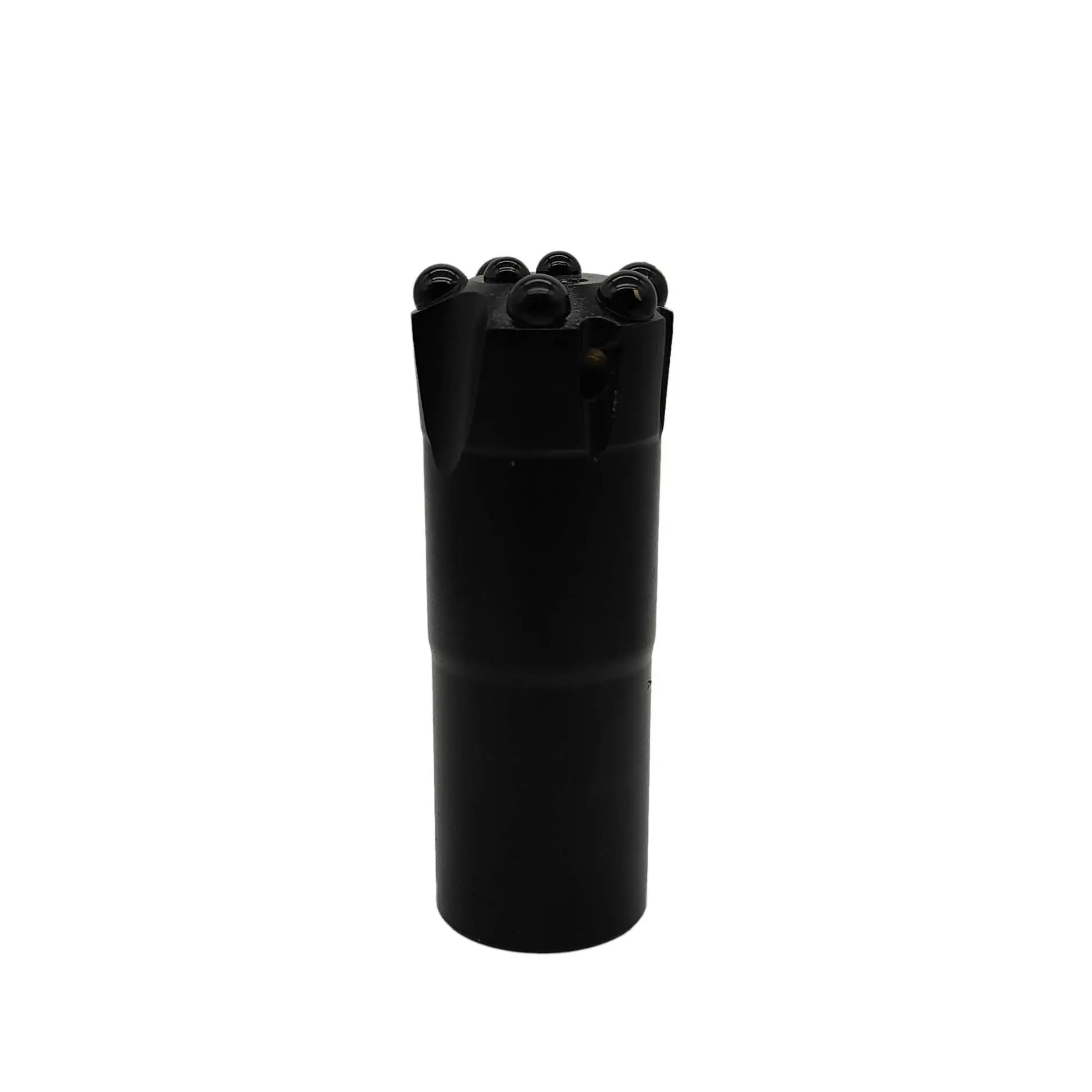

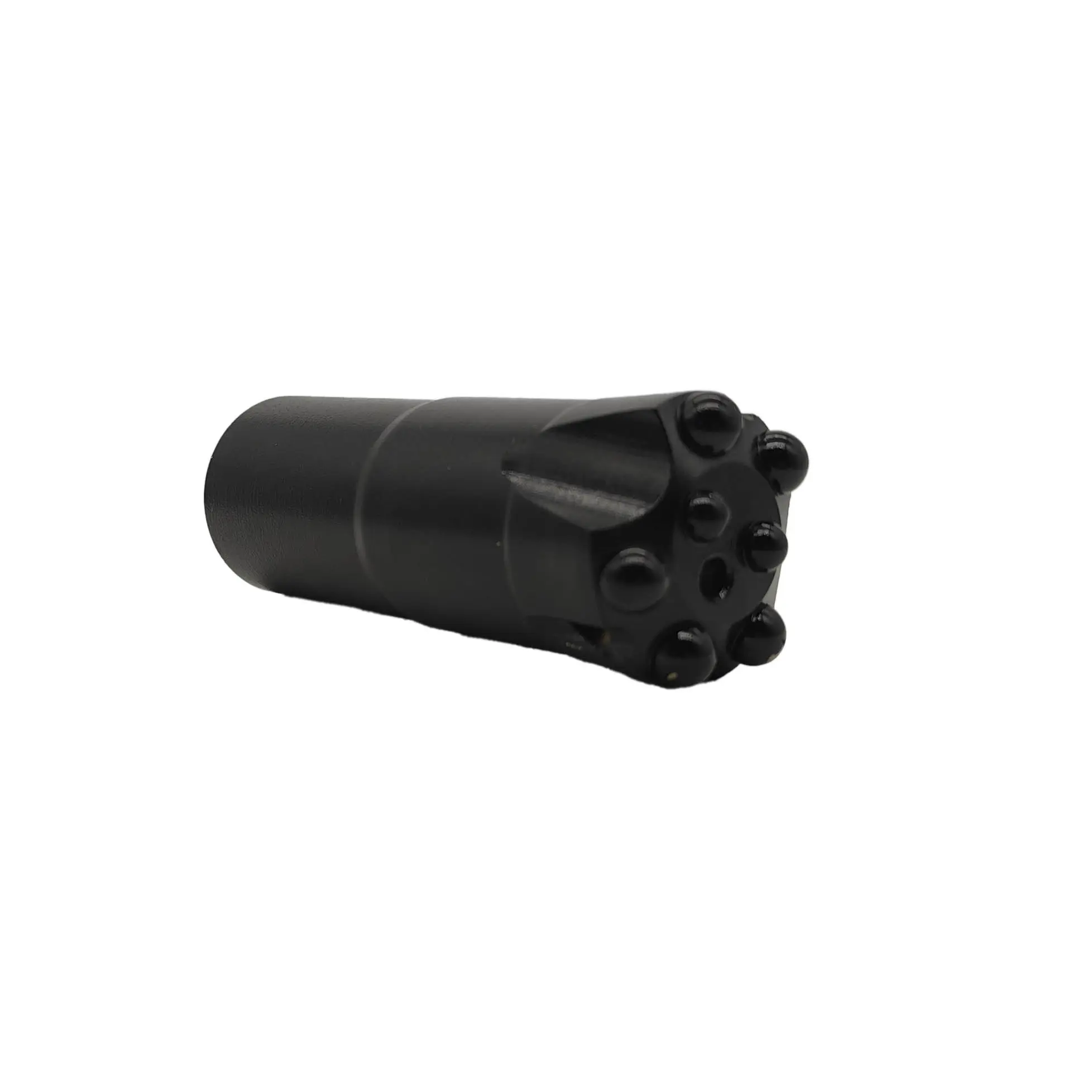

A3: Yes, our button and cross bits are designed with varying carbide configurations and body styles (standard and retrac) to optimize performance across different geological conditions.
A4: We maintain a high production capacity of approximately 50,000 pieces per month to ensure steady supply and timely delivery for large-scale projects.
A5: To prevent damage during transit, products are securely packed in either reinforced wooden cases or heavy-duty cartons depending on the order size and shipping method.
A6: Our cross bits are typically available in diameters ranging from 35mm to 57mm, though the broader drifting tool range supports diameters up to 127mm.
