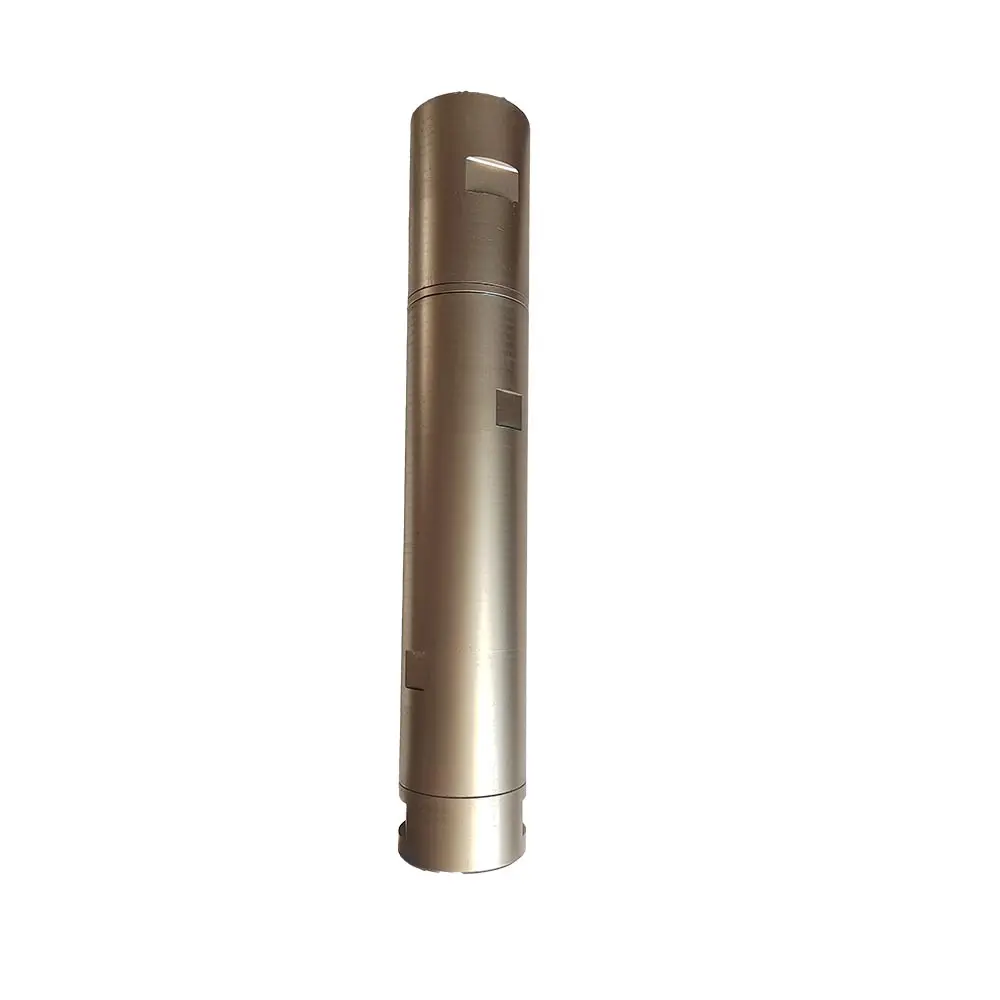

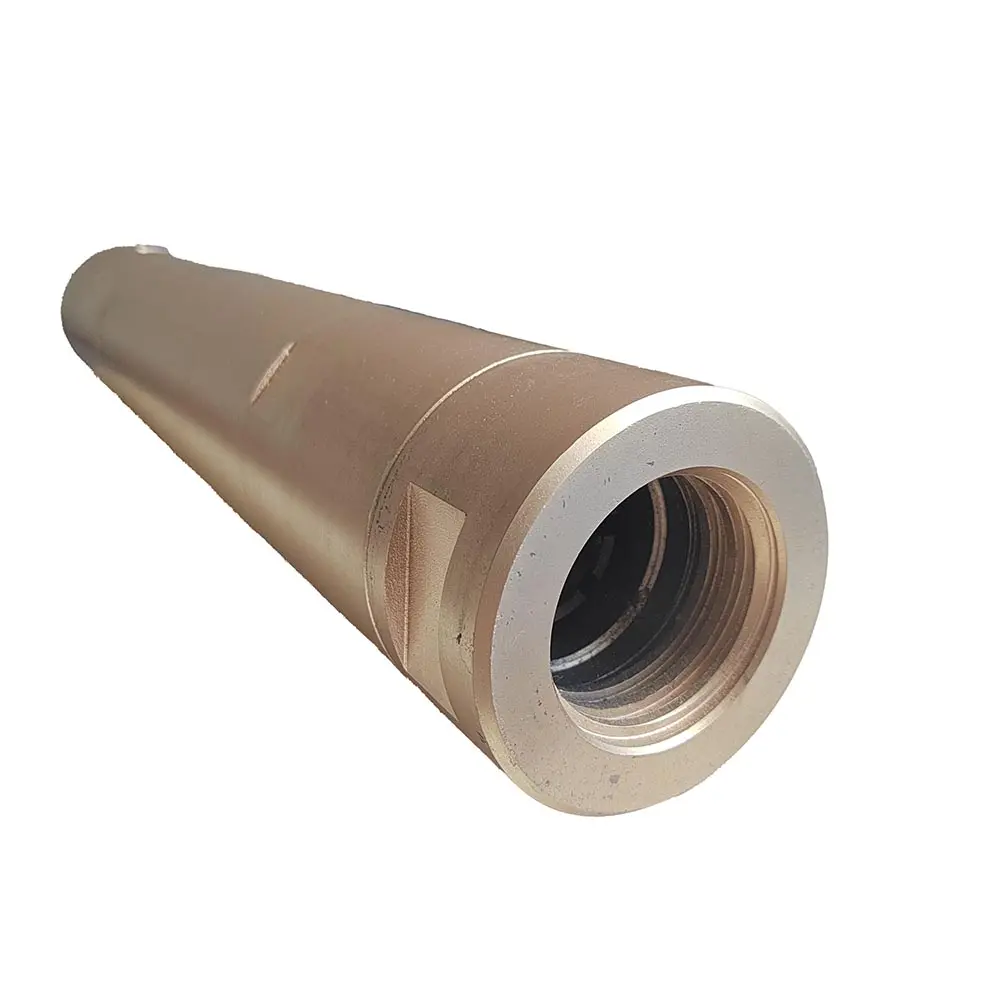

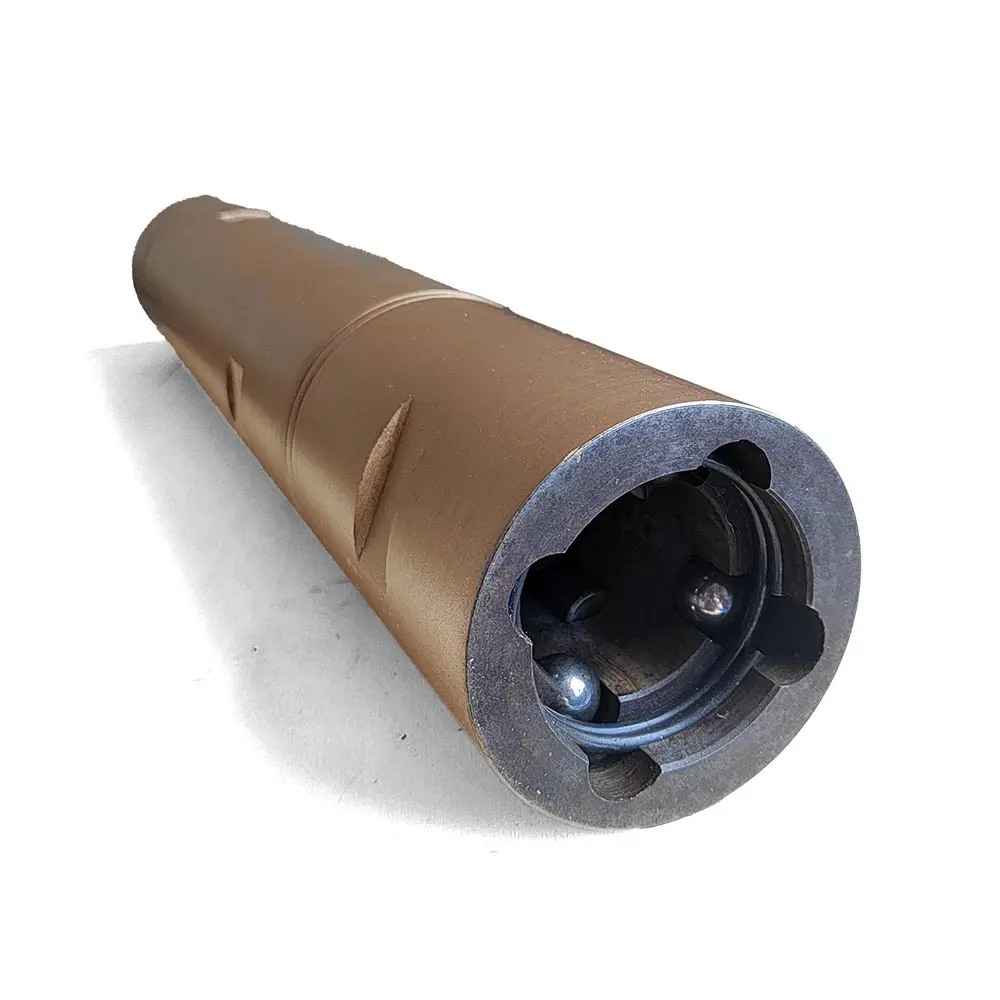

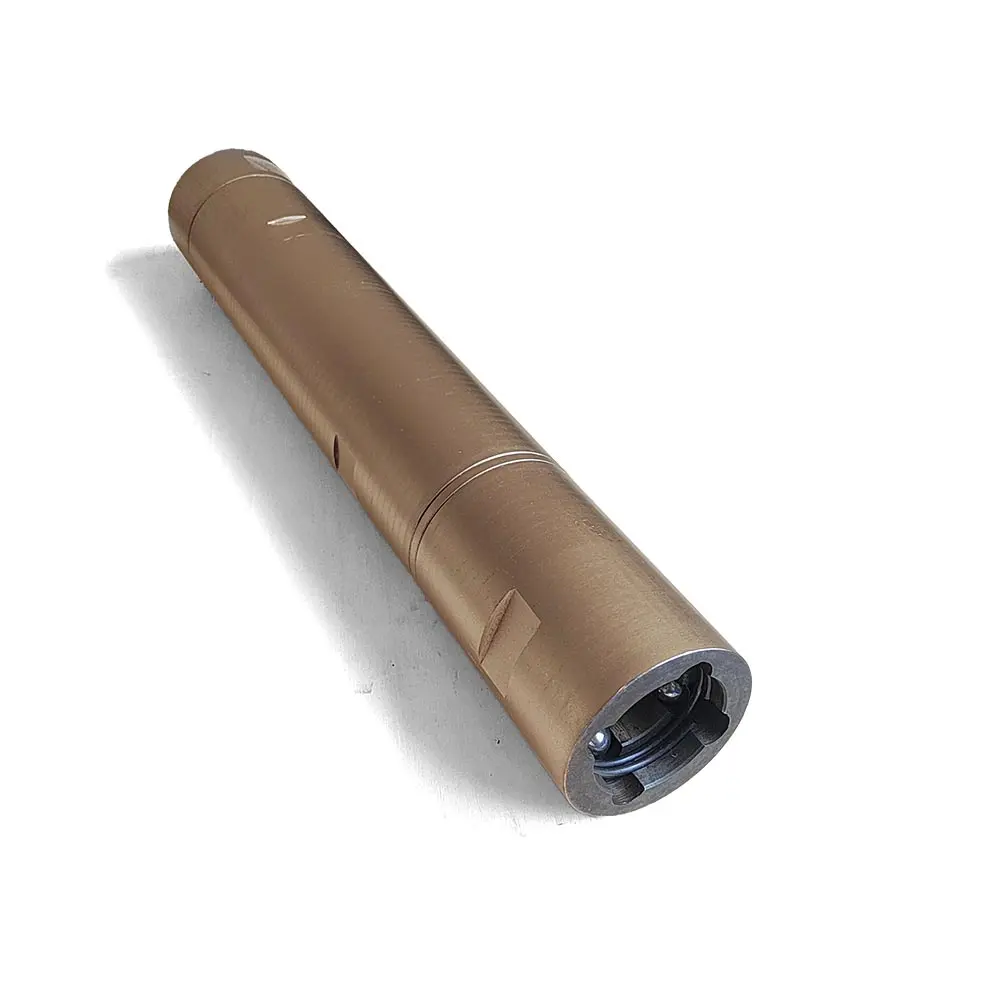

Low air pressure DTH hammer Russia type P130 bit shank jack hammer
A low air pressure DTH (Down-The-Hole) hammer is a specialized drilling tool used in mining, construction, and exploration activities. DTH hammers are designed to drill boreholes in rock formations by using a hammering action to break and crush the rock. The low air pressure DTH hammer operates on the principle of compressed air between 7-11 bar as the driving force.
It is called "low air pressure" because it uses lower air pressures compared to conventional high-pressure DTH hammers. Instead of relying on high-pressure air to power the drilling process, low air pressure hammers utilize a larger volume of air at lower pressure levels.
🌍
Russia type P130 hammer is a type of low air pressure hammer with bayonet coupling that widely used in Russia, Belarus, Kazakhstan, Ukraine etc for well drilling, quarrying, rock drilling project.
❓ Frequently Asked Questions
🔹 What is the primary function of the P130 DTH hammer?
The P130 DTH hammer is designed to drill boreholes in rock formations using a hammering action powered by compressed air, primarily for mining, quarrying, and construction projects.
🔹 What range of air pressure is required for operation?
This specific low air pressure model operates efficiently within an air pressure range of 0.5 to 0.7 Mpa (7-11 bar).
🔹 Which regions commonly utilize the P130 Russia type hammer?
It is widely used for well drilling and rock projects in Russia, Belarus, Kazakhstan, and Ukraine due to its specific bayonet coupling design.
🔹 What are the striking energy and impact rate of this tool?
The P130 hammer delivers a striking energy of 147 Joules with an impact rate of 20.8 HZ, ensuring effective rock crushing.
🔹 What size drill bits are compatible with the P130 hammer?
The hammer is compatible with Down The Hole (DTH) bits ranging from 125 mm to 130 mm in diameter.
🔹 How much does the hammer weigh without the bit?
The weight of the P130 hammer, excluding the drill bit, is approximately 32 kg, making it manageable for various drilling setups.
