China Numa180 Down The Hole Impactor DTH Hammer for Construction and Mining Factory, Quotes

1 / 5

China Numa180 Down The Hole Impactor DTH Hammer for Construction and Mining Factory, Quotes

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

NUMA180 Hammer

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Manufacturing Process

Stamping

Material

Carbon Steel

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Bit Adapter

Numa180

Outside Diameter

406mm

Weight

1464kg

Working Pressure

1.5-3.3MPa

📦 Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Package Gross Weight

5.000kg

Transport Package

Wooden Case

🛠️ Product Description

High air pressure DTH hammer is a kind of down-the-hole hammer. It is mainly used for percussive drilling in rock formation. It is characterized by high air pressure and high efficiency. It is suitable for use in areas with abundant air supply. The working principle is to use compressed air to drive the piston to reciprocate in the cylinder, generating impact energy to impact the drill bit.

✔Deliver maximum energy to drilling bit, fast drilling speed and low air consumption.

✔Smooth performance and long service life due to high quality alloy steel materials.

✔Low problem rate and easy to maintenance due to simple inner structure.

✔Easy to depart bit from hammer due to multihead thread connecting chuck.

🎯 Applications

🔹Water well drilling

🔹Bench drilling

🔹Mining / Mineral Exploration

🔹Oil well drilling

🔹Civil Engineering Applications

📊 Technical Specifications

Type	Model	Length (mm)	Weight (kg)	Ext. Dia (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
4 inch	SD4	1084	40.5	Φ99	Φ110-135
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
5 inch	SD5	1175	72.5	Φ125	Φ135-155
6 inch	DHD360	1248	100	Φ142	Φ155-190
6 inch	SD6	1261	100	Φ142	Φ155-190
8 inch	SD8	1463	192	Φ180	Φ195-254
8 inch	QL8	1465	182	Φ180	Φ195-254

🔍 DHD360 DTH Hammers Detailed Data

Hammer Length without bit	2162(mm)
Top sub thread	API 8 5/8"REG PIN
Outside diameter	406(mm)
Weight	1464(KG)
Bit diameter	450-600(mm)
Working Pressure	15-35(Bar)
Air consumption	63-85(M3/min)
Bit shank	NUMA180

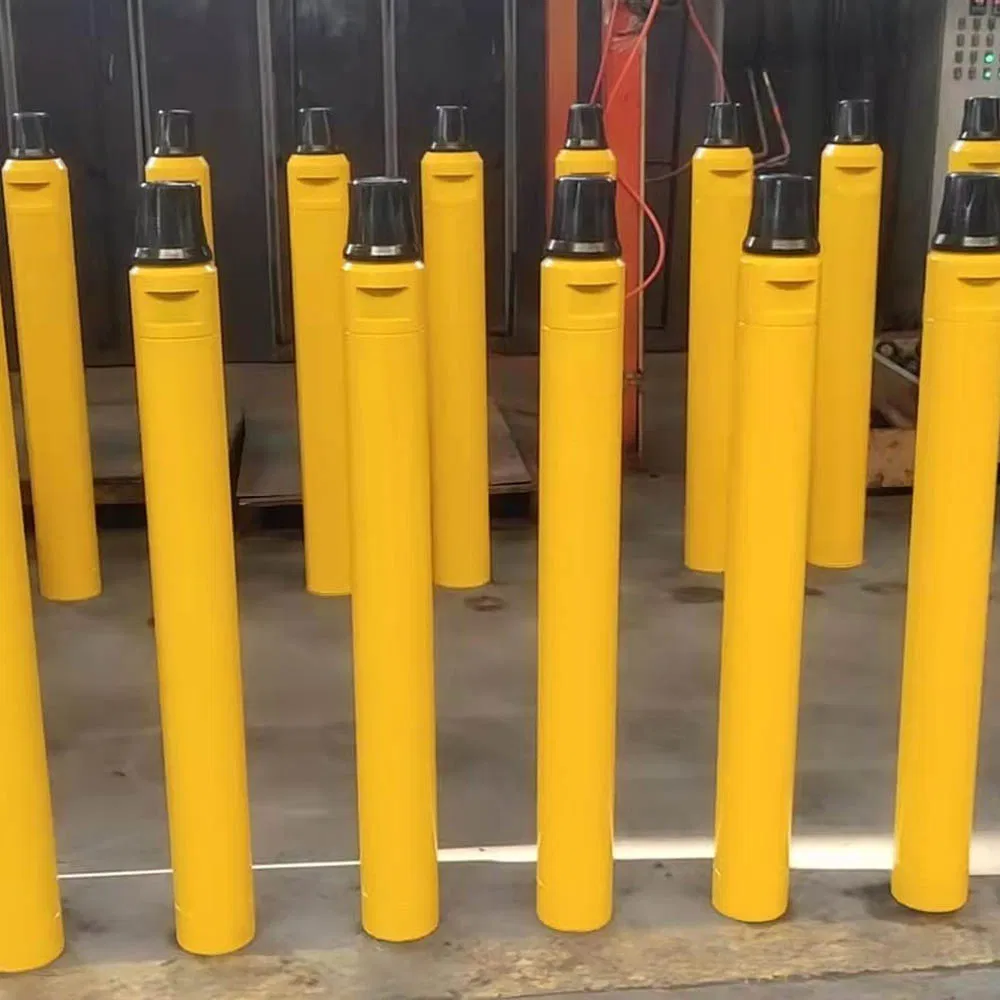

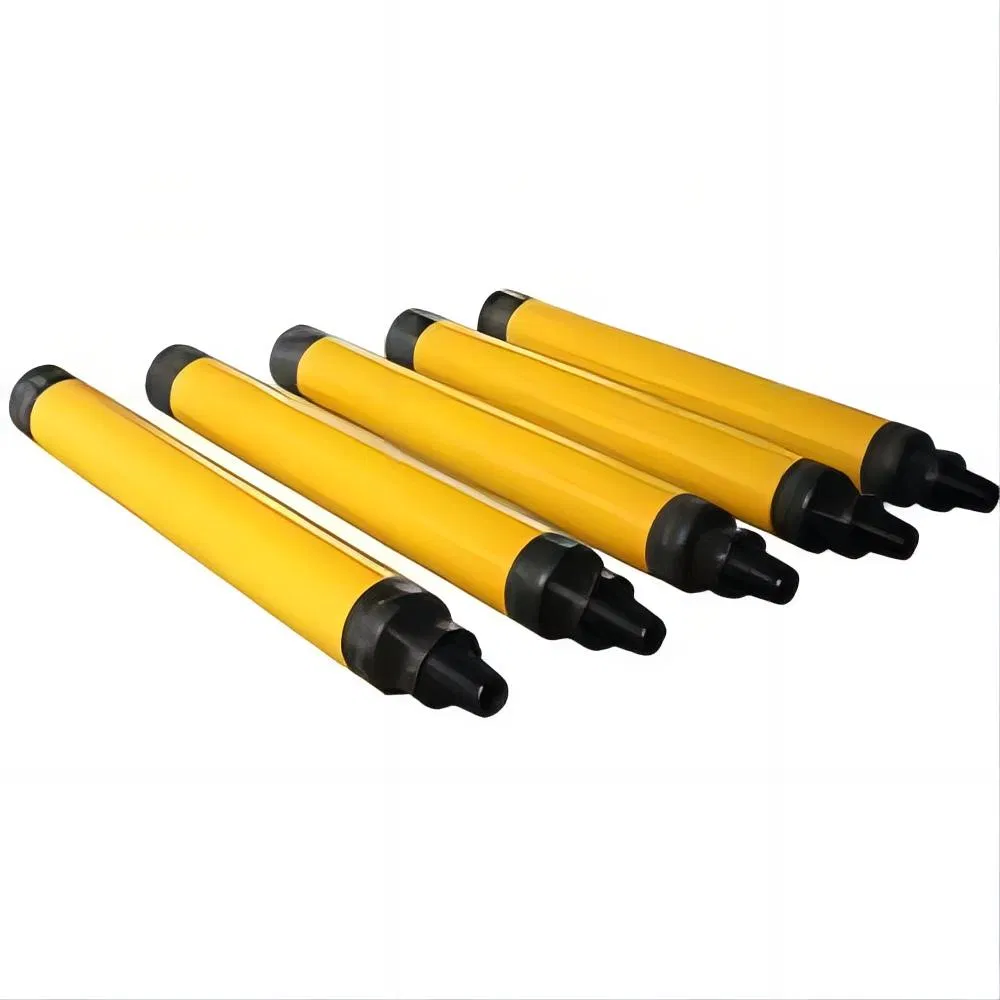

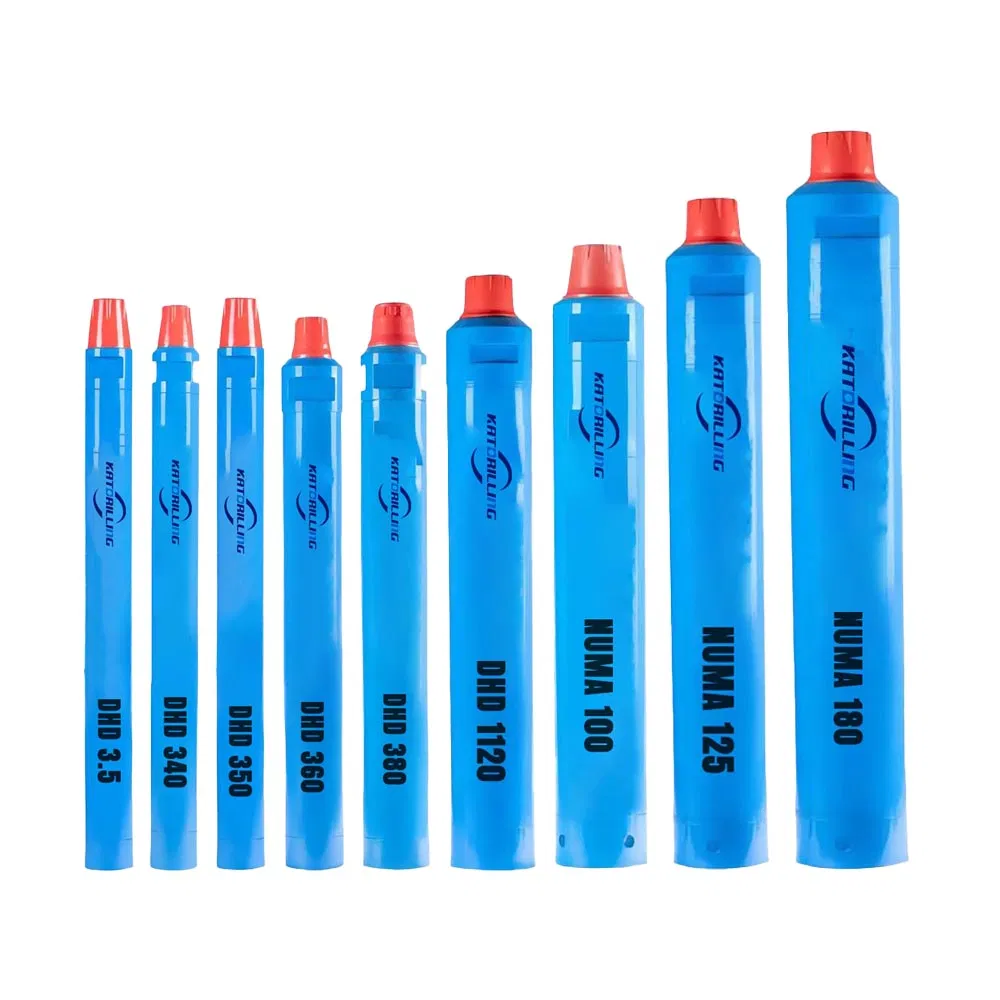

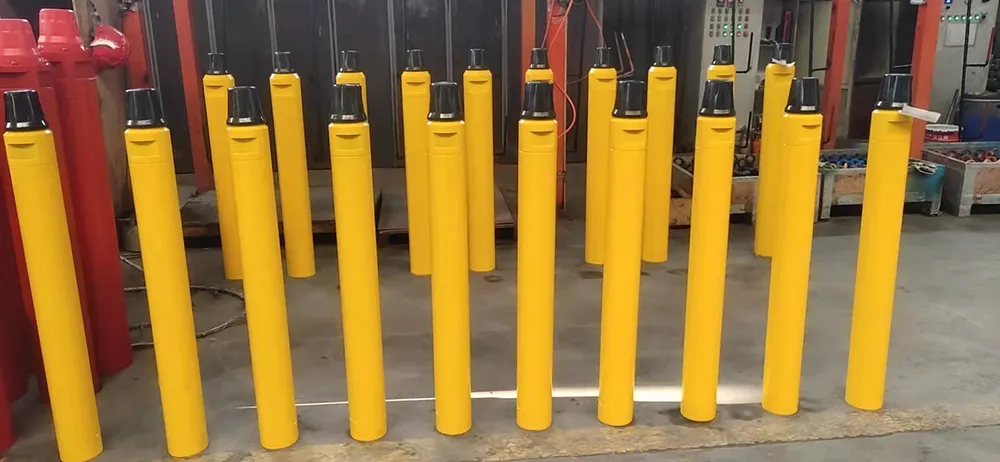

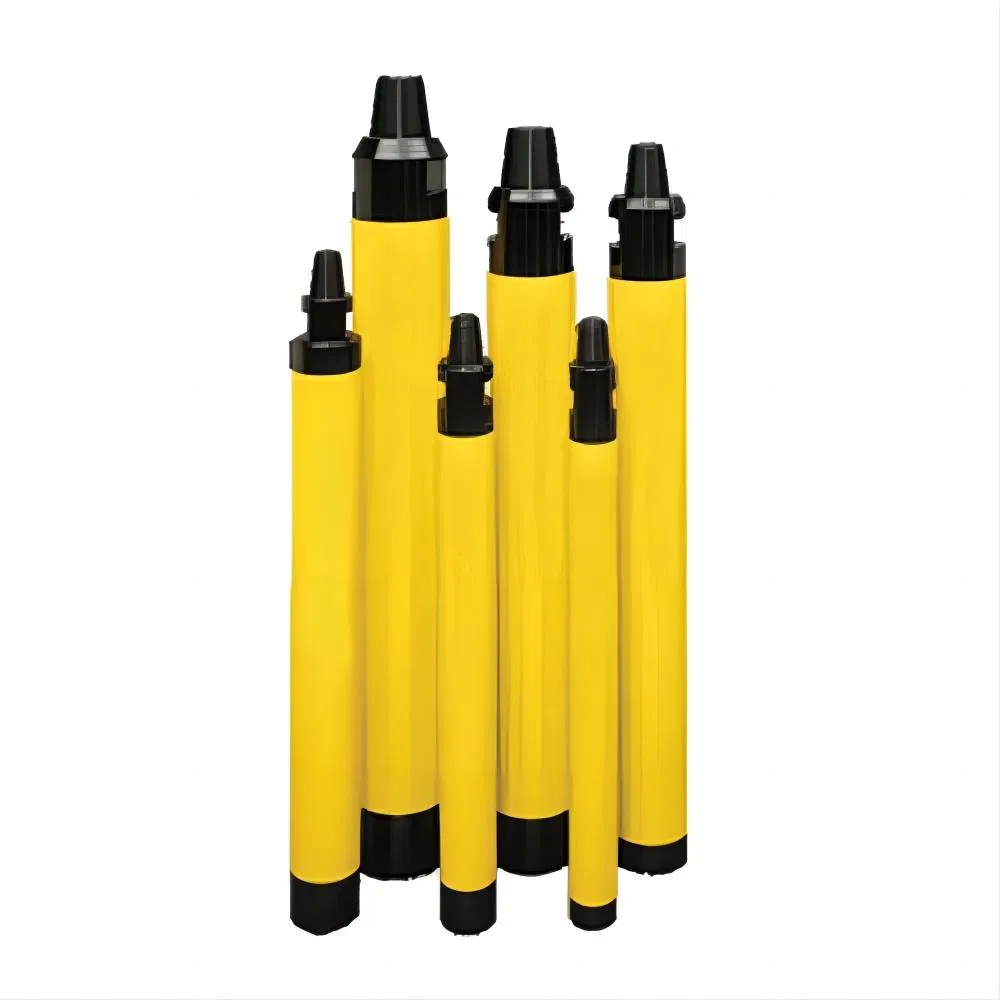

📸 Product & Detail Photos

🚢 Packaging & Shipping

❓ Frequently Asked Questions

Q1: What methods of payment do you accept? We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.

Q2: How long is the delivery time for an order? Based on order quantity, it normally takes 25 days for production. If the requested size is in stock, it only takes 2 to 3 days.

Q3: What are the available shipping ways? For sample orders, we suggest courier express (DHL/UPS/TNT/FEDEX) or air. For bulk orders, we suggest shipping by air or sea.

Q4: How do you ensure product quality? We have our own experienced QC team. There will be strict inspection and testing for every order before shipping out.

Q5: What kind of after-sales service is provided? Our sales team responds within 24 hours. Technical support is available at any time, and free replacements are provided for confirmed quality failures.

Q6: Are your DTH hammers interchangeable with other brands? Yes, our hammers are designed to be interchangeable with standard DTH bits and drill pipes available in the market.
