China H22 Forging Type Carburized Blast Hole Tapered Rock Drill Rods Factory, Factories

1 / 5

China H22 Forging Type Carburized Blast Hole Tapered Rock Drill Rods Factory, Factories

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Info

Model NO.

tapered drill rod

Certification

ISO 9001:2000, ISO 9001:2008

Standard

Surface Treatment

Spray-Paint

Manufacturing Process

Forging

Material

Carbon Steel

Degree

7/11/12

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Material Quality

95crmo, 55simnmo, 40simncrnimo, 23crni3mo, D6a

HS Code

82071990

Production Capacity

500,000 PCS/Month

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Package Gross Weight

5.000kg

Transport Package

Wooden Case

Product Description

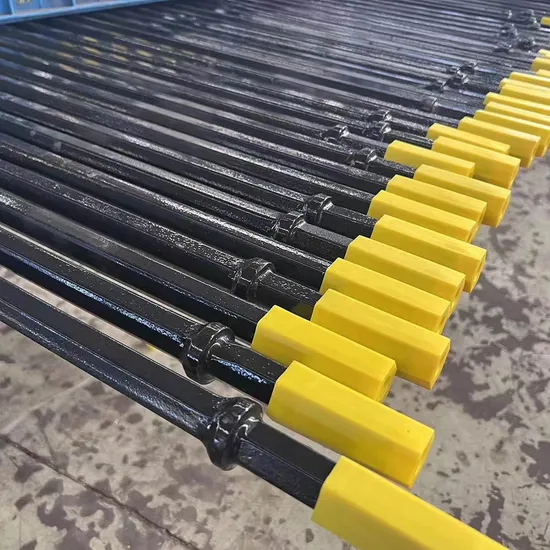

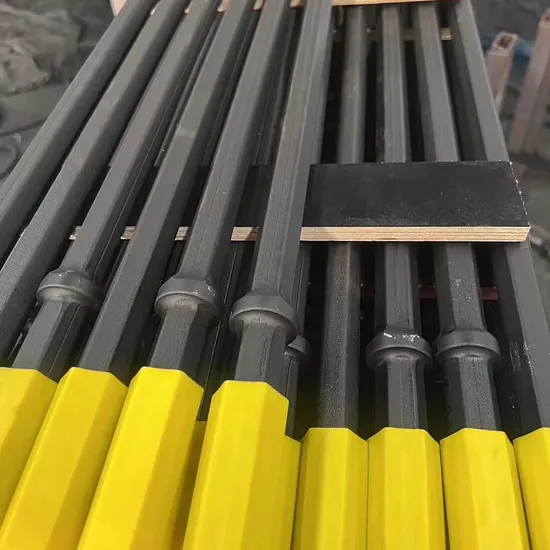

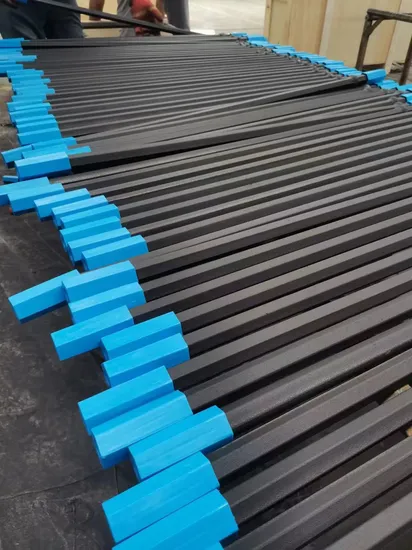

Taper drill rod is widely used for rock drilling, blasting holes, and other drilling applications in quarries, coal mines, and infrastructure construction. It works seamlessly with taper drill bits and is available in various lengths.

Generally, light-duty rock drills utilize a 7° taper or smaller, while heavy-duty rock drills primarily use 11° or 12° taper angles. It is essential that the tapered rods and drill bits share the same degree for optimal performance. We provide tapered rods in a full range of shank configurations and steel hex diameters for hand-held pneumatic drilling needs.

Steel Grade: 95CrMo (equivalent to SANDBAR20, C253, Z708, Sanbar23) or 55SiMnMo.
Shank Sizes: Hex 22mm × 108mm, 22mm × 159mm, 22mm × 80mm, 25mm × 108mm, 25mm × 159mm.
Taper Degrees: 4°46', 6°, 7°, 11°, 12°, etc.
Length Range: 0.4m - 10m.
Flushing Hole: 6.7mm diameter.

ROD CROSS SECTION	Length (mm)	Length (foot/inch)	Weight approx. (kg)
4°46' Taper Angle
22H	800	2'7½"	2.8
22H	1600	5'3"	5.3
22H	2000	6'6¾"	6.5
22H	4000	13'1½"	12.7
7° Taper Angle
22H	400	1'3¾"	1.6
22H	1830	6'	6.0
22H	3050	10'	9.7
22H	8000	26'3"	24.9
11° Taper Angle
22H	1220	4'	4.1
22H	1830	6'	6.0
22H	3655	11'11⅝"	11.6
22H	7200	23'7½"	22.5
12° Taper Angle
22H	610	2'	2.2
22H	2435	8'	7.8
22H	3965	13'	12.5
22H	8000	26'3"	24.9

Frequently Asked Questions

What are the primary uses for tapered drill rods?

Tapered drill rods are primarily used for rock drilling, creating blasting holes, and other pneumatic drilling tasks in mining, quarrying, and construction projects.

How do I choose the right taper angle for my project?

Light-duty rock drills typically use a 7° or smaller taper angle, while heavy-duty equipment generally requires an 11° or 12° taper angle. Ensure your drill bits match the rod's taper degree.

What materials are these drill rods made of?

They are manufactured from high-quality carbon steel and alloys such as 95CrMo, 55SiMnMo, and 40Simncrnimo to ensure durability and resistance to wear.

What are the standard shank sizes available?

Standard shank sizes include Hex 22mm (7/8") and Hex 25mm (1"), with lengths varying from 80mm to 159mm to fit different pneumatic tools.

What is the production capacity and packaging for shipping?

We have a production capacity of 500,000 pieces per month. Products are securely packed in wooden cases or bundles to prevent damage during international transport.

Can I get different lengths of tapered rods?

Yes, we provide tapered rods in a full range of lengths starting from 0.4 meters up to 10 meters to suit various drilling depths.
