P110 and P130 Bayonet Russia Type DTH drill bits:

P-110: 105mm, 110mm (both bayonet and spline connection, drop center, spherical or semiballistic buttons), with buttons and chisel 4 blade bit for P-110.
P130: 130mm, 140mm, 150mm, 160mm (130-140mm - drop center, spherical buttons, 150-160 flat, spherical buttons).

Send Inquiry

Product Description

Product Detail

P110 and P130 Bayonet Russia Type DTH drill bits:

P-110: 105mm, 110mm (both bayonet and spline connection, drop center, spherical or semiballistic buttons), with buttons and chisel 4 blade bit for P-110.

P130: 130mm, 140mm, 150mm, 160mm (130-140mm - drop center, spherical buttons, 150-160 flat, spherical buttons).

Russia type P110 and P130 hammer is a type of low air pressure hammer with bayonet coupling that widely used in Russia, Belarus, Kazakhstan, Ukraine etc for well drilling, quarrying, rock drilling project.

The DTH drill bits we produce have a longer service life.

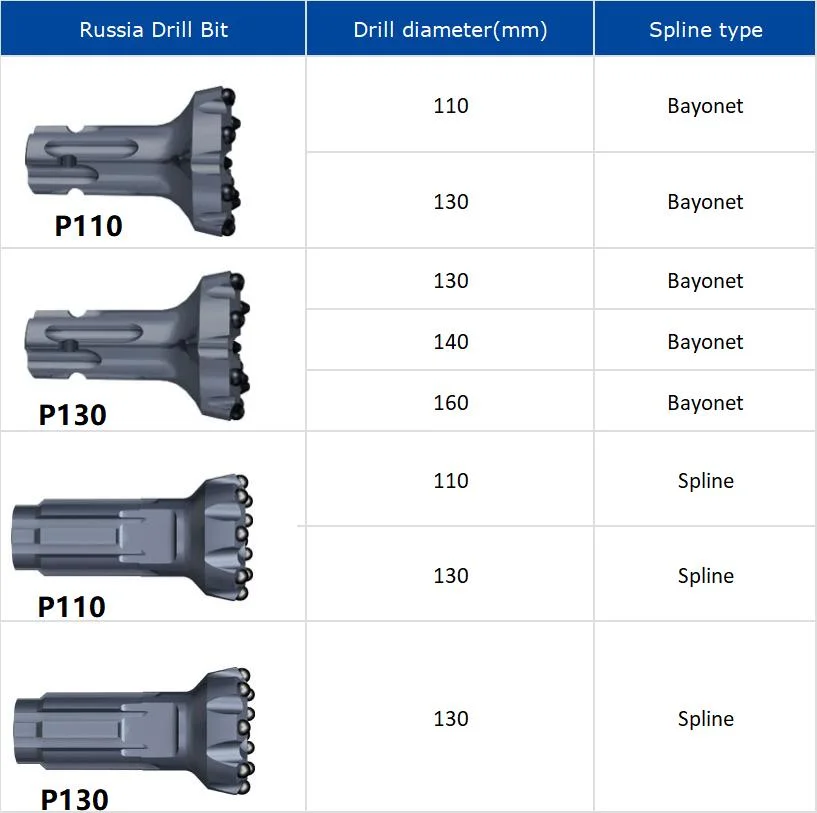

Low-Air-Pressure-130mm-Button-Bits-P130-Shank-Hammer-Russia-Type-DTH-Bits

Frequently Asked Questions

1. What are the main applications for Russia Type P110 and P130 DTH bits?

These bits are specifically designed for water well drilling, quarrying, and various rock drilling projects, particularly in regions like Russia, Belarus, Kazakhstan, and Ukraine.

2. What connection types are available for the P-110 drill bit?

The P-110 model supports both bayonet and spline connections, providing flexibility for different hammer configurations.

3. What are the head design differences in the P130 series?

For P130 bits, the 130-140mm sizes feature a drop center with spherical buttons, while the 150-160mm sizes utilize a flat face design with spherical buttons.

4. Are these bits suitable for low-pressure systems?

Yes, the P110 and P130 series are engineered as low air pressure hammers with bayonet couplings, optimized for specific operational environments.

5. What makes your DTH drill bits different from others?

Our DTH drill bits are manufactured using premium materials and processes to ensure a significantly longer service life and higher drilling efficiency.

6. What button shapes are available for the P-110 model?

The P-110 model offers both spherical and semi-ballistic buttons, as well as a chisel 4-blade bit option depending on the rock hardness and drilling requirements.
