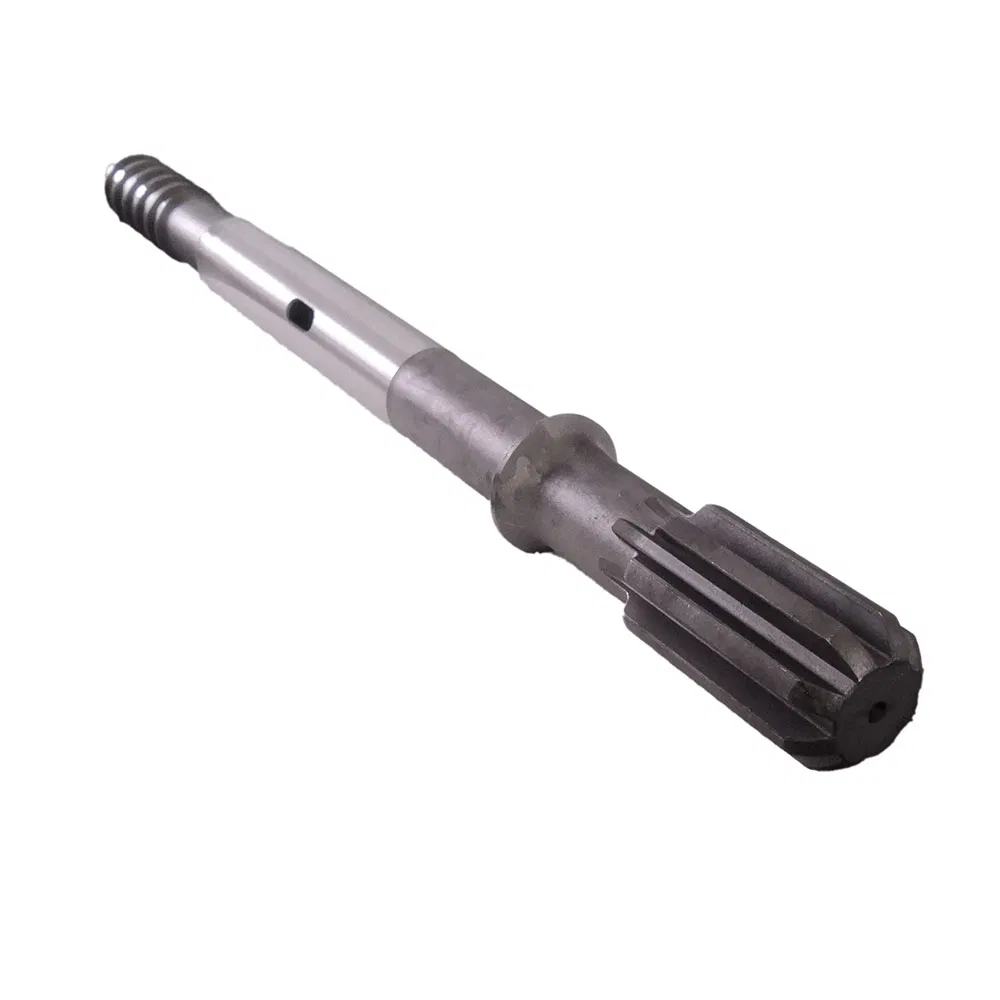

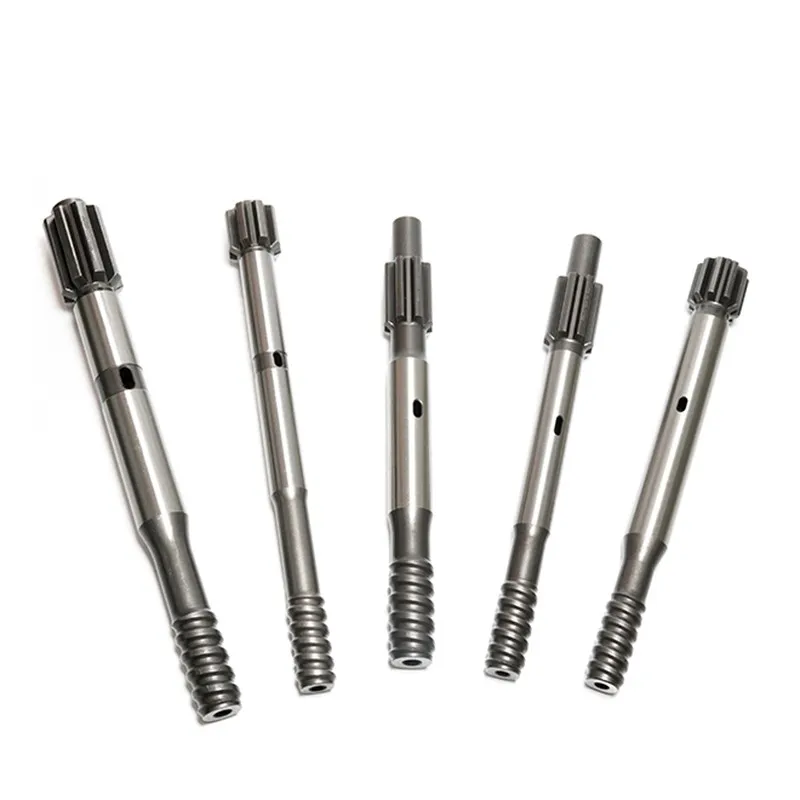

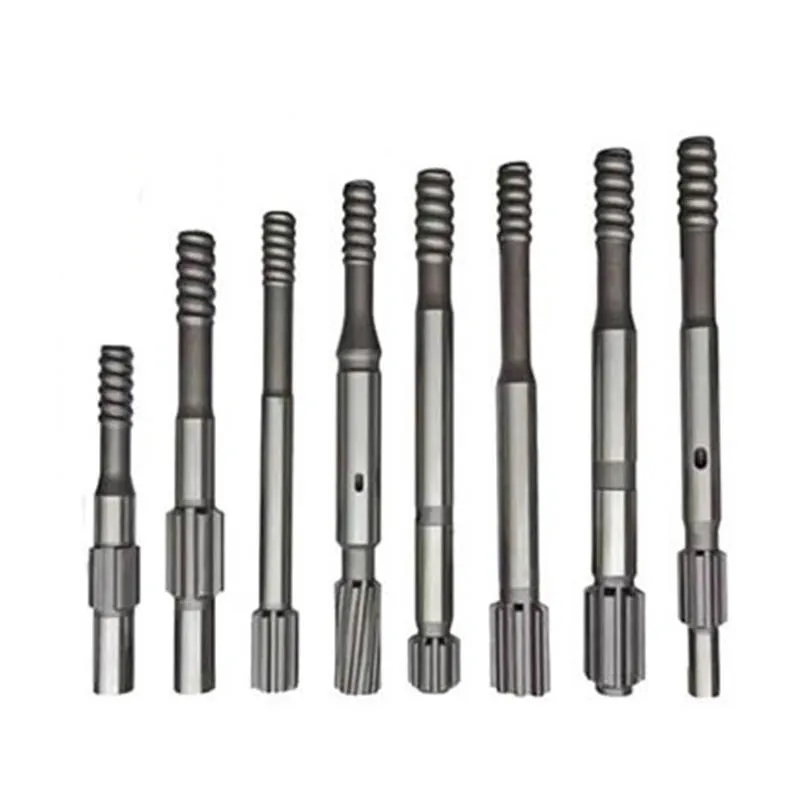

Rock drilling tools manufacturer produces shank adapters for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. Thus ensure them with superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. While female shank adapters are used when the drilling space is limited and the total feed length is important, for example underground roof bolting.
Shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through carburizing. Around 300 different shank adapters suitable for different rock drills are currently available from major series drifters.
| Adapted Models & Customization | |
|---|---|

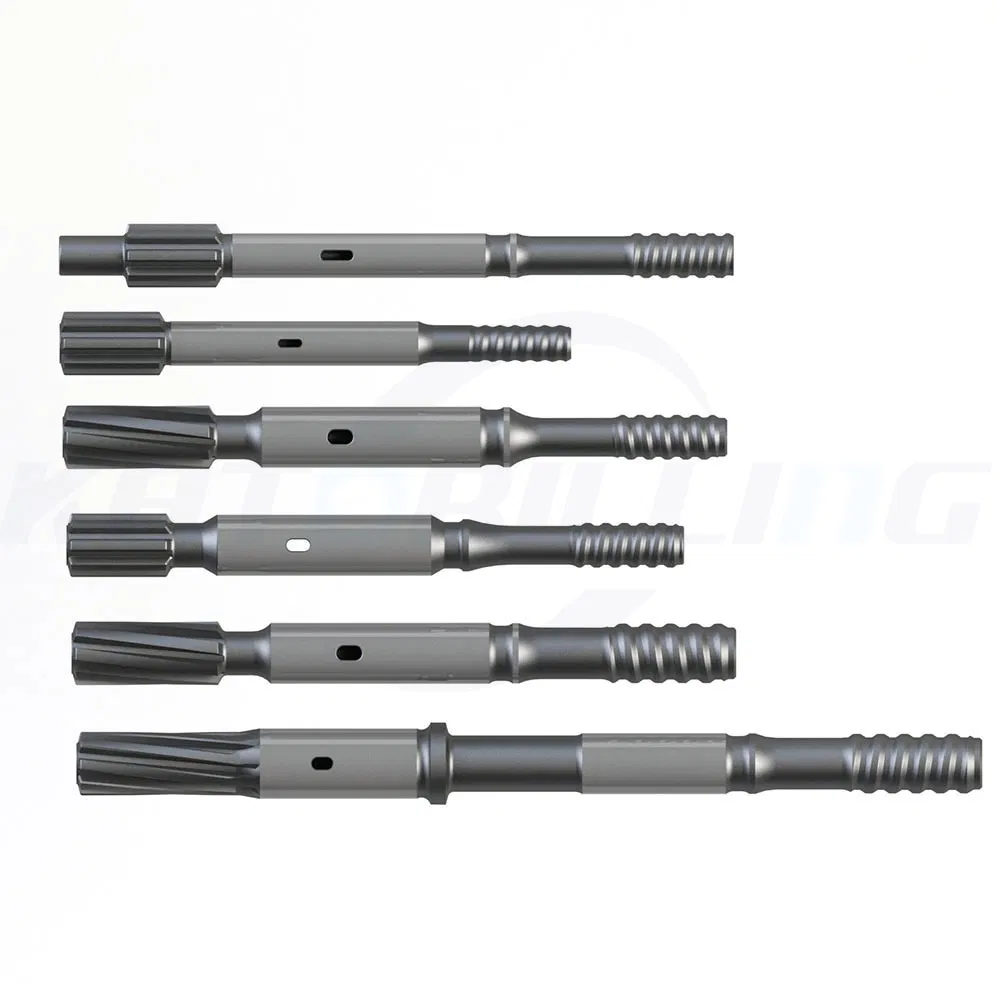

| Atlas Copco | vl140, bbc42, bbc44, bbc100, bbc54, bbc120, cop125, cop130, cop131, cop131EB, cop628, cop925, cop928, cop932, cop938, cop1028, cop1028hb, cop1032, cop1036, cop1038, cop1238, copbr11, cop1132, coprr11, cop1140, copsc14, coprr14, cop1240, cop1640, cop1840, cop1850, cop2150, cop2550, COP SC16, SC19, SC 25-HF, COP 1240EX, 1640EX, 1840EX, 1850EX, 2150EX, 2550EX, COP SC19X, SC 25X-HF, cop1432, cop1532, COP 1135, cop1435, RD14S, rD18S, RD22S, RD14U, RD18U, RD22U, RD8, cop1440, cop1550, cop1638, cop1838, cop2238, copmd20, cop1838aw, COP 1838EX, 1838MUX/HUX, 1550EX, COP 2160EX, 2560EX, COP 2550UX, cop3038, cop4038, COP 3060ME, COP 3060MUX, COP 4050MUX |

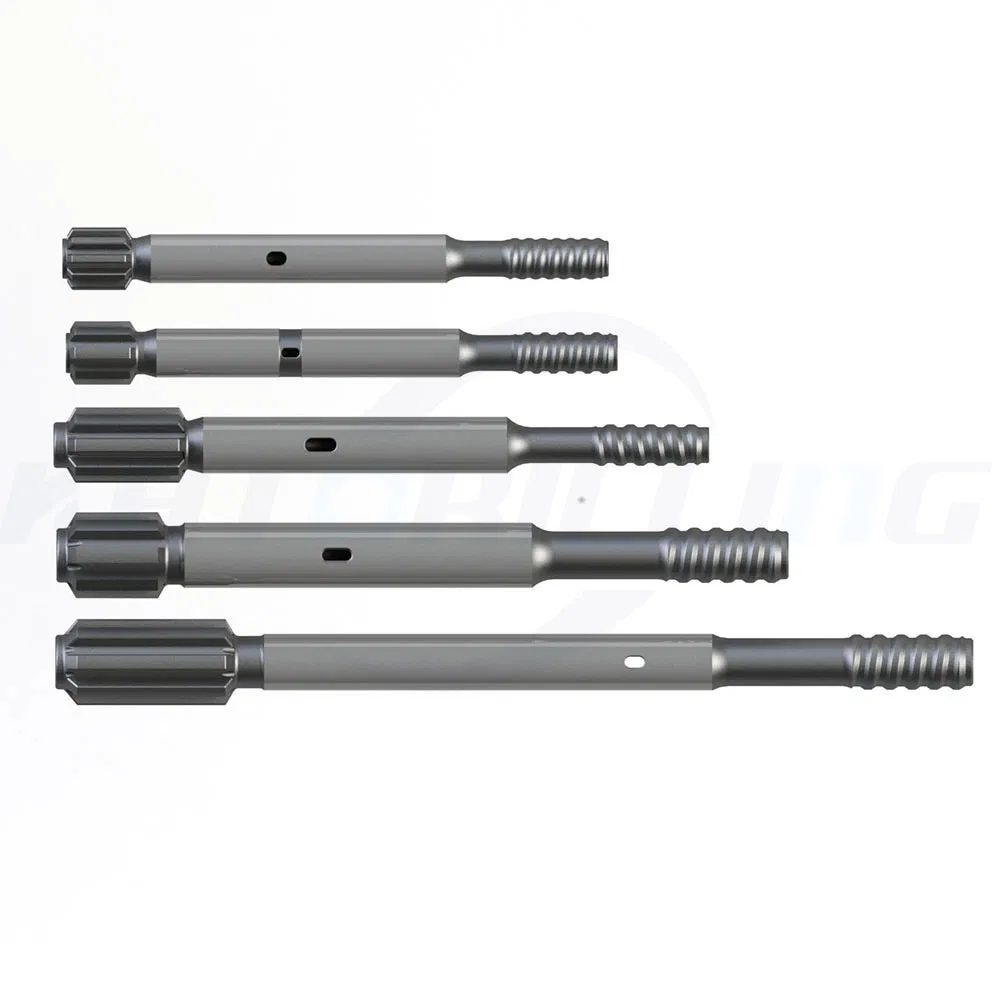

| Tamrock | HLX 1, RD106, HL300, RD308, RD314, RD414, HLX5, HLX5T, HFX5T, RDX5, HLX5 PE, RDX5 PE, RD520 PE, RD525 PE, RD535 PE, HLR438LS, HL500, HL510, HL538L, HL550S, HL500S, HL510S, HL510B, HL510LH, HL600, HL600S, HL650, HL700, HL710, HL800T, HL810T, HF810T, HL820T, HF820T, HL710 PE, HL1000, HL1000S, HL1010, HL1010S, HL1060T, HL1560T, HL1500T |

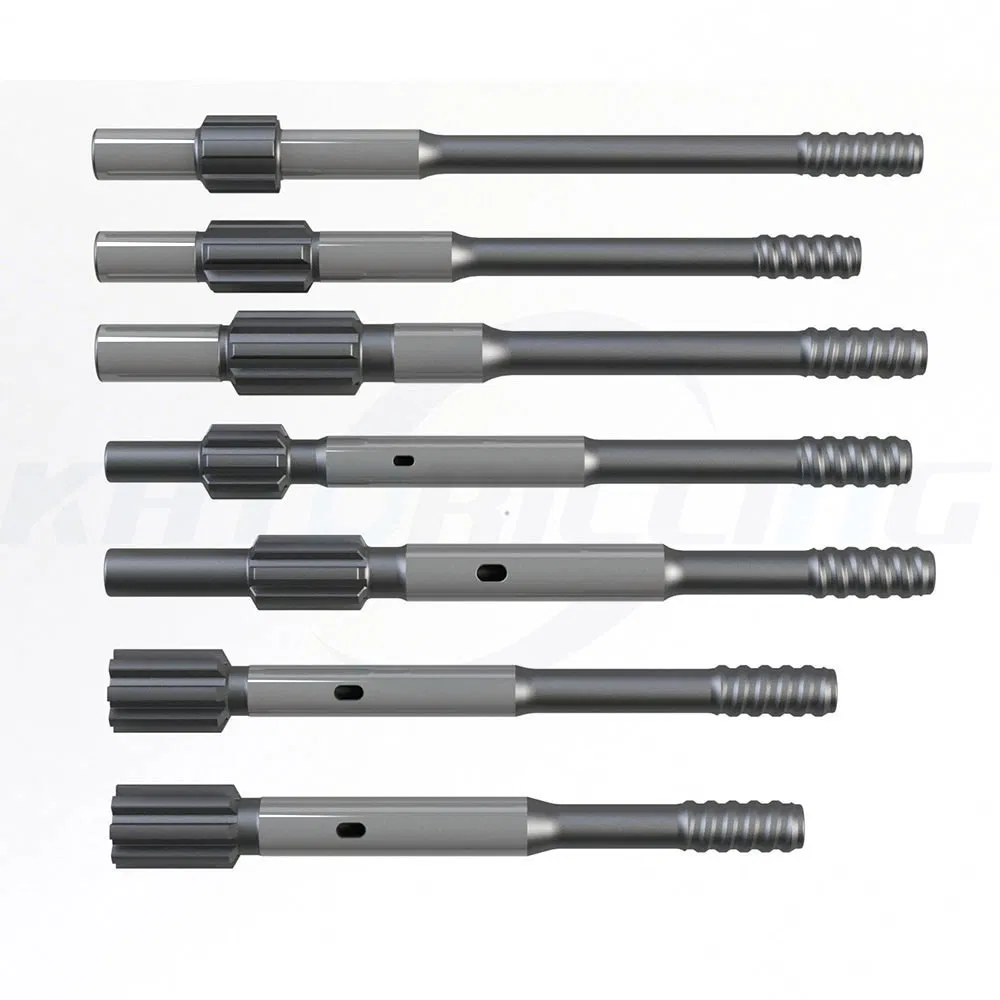

| Furukawa | HD 200, M 120, HD 260, HD 300, HD 500, HD 609, HD 612, HD 615, HD 709, HD 712, HD 715, HD 822 QED, 826 QED, HD 836, PD 200R |

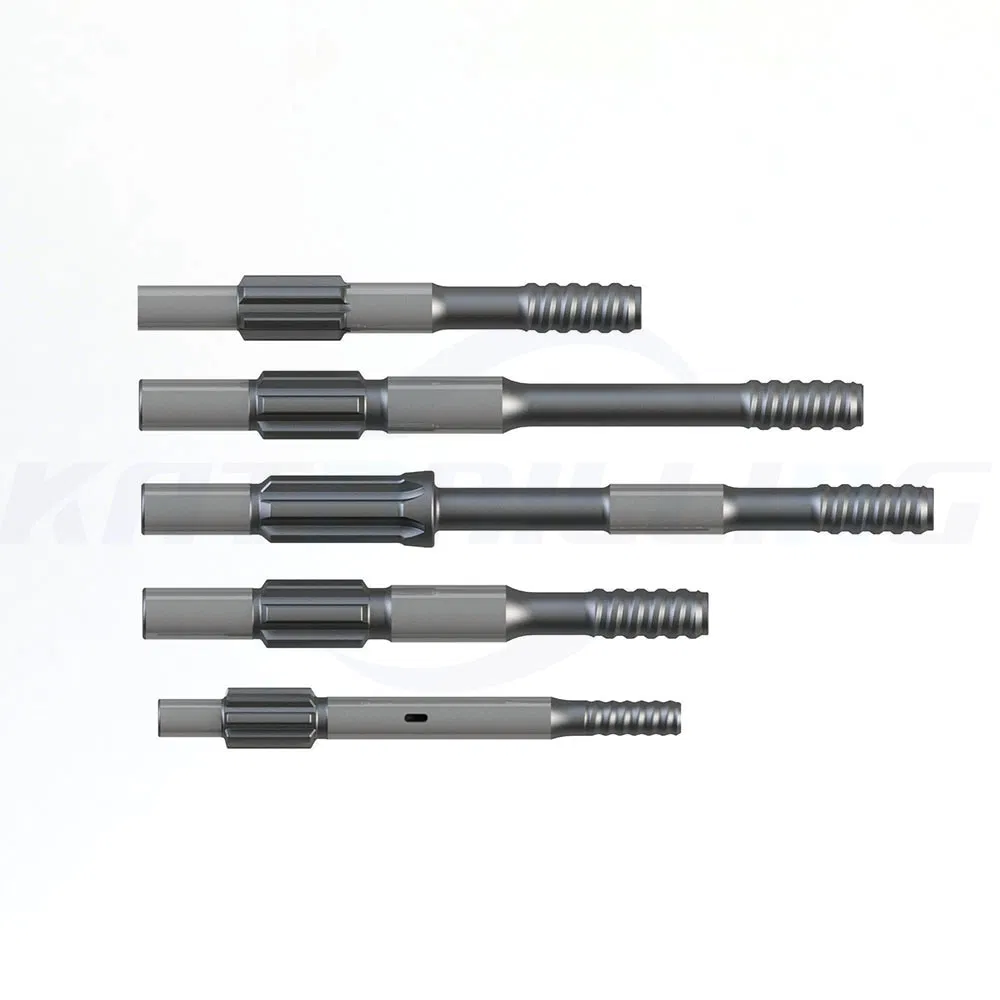

| Ingersoll-Rand | Hydrastar 200, VL 120, VL 140, EVL 130, YD 90 M, YH 65, YH 70, LM 500, YH 80A, YH 65 RP, YH 80A RP, YH 95 RP, YH 100 RP, YH 110 V, YH 135 |

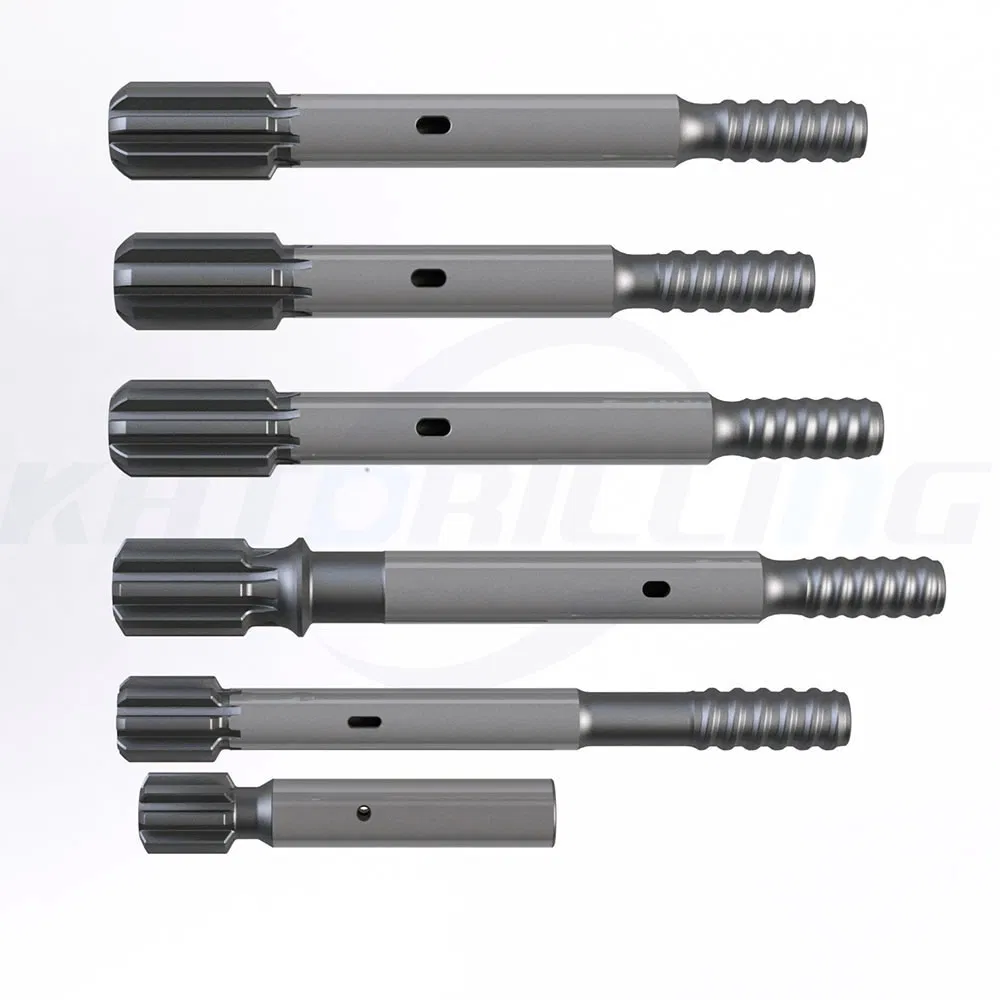

| Montabert | HC 20, hc25, hc40, hc50, hc80, hc120, hc90, hc105, HC 80 RP, HC 105 RP, HC 107 RP, HC 108 RP, HC 109 RP, HC 110 RP, HC 120 RP, HC 150 RP, HC 155 RP, HC 158 RP, hc109, hc160, hc170, hc95, hc200 |
| THREAD | OVERALL LENGTH (L) | FRONT END DIAMETER | ||
|---|---|---|---|---|
| mm | In. | mm | In. | |
| T38 | 670 | 26.38 | 45 | 1.75 |
| T45 | 670 | 26.38 | 45 | 1.75 |
| T45 | 771 | 30.35 | 45 | 1.75 |
