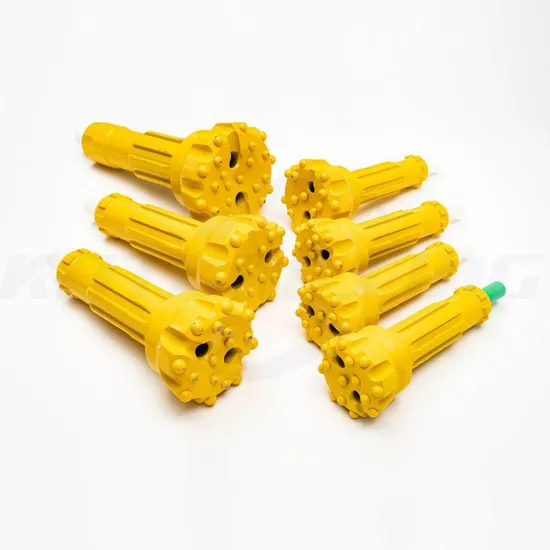

China CIR65 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Quotes

1 / 5

China CIR65 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Quotes

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Information

Model NO.

CIR65

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Manufacturing Process

Stamping

Material

Carbon Steel

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Bit Shank

CIR65

Diameter

65-68mm

Origin

China

Production Capacity

500000PCS/Month

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport Package

Wooden Case

Product Description

Because of economy and powerful drilling capacity, down the hole hammer become an advanced drilling tool for drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, giving high penetration rates, long service life and low costs.

Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to special inner structure.
Smooth performance and long service life due to high quality alloy steel materials and advanced processing technology.
Low problem rate and easy maintenance due to simple, reliable inner structure.
Easy to depart bit from hammer due to multihead thread connecting chuck.
Interchangeable with DTH bit and drill pipe.

High pressure drilling rigs Water well drilling Bench drilling Mining / Mineral Exploration Oil well drilling Civil Engineering

CIR65 Technical Data

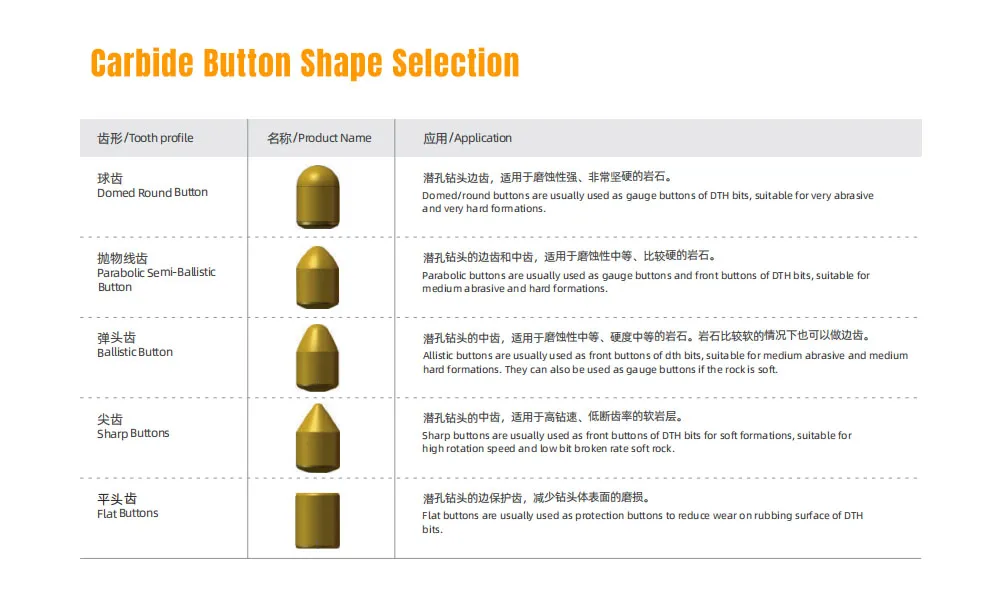

Head Shape	Head Diameter(mm)	Shank length	Spline	Port holes	Button type	Gauge Buttons	Front buttons	Weight(Kg)
Flat Face	65	105	4	2	Spherical	4XØ12	2XØ12	1.5
Flat Face	68	105	4	2	Spherical	4XØ12	2XØ12	1.6

Available DTH Bit Shanks

1) Dia. 64mm-70mm shank Bulroc BR1
2) Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3) Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4) Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5) Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6) Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7) Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8) Dia. 254mm-380mm shank SD10, Numa100
9) Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10) Dia. 405mm-864mm shank SD15, SD18
11) VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...
