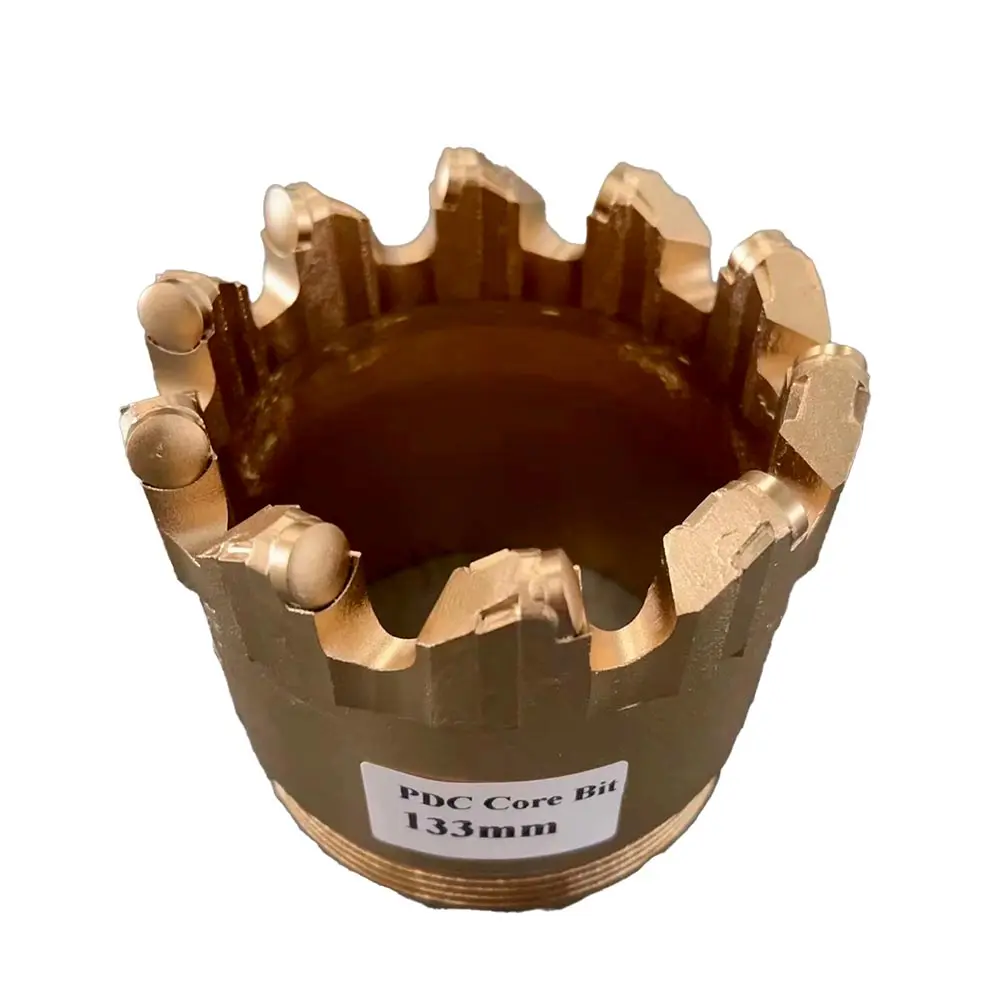

China PDC Cutters Core Drill Bit 133mm Manufacturers, Quotes

1.Suitable for soft, medium and hard formations.

2.Super strong material promotes gauge wear resistance to provide long bit life.

3.PDC cutter can improve the life and shield the risk of complex formation drill not passed.

4.Drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth.

Product Description

PDC Core Drill Bit Features

Suitable for soft, medium, and hard geological formations.
Super strong material promotes gauge wear resistance for extended life.
PDC cutter technology reduces risks in complex formation drilling.
Dynamic and hydraulic balance design ensures a smoother drilling process.

Product Specifications

PDC Core Drill Bit Details
Machine TypeDrilling Tool
ApplicationWater Well Drilling, Geological Exploration
Size Range75 mm, 93 mm, 112 mm, 132 mm, etc. (3" to 16")
Raw MaterialDiamond and Steel
ProcessWelding
Production Capacity50,000 Units / Month
PackagingCarton or Wooden Case
Thread Length30mm, 40mm
Available ColorsBlue, Yellow, Gold, Black, Red, etc.
CustomizationAvailable upon request

Detailed Size Chart

Size (mm) Imperial Core Pipe Casing Size Height Weight
75mm3"73mm120mm1kg
93mm3 3/4"89mm120mm1.22kg
112mm4 1/2"108mm120mm1.54kg
132mm5 1/8"127mm120mm1.8kg
152mm6"146mm120mm2.06kg

Product Gallery

Frequently Asked Questions

Q1: Which types of formations are these bits suitable for?
Our PDC core drill bits are designed to perform efficiently in soft, medium, and hard geological formations.
Q2: What materials are used in the construction of these drill bits?
The bits are manufactured using high-quality diamond and premium steel, ensuring maximum durability and performance.
Q3: Are custom colors or sizes available?
Yes, we offer customization. You can choose from various colors like blue, yellow, gold, black, or red, and we can adjust sizes based on your project needs.
Q4: What are the primary applications for these PDC core bits?
They are primarily used for water well drilling and geological exploration projects.
Q5: How are the products packaged for shipping?
To ensure safe delivery, the products are packed in sturdy cartons or specialized wooden cases depending on the size and quantity.
Q6: What is the monthly production capacity?
We maintain a high production capacity of up to 50,000 units per month to meet large-scale industrial demands.
